7.4 Spare-parts list
| Only parts with item numbers are available.
– The item numbers are only valid for the standard design.
| Please include the following information with the order:
– Order number of the brake
– Position number of the spare part
13
6
27
3
4
14
10
1

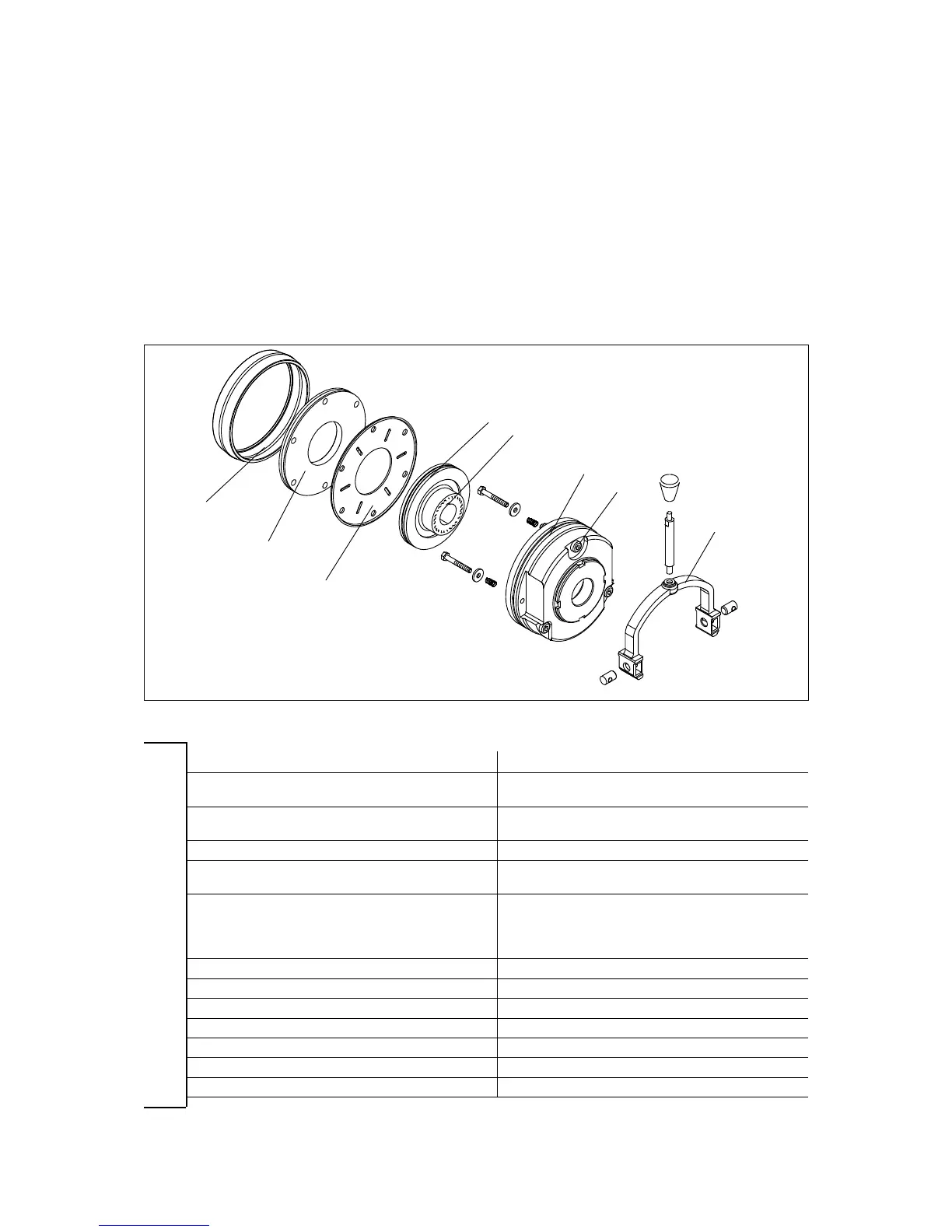

Fig. 22 Spring-applied brake INTORQ BFK458-06 to 25
Pos. Designation Variant
1 Complete stator, module E
Complete stator, module N
Voltage / brake torque
3 Complete rotor
Complete rotor, low-noise version
4Hub Bore
6Flange
Hartchromed flange
10 Set of fastening screws
Allen screw DIN912 8.8
formountingtothemotor/flange
Friction plate:
for flange with through hole
for connection flange / double brake
14 Manual release
13 Cover seal
27 Friction plate
Terminal box as mounting kit
Speedometer flange
Connection flange for double brake
Brake cover (degree of protection corresponds to IP65)
