5 Electrical installation
5.1 Electrical connection
5.1.1 Important notes
Stop!
| If emergency switching off is carried out without the required suppressor
circuit, the control unit may be destroyed.
| Observe the correct polarity of the suppressor circuit!
Danger!
| Electrical connection must only be carried out by skilled personnel!
| Connections must only be made when the equipment is de-energised! Danger
through unintended starts or electric shocks.
Stop!
| It must be ensured that the supply voltage corresponds to the nameplate
data.
| Voltages must be adapted to t he local environment!
Tip!
Compare the coil voltage of the stator to the DC voltage of the installed rectifier.
5.1.2 Circuit proposals

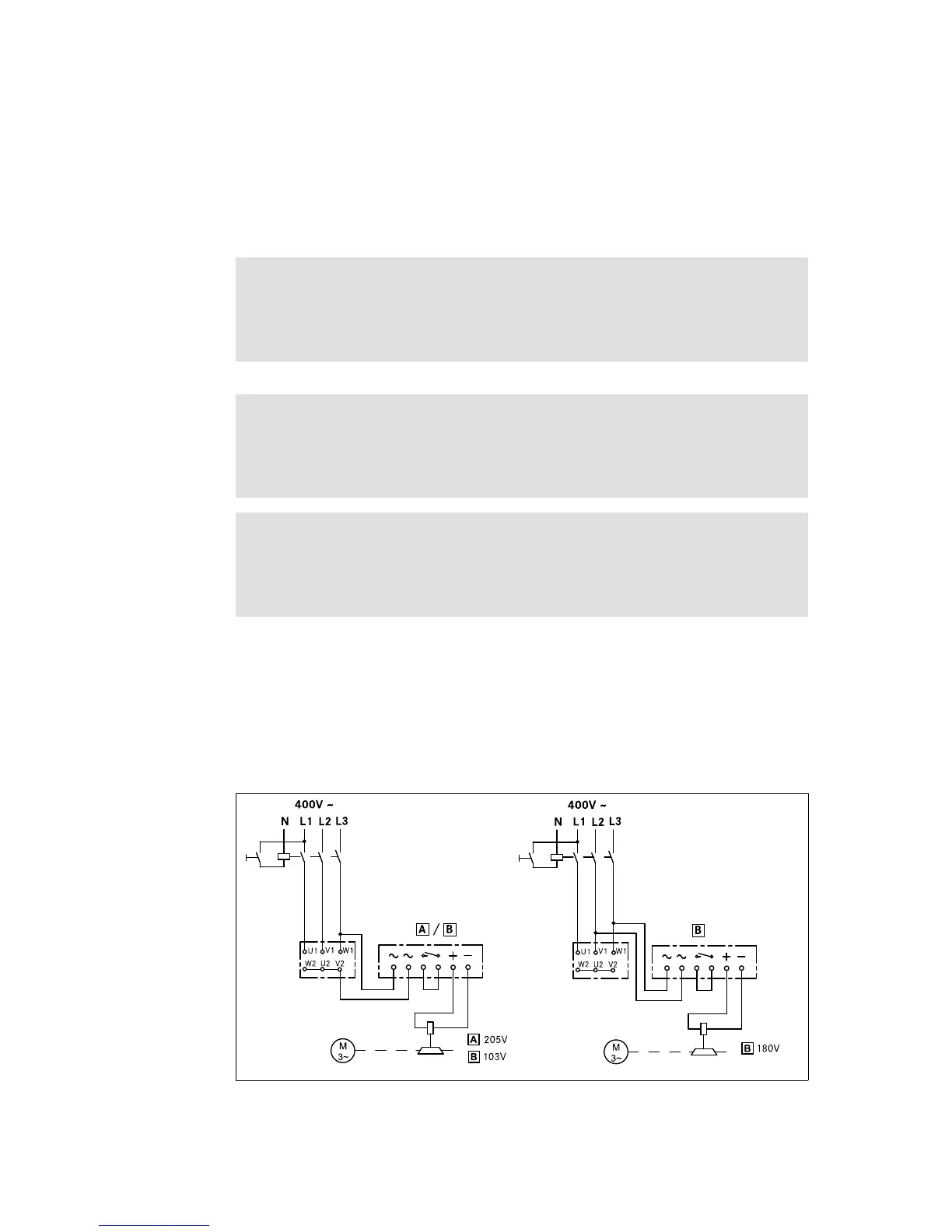

BFKXXX-007.iso
Bridge rectifier Half-wave rectifier
Fig. 14 Delayed engagement
