j | BA 14.0168 | 10/2013
53
14
6
1
4
28
12
13
14
3
4
27
10
13
9
5
3
10
1

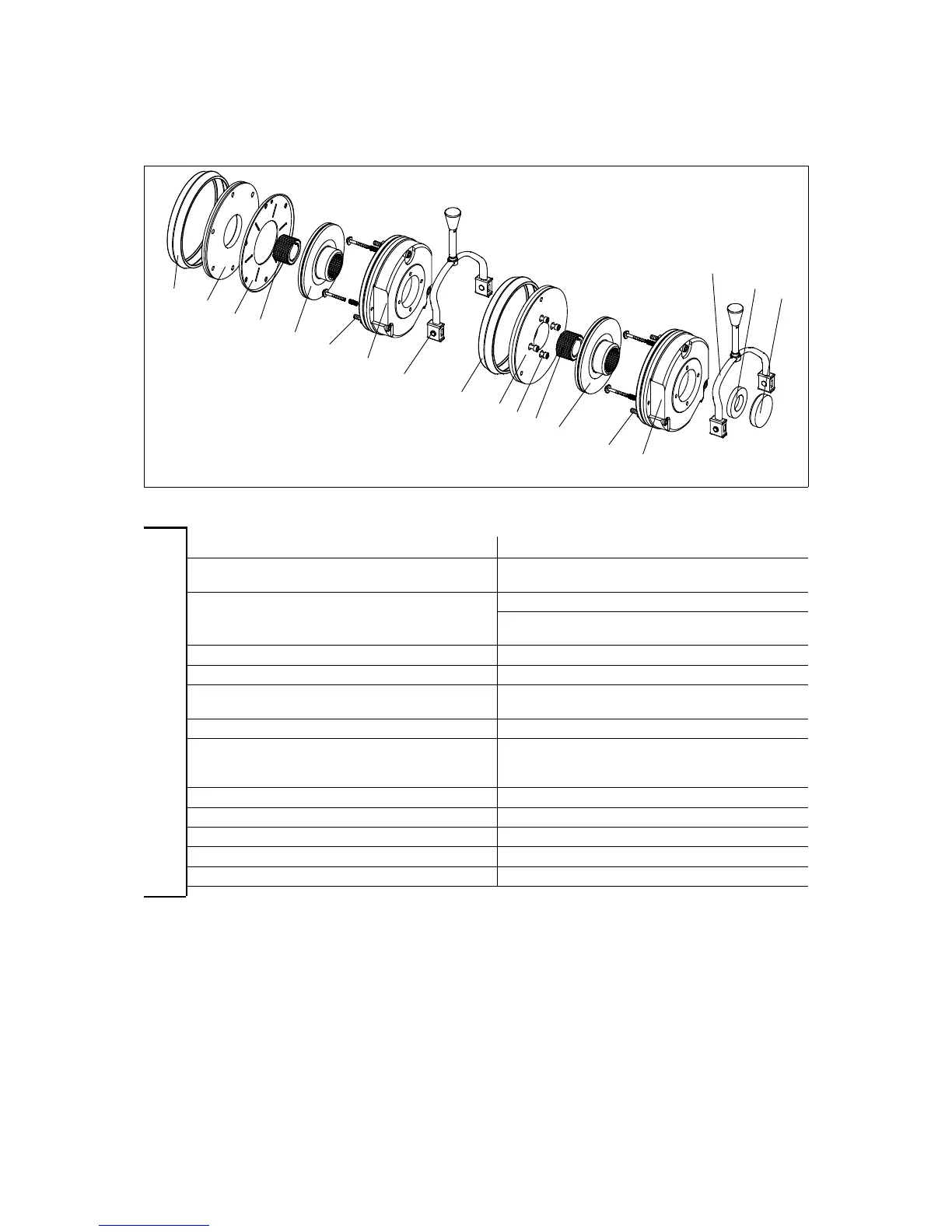

Fig. 23 Double spring-operated brake INTORQ BFK458-06 to 25
Pos. Designation Variant
1 Complete stator, module N Voltage / brake torque
– as option with noise-reduced armature plate
3 Complete rotor
Aluminium rotor
Aluminium rotor with sleeve
– Low-noise version
4 Hub with standard bore Hole diameter [mm] slot according to DIN 6885/1
5 Set of fastening screws; Allen screw DIN912 8.8 for connection flange / double brake
6Flange
Hartchromed flange
9 Connection flange for double brake
10 Set of fastening screws; Allen screw DIN912 8.8 | for mounting to the flange
| for mounting to the motor / friction plate
| for flange with through hole
12 Cap Basic module N
13 Cover seal
14 Manual release with standard lever Mounting kit
27 Friction plate
28 Shaft seal Shaft diameter on request
