6.2.4 Checking the manual release function
Stop!
This operational test is to be carried out additionally!
Danger!
The drive system must be load-free. The motor must not rotate.

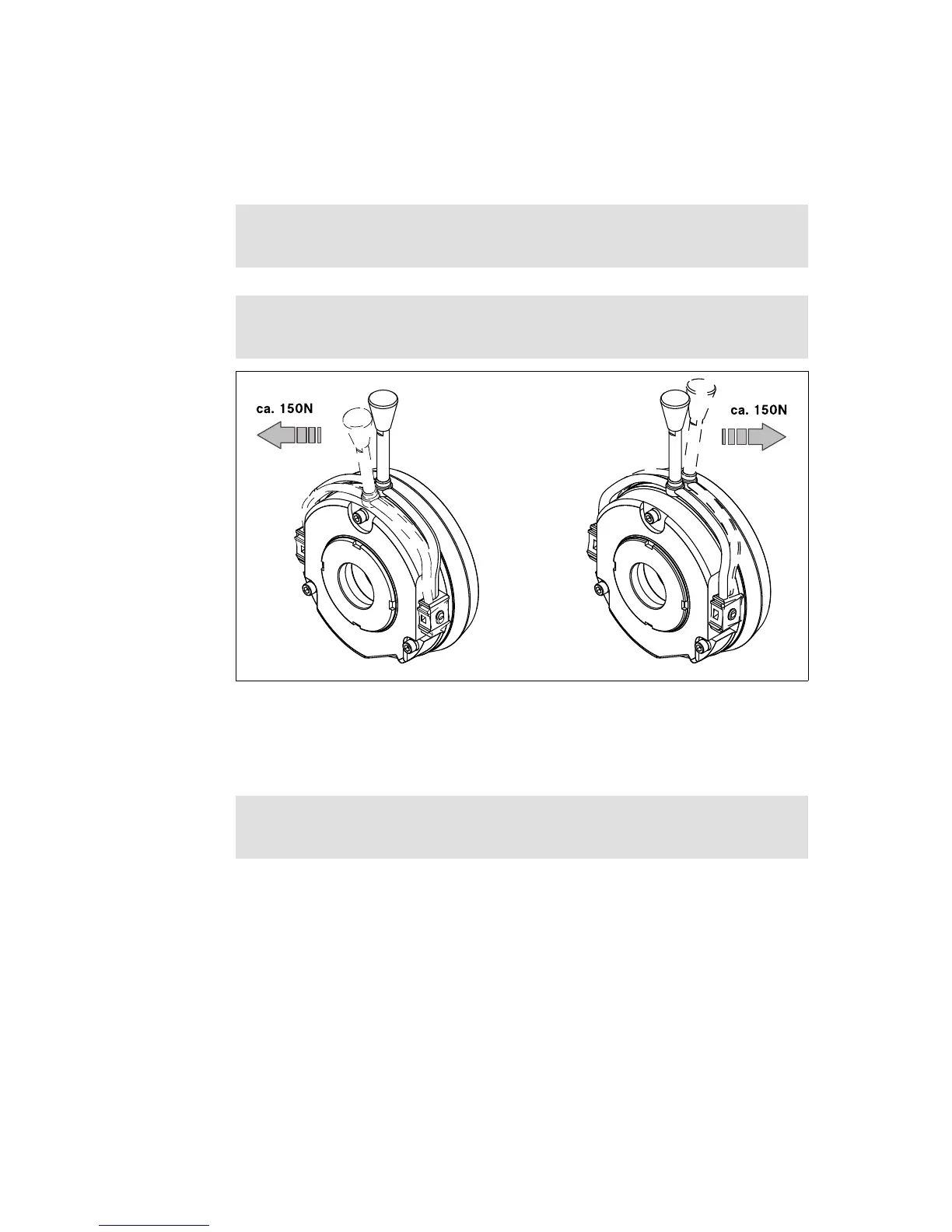

Fig. 20 Operating d irection of lever
1. Motor and brake de-energised.
2. Pull the lever (Fig. 20) until the resistance increases strongly.
– The rotor must rotate freely. A small residual torque is permissible.
Stop!
Additional tools to facilitate brake release are not allowed! (e.g. extension piece)
3. Release the lever.
–Torquemustbeavailable!
The preparations for commissioning are completed.
In the event of failures, refer to the troubleshooting table, 56. If the fault cannot be
eliminated, please contact the aftersales service.
