Da Vinci Firefly Imaging System User Manual Addendum 552064-10 Rev. A

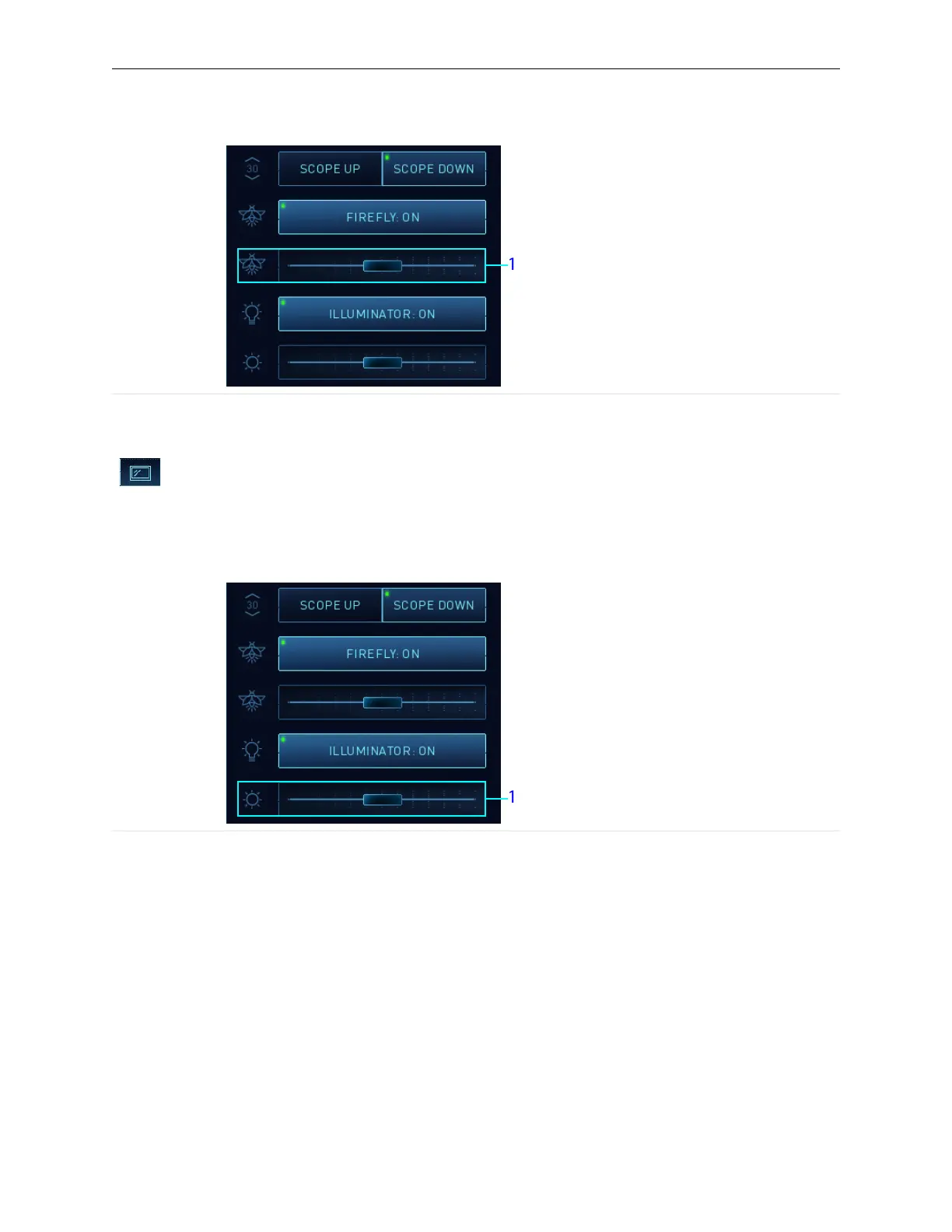

Figure 20 Vision Cart Firefly Intensity slider
1
1. Firefly Intensity slider
Brightness Slider
On the Display tab, move the Brightness slider to change the background brightness
when Firefly is activated. This slider also adjusts image brightness in visible light mode
(when Firefly is deactivated).
Figure 21 Vision Cart Brightness slider
1
1. Brightness slider
22
Firefly Imaging Operation | Adjust Image
