• The Endoscope Controller LED indicates the power status of the Endoscope Controller.
Table 1 Endoscope Controller
Endoscope Controller LED Status
Off No Power
Red Failure
Blue, Flashing Powering up
Blue, Steady Powered and ready
• The Endoscope Cable Connection LED indicates when an endoscope is connected and ready
for use.
Table 2 Endoscope Cable Connection
Endoscope Cable Connection LED Status
Off Endoscope is not connected, or Endoscope is
attached to arm
Blue, Steady Endoscope is connected and ready
• The Laser Safety Label LED illuminates “LASER ON” when Firefly imaging is activated .
Table 3 Laser Safety Label
Laser Safety Label LED Status
Off, Text is not illuminated Firefly imaging is not activated
On, Text is illuminated Firefly imaging is activated

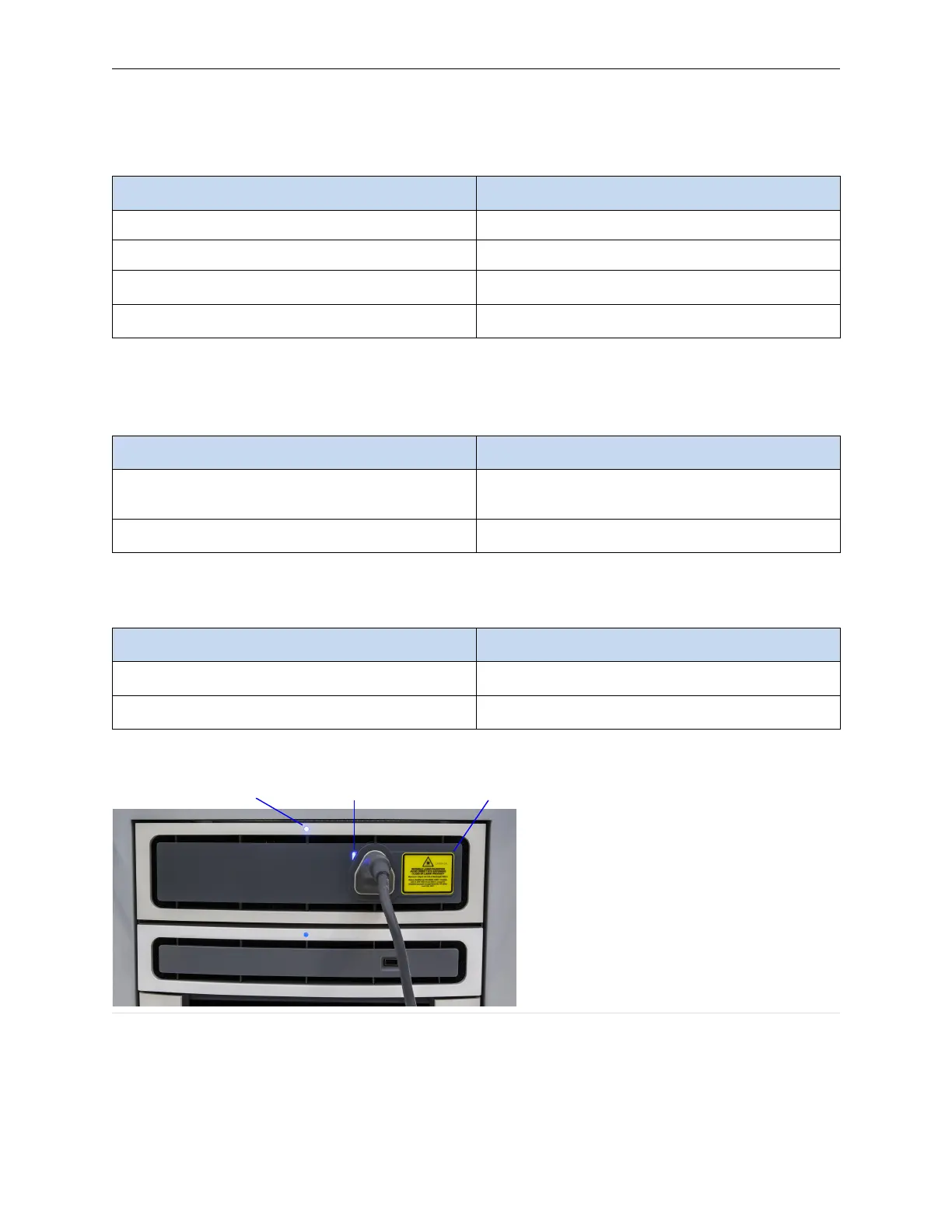

Figure 2 Endoscope Controller front panel
1
2
3
1. Endoscope Controller LED
2. Endoscope Cable Connection LED
3. Label: Laser On indicator (example)
