Da Vinci Firefly Imaging System User Manual Addendum 552064-10 Rev. A

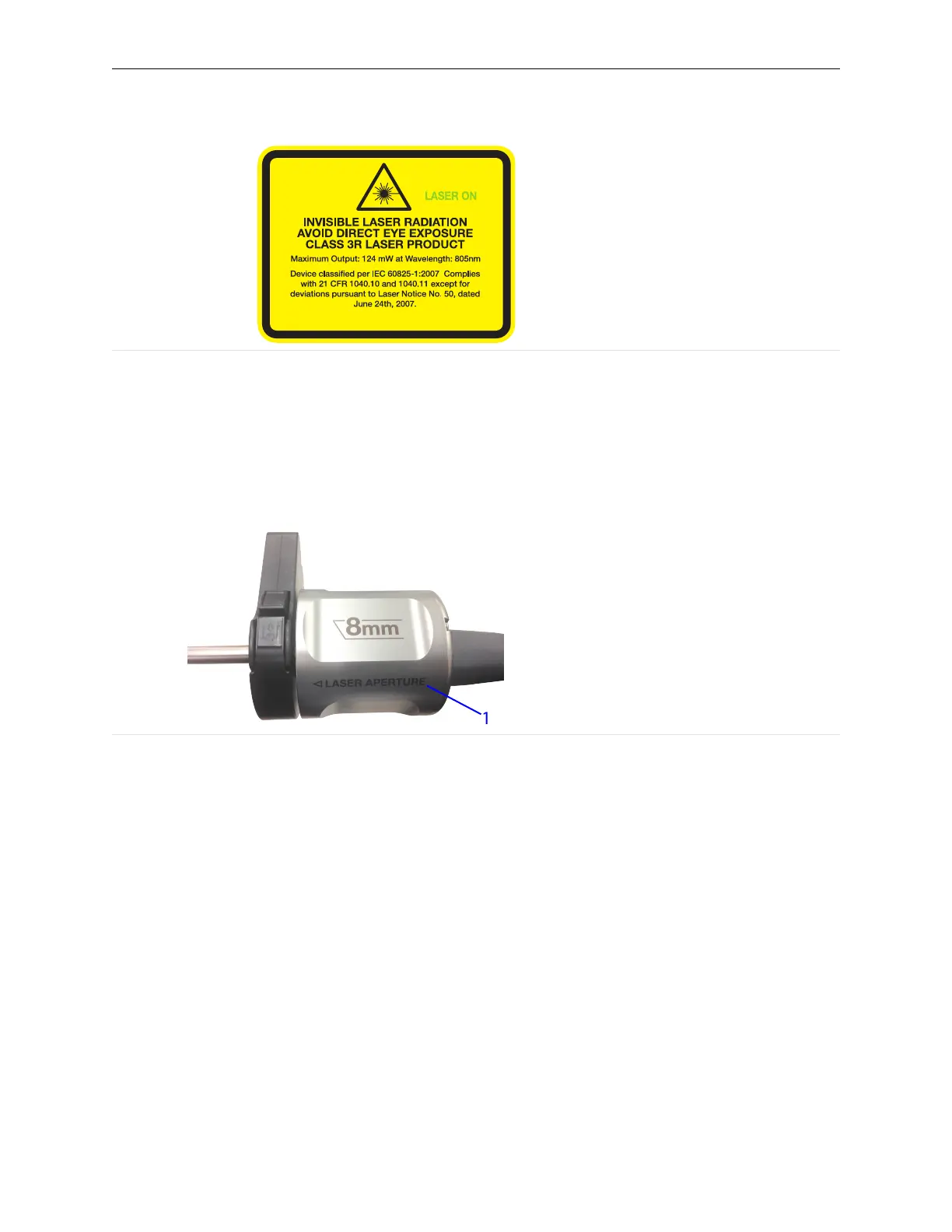

Figure 3 Laser safety label (example)
1. “LASER ON” illuminates when Firefly
imaging is active
Endoscope Indicators
Endoscope Laser Aperture Label
The endoscope laser aperture label points in the direction that laser light is emitted.
Figure 4 Laser aperture label (example)
1. Laser Aperture label
Endoscope LED
The Endoscope LED indicates connection to the Endoscope Controller.
System Overview | Indicators
9
