da Vinci SP Instruments and Accessories
EndoWrist SP Instruments
19
DRAFT/PRE-RELEASE/CONFIDENTIAL
12/5/19
Instruments with permanent tips:
• Confirm that the horizontal line below the IS logo on the instrument tip is visible just
above the end of the sheath to ensure proper seating (Figure 3.6 B).

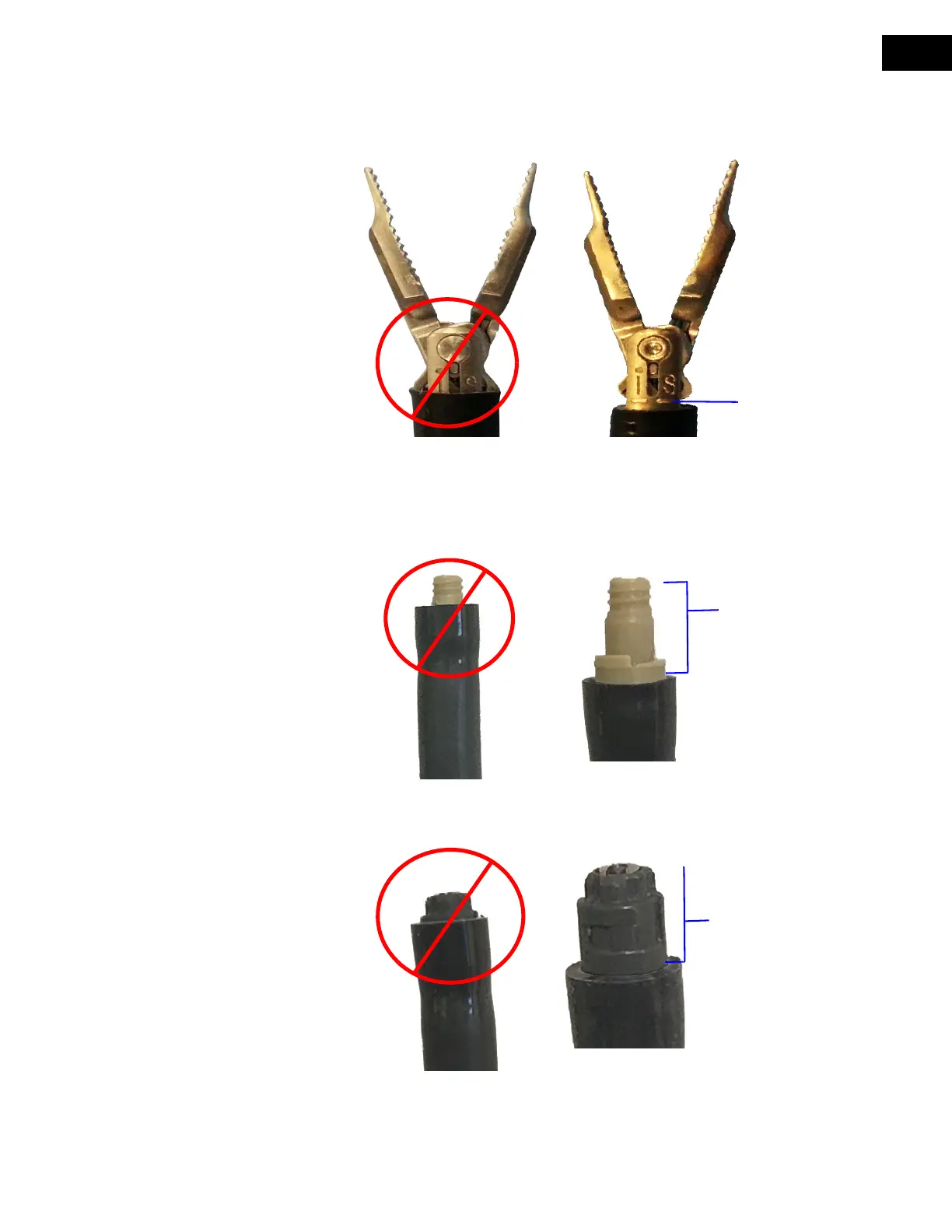

Figure 3.6 Example of incorrect (A) and correct (B) Instrument Sheath installation
Instruments with removable tips:
•Confirm that the instrument tip connector is fully visible to ensure proper seating on
the end of the sheath (Figure 3.7 B and Figure 3.8 B).
Figure 3.7 Instrument Sheath incorrectly (A) and correctly (B) installed on the Monopolar
Cautery Instrument
Figure 3.8 Instrument Sheath incorrectly (A) and correctly (B) installed on the Monopolar
Curved Scissors
A
End of
sheath
correctly
seated
Horizontal line
End of
sheath
incorrectly
seated
B
A
B
End of
sheath
incorrectly
seated
End of
sheath
correctly
seated
Tip connector
A
B
Sheath
incorrectly
seated
End of
sheath
correctly
seated
Tip connector
