SECTION 3—MAINTENANCE AND TROUBLESHOOTING
Part No. 1148113 21 1900/1900S Bath Lift

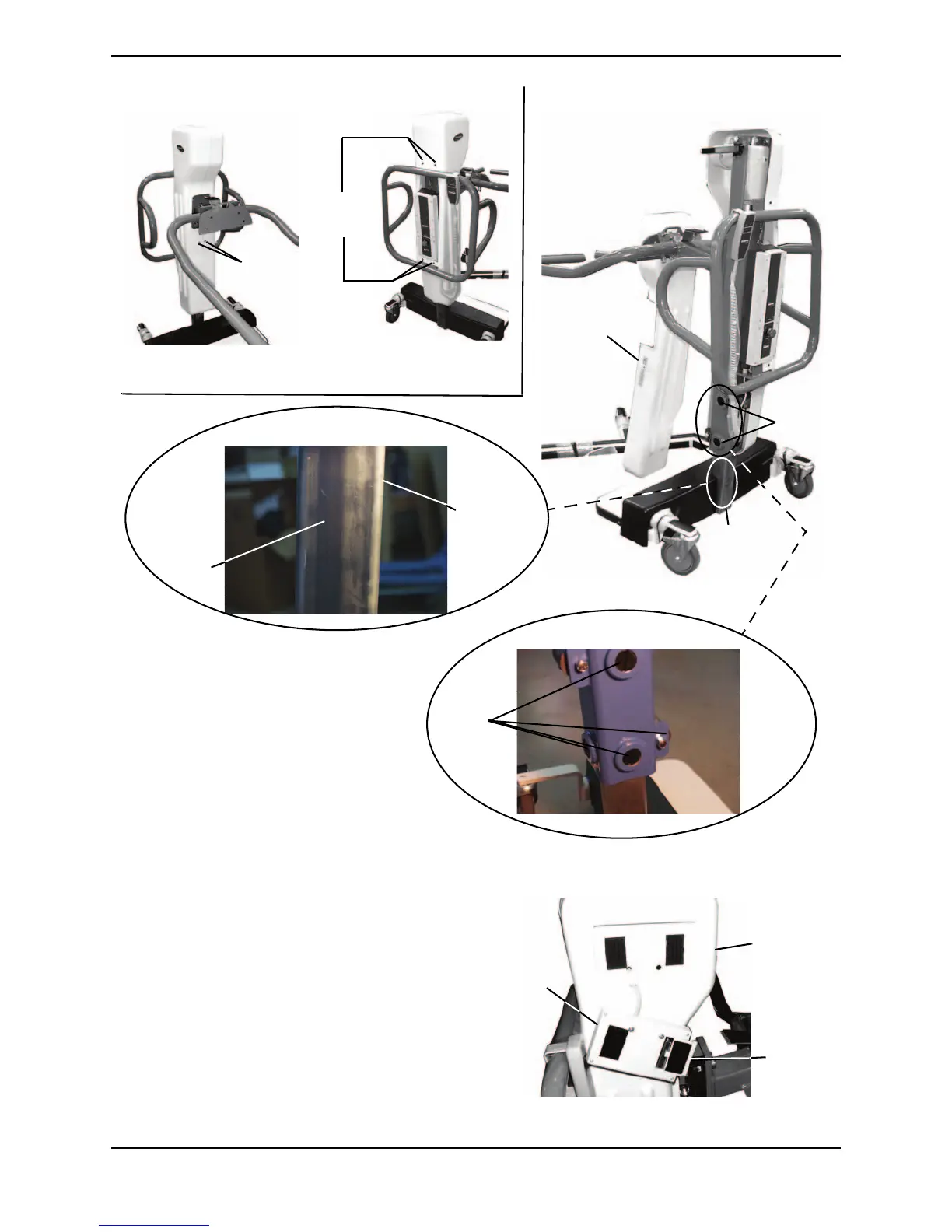

FIGURE 3.3 Inspecting and Adjusting the Lift Column
Changing the Scale Battery
(Model 1900S ONLY)
NOTE:Forthisprocedure,referto
FIGURE 3.4.
1. Pullthescalefromtheliftcolumn.
2. Slideopenthebatterydoorontheback
ofthescale.
3. Replacethebattery.
4. ReverseSTEPS1and2.
FIGURE 3.4 Changing the Scale Battery
(Model 1900S ONLY)
Bearing
Ends
Inner
Column
Tracks
DETAIL “C”
DETAIL “A”
NOTE:Self‐tappingscrewshiddenfromview.
Mounting
Screws
Front
Back
Inner
Column
Bearing
Ends
Outer
Shroud
DETAIL “B”
Mounting
Screws
Lift
Column
Space
Battery
Door
