Part No. 1118394 27 Rehab Shower Commode Chair
CASTERS SECTION 9
CASTERS
Section 9 - Casters - includes the following:
Removing/Installing Front Casters
Removing/Installing Casters with Brake
WARNING
After ANY adjustments, repair or service and BEFORE use, make sure all
attaching hardware is tightened securely - otherwise injury or damage
may result.
REMOVING/INSTALLING FRONT CASTERS - ON MODEL
NOS. 6795 AND 6895 (FIGURE 1)
REMOVINGREMOVING
REMOVINGREMOVING
REMOVING
1. Loosen nut on caster assembly.
2. Unscrew the caster stem from the
chair frame.
INSTALLING
1. Screw the caster stem to the chair
frame.
2. Tighten nut on caster assembly.
NOTE: Overtightening will impair freedom of
caster swing.

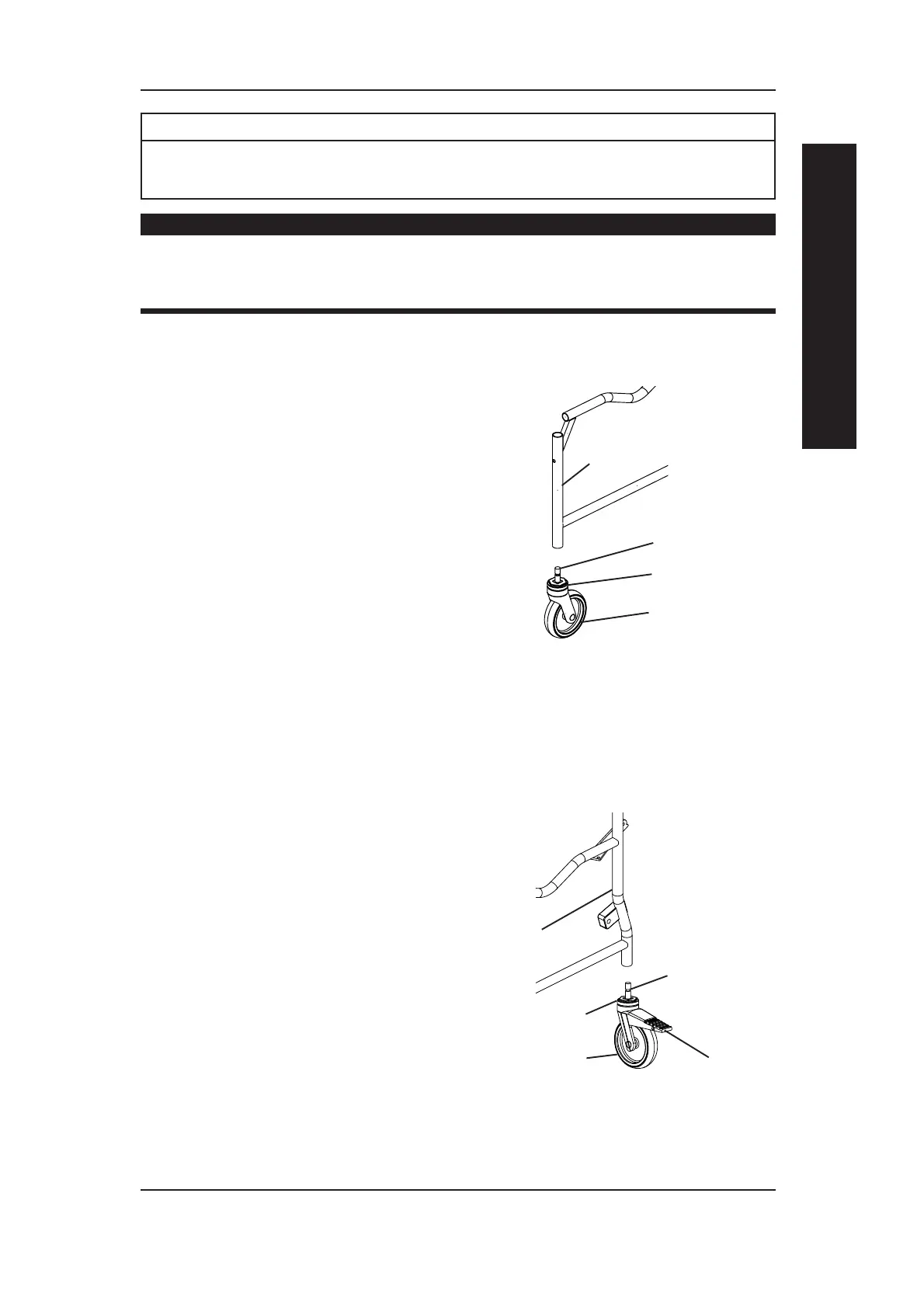

FIGURE 1 - REMOVING/
INSTALLING FRONT CASTERS
Front Caster
Frame
Front Caster
Stem
Nut
REMOVING/INSTALLING CASTERS WITH BRAKE - ON
MODEL NO. 6891 (FIGURE 2)
REMOVINGREMOVING
REMOVINGREMOVING
REMOVING
1. Loosen nut on caster assembly.
2. Unscrew the caster stem from the
chair frame.
INSTALLING
1. Screw the caster stem to the chair
frame.
2. Tighten nut on caster assembly.
NOTE: Overtightening will impair freedom
of caster swing.
Rear Caster
Frame
Nut
Caster Stem
Brake
FIGURE 2 - REMOVING/INSTALLING
CASTERS WITH BRAKE
