Part No. 1110545 53 A4™AND A4™TITANIUM
5. After replacing or adjusting the caster size, refer to ADJUSTING CASTER HEIGHT
in this section of the manual to add/remove fork spacers and add/remove washers to
ensure caster headtubes are perpendicular to the ground.
6. Anti-tipper height (if applicable) must be adjusted to maintain 1-1/2 to 2-inch
clearance between the bottom of the anti-tipper wheels and the floor. Refer to
ADJUSTING ANTI-TIPPER HEIGHT in SECTION 7 of this manual.
7. Ensure wheel locks engage properly. Refer to WHEEL LOCK ADJUSTMENT/
REPLACEMENT in this section of the manual.

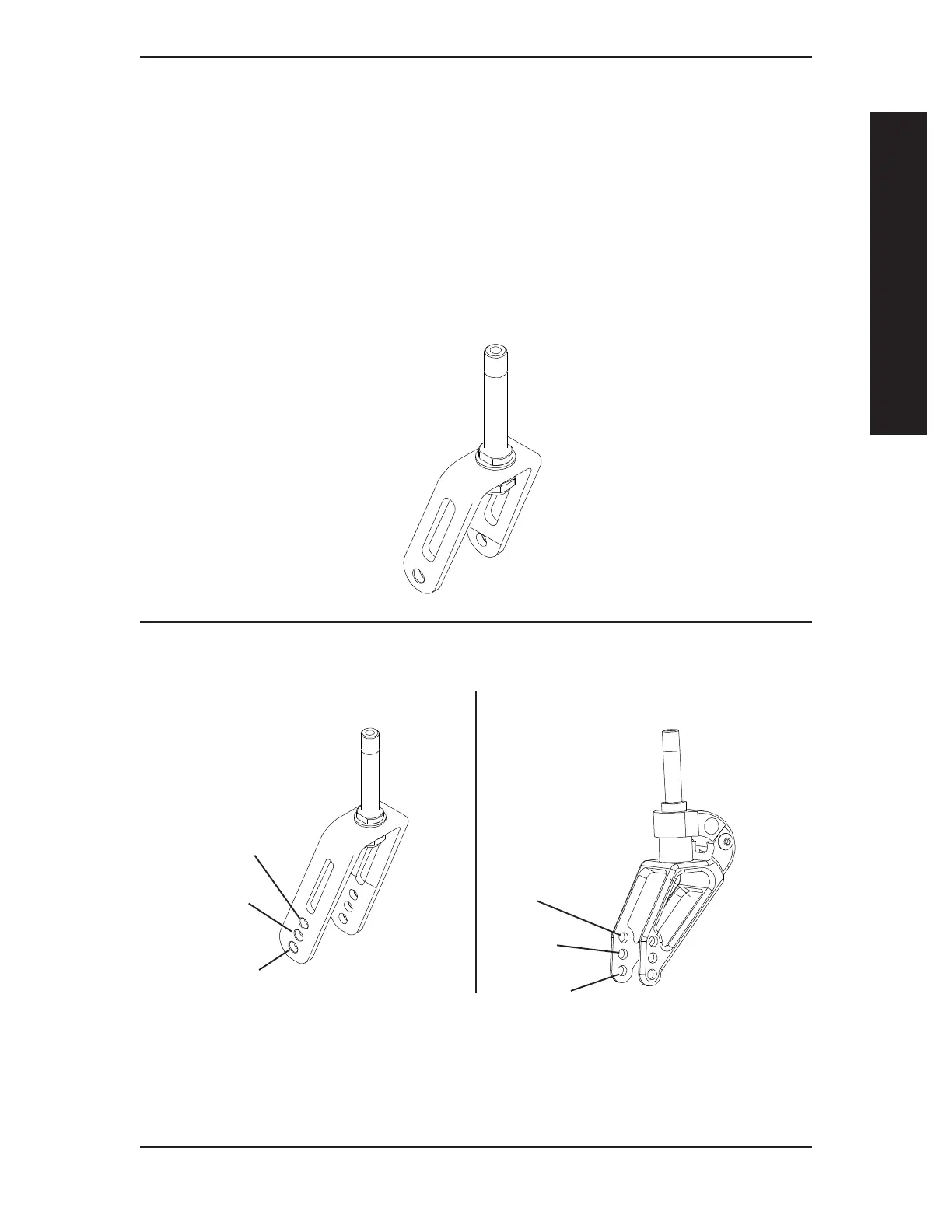

FIGURE 12 - FRONT SEAT-TO-FLOOR HEIGHT ADJUSTMENT
SHORT FORK - NON-SUSPENSION ONLY
LONG FORK
FORK STYLE INFORMATION
WHEELS SECTION 5
WHEELS
NON-SUSPENSION FORK
SUSPENSION FORK
Bottom
Middle
Top
Top
Middle
Bottom
