A4™AND A4™TITANIUM 26 Part No. 1110545
BACK HEIGHT ADJUSTMENT (FIGURE 2)
NOTE: Observe the tautness of the back upholstery/adjustable tension back upholstery adjuster
straps for proper reinstallation.
1. Remove the back upholstery by performing one (1) of the following:
A. STANDARD BACK UPHOLSTERY - Refer to REMOVING/INSTALLING
STANDARD BACK UPHOLSTERY in SECTION 3 of the manual.
B. ADJUSTABLE TENSION BACK UPHOLSTERY - Refer to ADJUSTABLE
TENSION BACK UPHOLSTERY in SECTION 3 of the manual.
WARNING
Push pin of the back cane insert bar MUST be protruding through hole in
each back cane.
Ensure that both back cane insert bars are at same height BEFORE
reassembling the wheelchair.
2. Press the push pin on the back cane insert bar IN and adjust the back height to one
(1) of five (5) heights depending on original back height:
BACK HEIGHT (IN INCHES)
* HOLE # 8-11 10-14 12-16 14-18 16-20
1 8 10121416
2 10 11 13 15 17
3 11 12 14 16 18
4 N/A 13 15 17 19
5 N/A 14 16 18 20
*Holes numbered from bottom to top for reference only. (There are no numbers on
the back canes.)
3. Reinstall back upholstery by performing one (1) of the following:
A. STANDARD BACK UPHOLSTERY - Refer to REMOVING/INSTALLING
STANDARD BACK UPHOLSTERY in SECTION 3 of the manual.
B. ADJUSTABLE TENSION BACK UPHOLSTERY - Refer to ADJUSTABLE
TENSION BACK UPHOLSTERY in SECTION 3 of this manual.

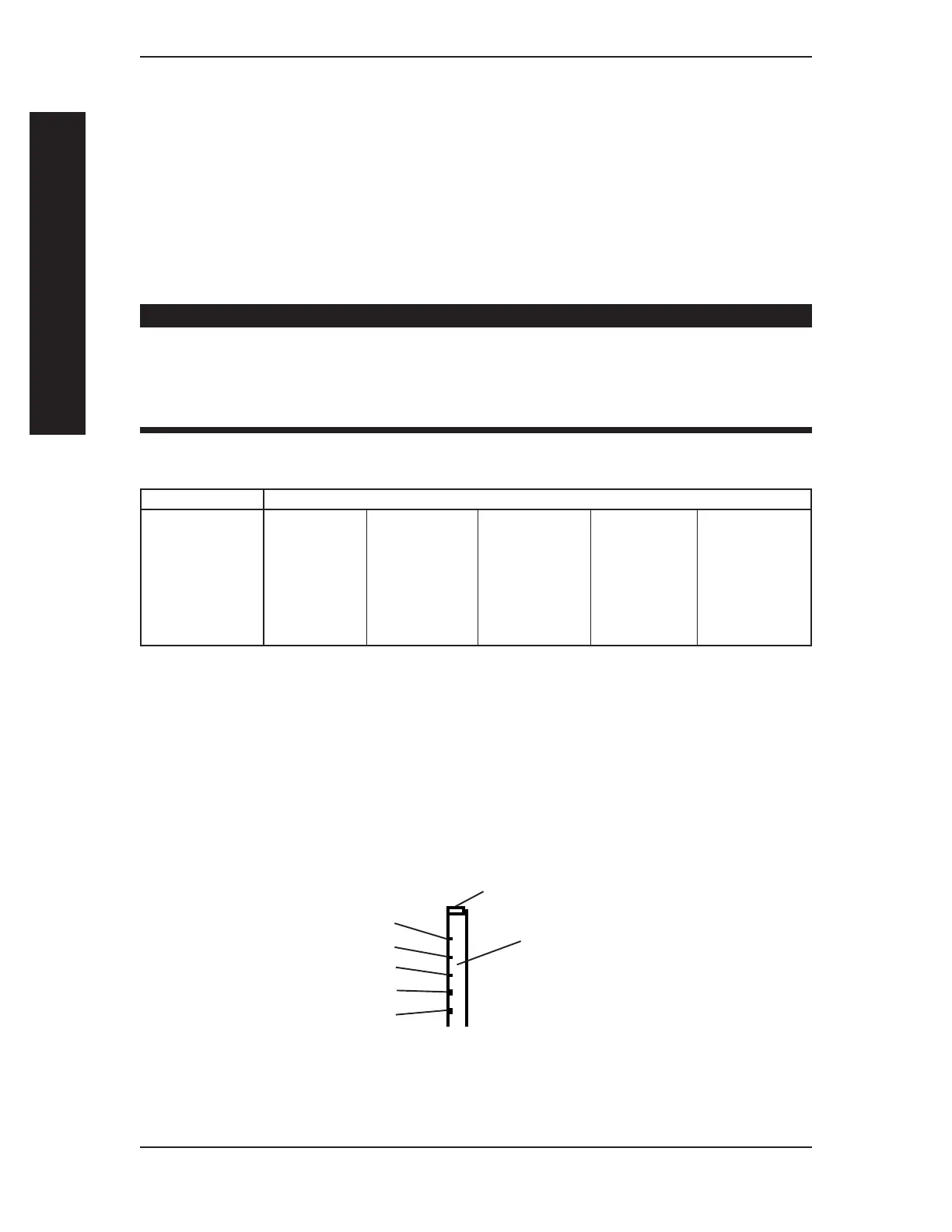

FIGURE 2 - BACK HEIGHT ADJUSTMENT
Back Cane
Back Cane Insert Bar
Hole Number
5
4
3
2
1
SECTION 4 FRAME
FRAME
