SECTION 8 ARMS
ARMS

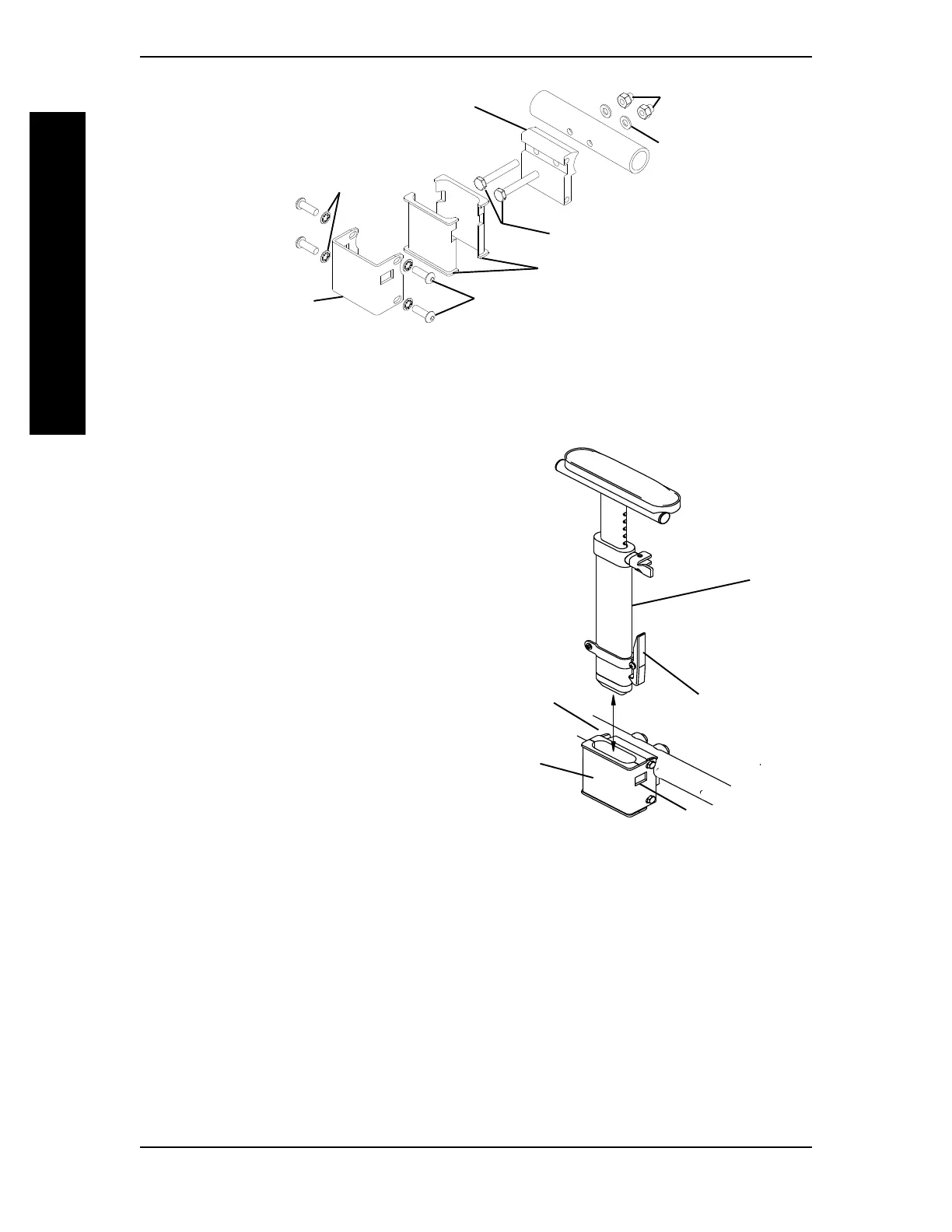

FIGURE 1 - INSTALLING THE T-ARM SOCKETS
T-Arm
Socket
Locking Lever
(towards the front
of the wheelchair)
T-Arm
Wheelchair
Frame
FIGURE 2 - INSTALLING/
REMOVING T- ARMS
Slot
INSTALLING/REMOVING T-ARMS (FIGURE 2)
INSTALLING T-ARMS
1. Position the T-arm over the T-arm
socket on the wheelchair frame.
NOTE: Make sure the locking lever is towards
the front of the wheelchair.
2. Slide T-arm into T-arm socket until the
locking lever is in the slot in the T-arm
socket and an audible "click" is heard.
3. Pull up on T-arm to make sure T-arm
is locked in place.
NOTE: If the T-arm does not slide in the T-arm
socket as desired, adjust the T-arm socket. Refer
to ADJUSTING THE T-ARMS in this section of the
manual.
4. Adjust the T-arm for desired height, width
and depth, if necessary. Refer to
ADJUSTING THE T-ARMS in this section
of the manual.
5. Repeat STEPS 1-4 for opposite side of wheelchair.
REMOVING T-ARMS
1. Press in on the locking lever and lift the T-arm straight up and out of the T-arm
socket.
NOTE: If the T-arm does not slide up and down in the T-arm socket as desired, adjust the T-arm
socket. Refer to ADJUSTING THE T-ARMS in this section of the manual.
2. Repeat STEP 2 for opposite side of the wheelchair.
Socket Screws
Washers
Outer T-Arm Bracket
T-Arm Inserts
Hex Screws
Inner T-Arm
Bracket
Washer
Locknuts
