SECTION 8 ARMS
ARMS
Socket
Screws
Bottom Clamp
Transfer
Assist
Side Guard
T-Arm

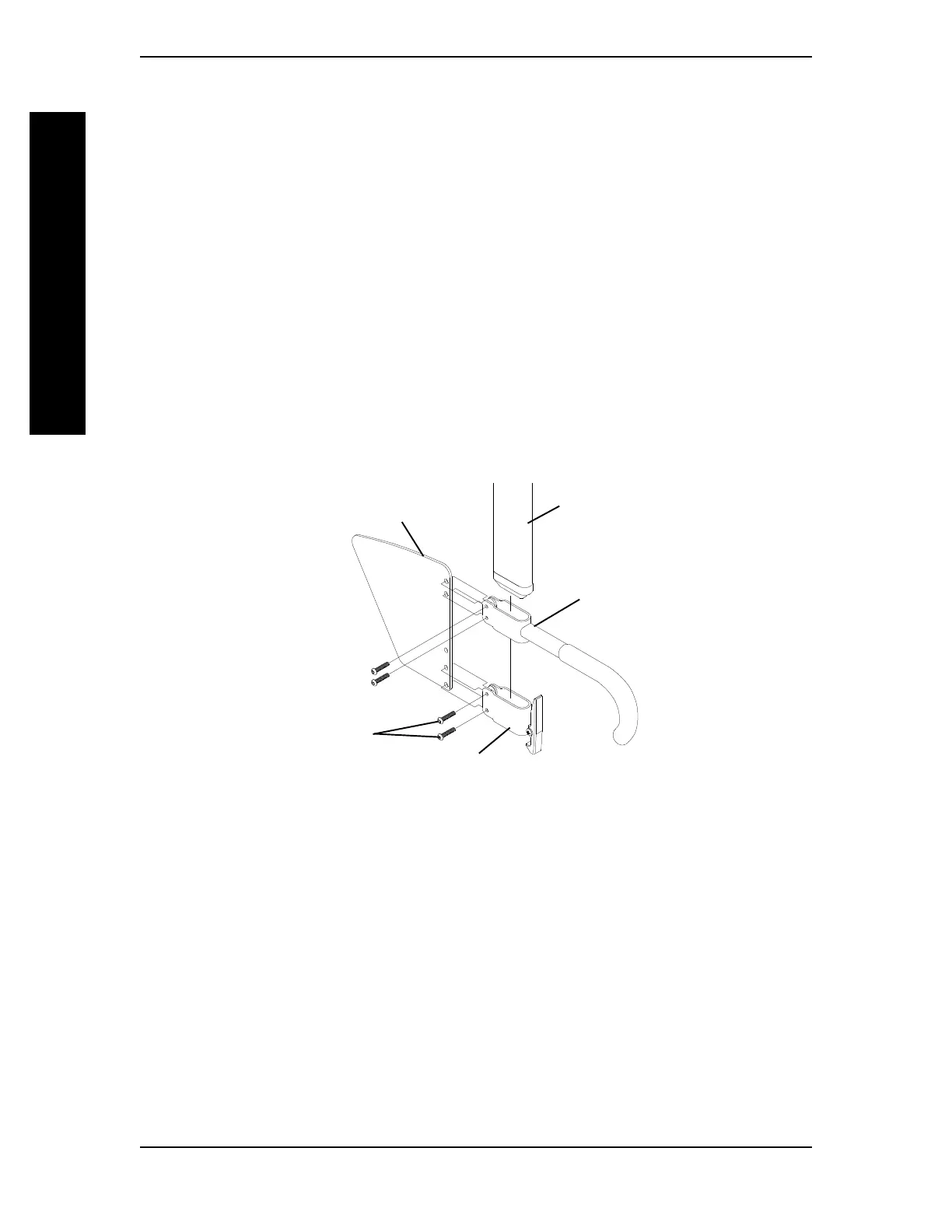

FIGURE 7 - ADJUSTING T-ARM TRANSFER ASSISTS AND/OR SIDE GUARDS
ADJUSTING T-ARM TRANSFER ASSISTS AND/OR SIDE
GUARDS (FIGURE 7)
1. Remove the T-arm from the wheelchair. Refer to INSTALLING/REMOVING
T-ARMS in this section of the manual.
2. Remove the two socket screws that secure the side guard to the bottom clamp.
NOTE: Adjusting the side guards will directly affect the position of the transfer assist.
3. Perform one of the following:
Small Side Guards - Move the bottom clamp up one of two mounting positions in the side guard.
Large Side Guards - Move the bottom clamp up one of three mounting positions in the side guard.
4. Re-secure the side guard to the bottom clamp with the two socket screws.
5. Install the T-arm onto the wheelchair. Refer to INSTALLING/REMOVING T-ARMS
in this section of the manual.
