Invacare A4 - Adjusting T-Arm Height

Part No. 1110545 65 A4™AND A4™TITANIUM
ADJUSTING THE T-ARMS
ADJUSTING T-ARM HEIGHT (FIGURE 3)
1. Unlock the T-arm by flipping the T-arm release lever towards the inside of the wheelchair.
NOTE: If necessary, pull out on the T-arm release lever and rotate 180° so it can be flipped
towards the outside of the wheelchair.
2. Slide the T-arm to one of:
A. Low Height T-Arms - Nine positions.
B. High Height T-Arms - Seven positions.
NOTE: If the inside T-arm post does not slide up and down in the outside T-arm post as desired,
perform one of the following:
A. Tighten - Tightening the set screws on the outside T-arm post will make it more
difficult to move the inside T-arm post up and down.
B. Loosen - Loosening the set screws on the outside T-arm post will make it
easier to move the inside T-arm post up and down.
3. Lock the T-arm by flipping the T-arm release lever towards the front of the
wheelchair.

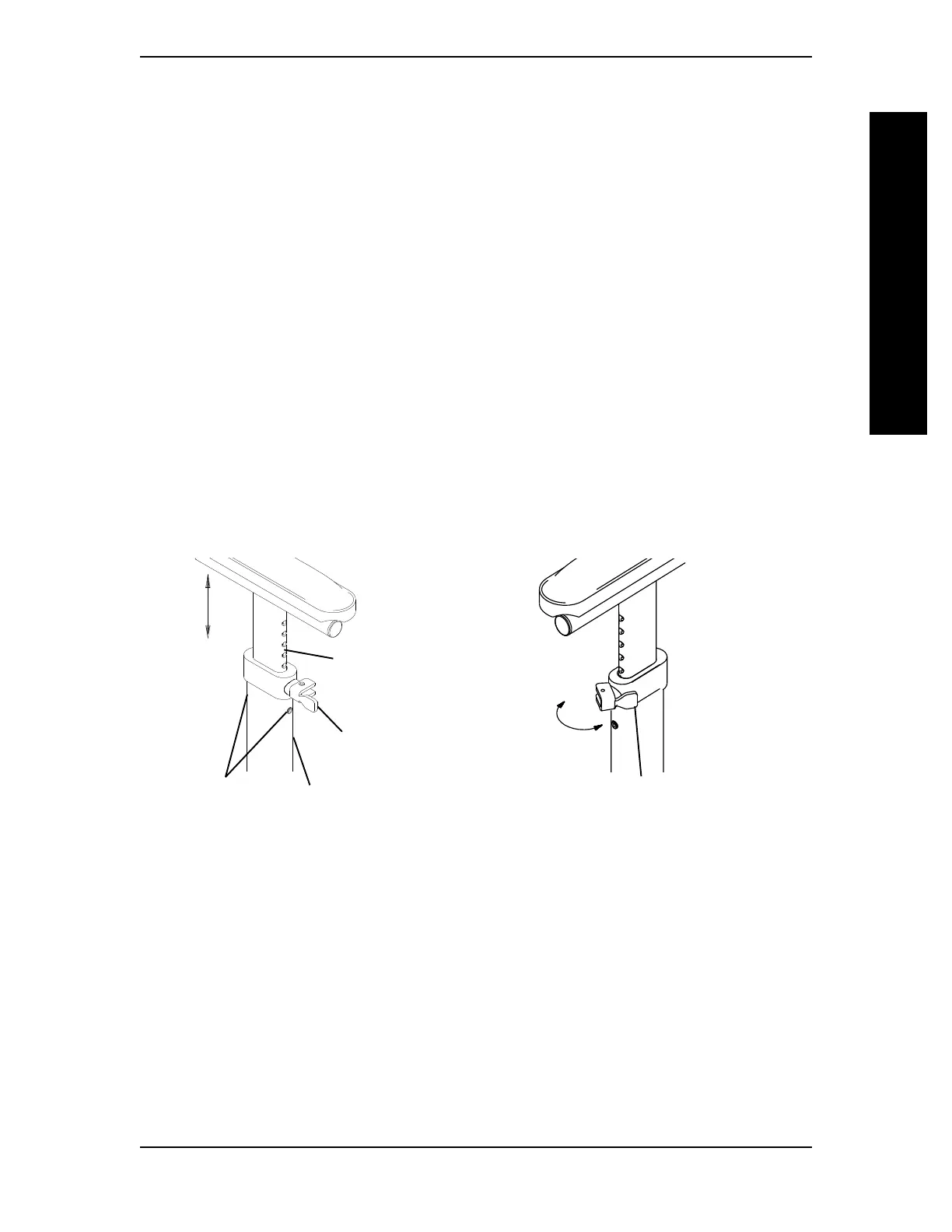

FIGURE 3 - ADJUSTING T-ARM HEIGHT
Set
Screws
T-Arm Release Lever - Unlocked Position
Outside T- Arm Post
T-Arm Release Lever
- Locked Position
Inside T-Arm
Post
SECTION 8
ARMS
ARMS
