ADJUSTING T-ARM WIDTH (FIGURE 4)
1. Remove the two phillips screws that secure the arm pad to the arm tube.
2. Turn the arm pad around and reposition the arm pad on the arm tube.
3. Re-secure the arm pad to the arm tube with the two phillips screws. Tighten
securely.
4. Repeat for the opposite side, if necessary.

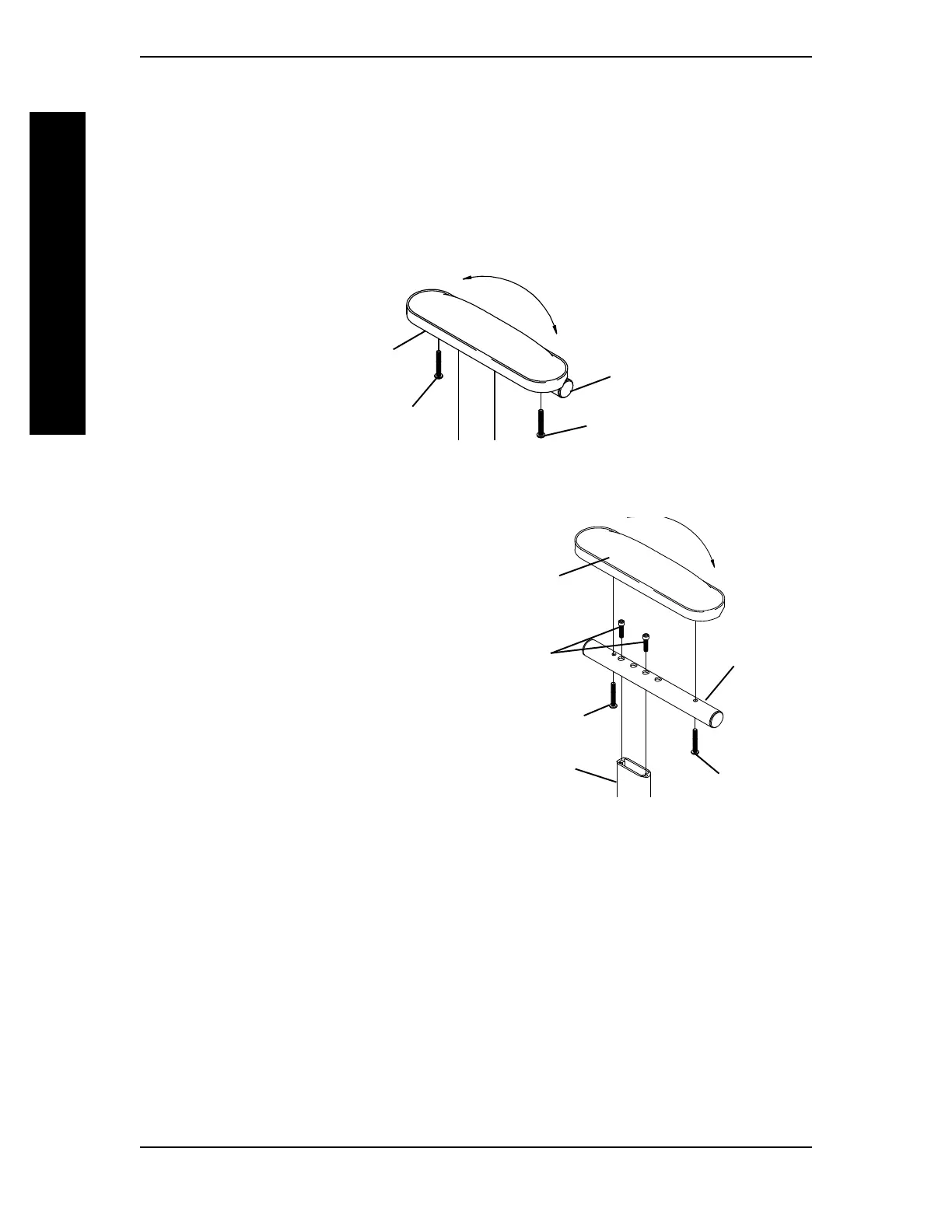

FIGURE 4 - ADJUSTING T-ARM WIDTH
Phillips Screw
Arm Tube
Phillips Screw
Arm Pad
Socket
Screws
Arm Pad
Phillips Screw
T-Arm Post
Arm Tube
NOTE: If
necessary,
turn arm
tube 180°
to obtain
two
positions.
Phillips Screw
FIGURE 5 - ADJUSTING T-ARM
DEPTH
ADJUSTING T-ARM DEPTH (FIGURE 5)
1. Remove the two phillips screws that
secure the arm pad to the arm tube.
2. Remove the two socket screws that
secure the arm tube to the T-arm post.
3. Reposition the arm tube on the T-arm
post:
A. Desk Length Arms - to one of
three positions depending on the
desired arm pad depth.
B. Full Length Arms - to one of five
positions depending on the desired
arm pad depth.
NOTE: Additional positions are obtainable by
turning the arm tube 180°.
4. Re-secure the arm tube to the T-arm post with the two socket screws. Torque to
60-70 in./lbs.
5. Reattach the arm pad to the arm tube with the two phillips screws. Tighten securely.
6. Repeat for the opposite side, if necessary.
