A4™AND A4™TITANIUM 62 Part No. 1110545
ANTI-TIPPERS
ANTI-TIPPER REPLACEMENT
WARNING
When anti-tippers are used, anti-tippers MUST be adjusted to maintain a
1-1/2 to 2-inch clearance between the bottom of the anti-tipper wheels
and the ground/floor. This spacing should always be checked whenever
adjustments/changes are made to the wheelchair. Failure to maintain
proper spacing may result in the chair tipping over backward causing
serious injury or property damage.
1. Press in the release button that secures the existing anti-tipper to the anti-tipper
socket and remove the anti-tipper from the anti-tipper socket.
2. Insert the new anti-tipper into the anti-tipper socket until release button engages.
3. Press in the release button on the anti-tipper bar and install the anti-tipper wheels
onto the new anti-tipper bar.
4. Repeat STEPS 1-3 for the opposite anti-tipper.
5. Measure the distance between the bottom of the anti-tipper wheels and the ground
floor.
6. If necessary, adjust the height of the anti-tippers. Refer to ANTI-TIPPER
ADJUSTMENT in this section of the manual.
PART NUMBER MEASUREMENT
1112178
1-1/2 to 2-inch
clearance
Anti-tipper
Release Buttons
Anti-tipper Bar

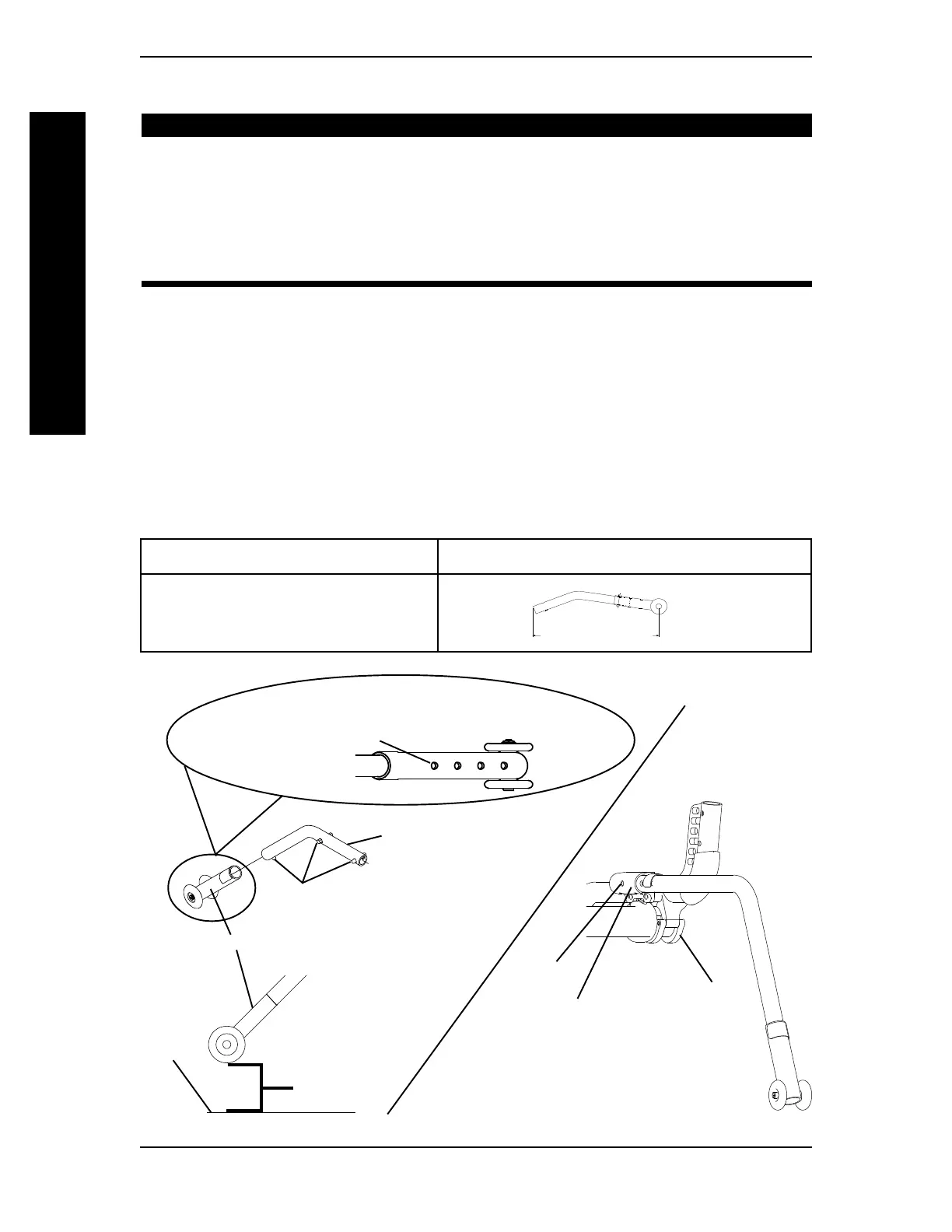

FIGURE 1 - ANTI-TIPPER ADJUSTMENT/REPLACEMENT
Anti-tipper
Socket
Camber Clamp
DETAIL "A" - ANTI-TIPPER
ADJUSTMENT HOLES
Hole
TOP adjustment hole
21-1/8-inches
ANTI-TIPPERS
SECTION 7
Ground/
Floor
