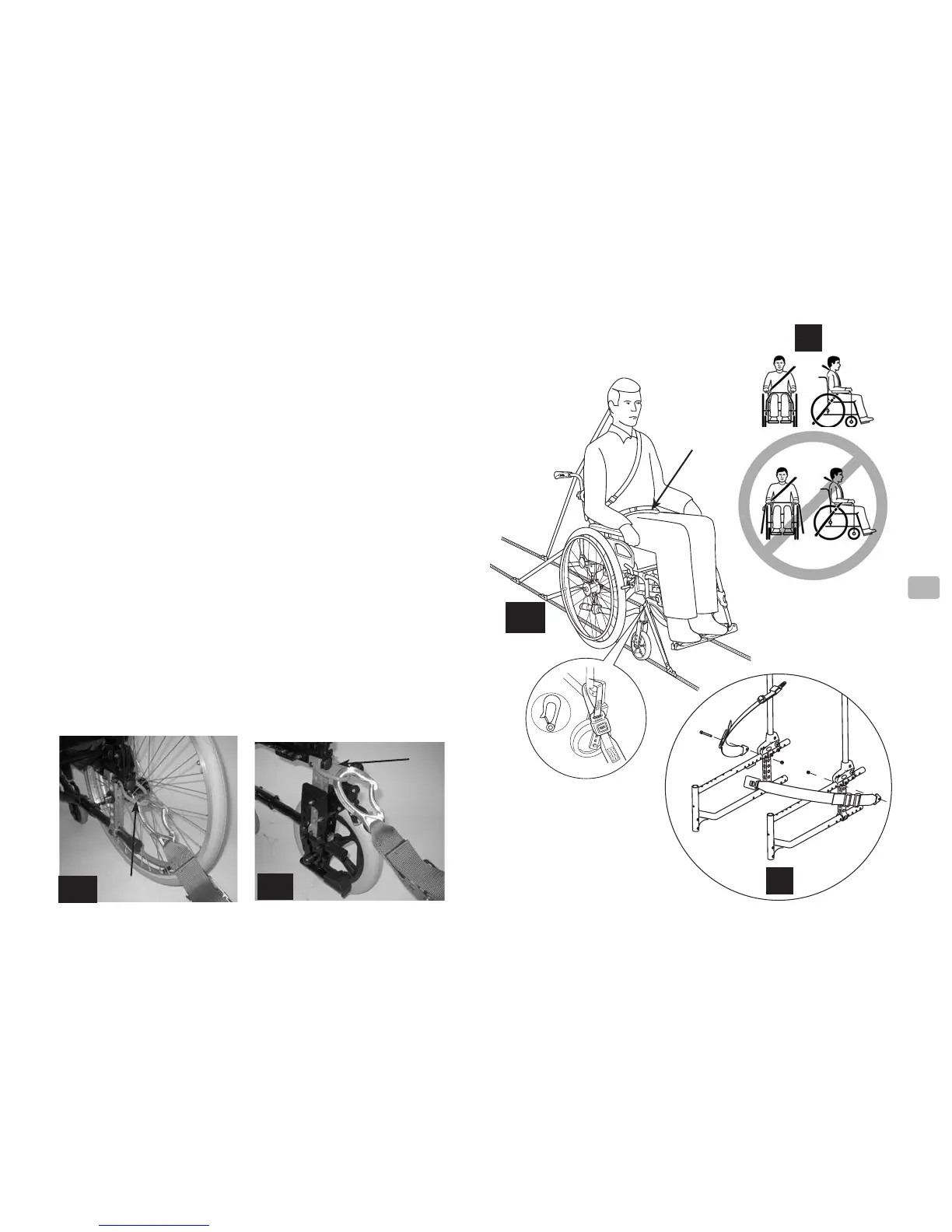

C. Posture belt
1. The posture posture belt is mounted on the back frame
(picture 24 & detail C).
2. Check that the posture belt on the wheelchair is correctly
fastened.
If posture belt on the wheelchair is missing we recommend
that the user should transfer to the seat of the vehicle, if
possible. The posture belt should be used in addition to but
never as a substitute for an approved passenger restraint
system (3-point belt).
D. Fastening of 3-point belt (vehicle safety belt device).
Although all three points may be anchored to the vehicle
oor, the diagonal belt passing over the users shoulder should
be routed through a point above and behind the seated user
which is xed to the vehicle sides, before passing down to
the oor. The 3-point belt should not be kept from the user's
body by the parts of the wheelchair.
A
23A
24
A
C
22
23B
23C
A

Invacare Action3 NG Specifications

General

Frame Material	Aluminum
Weight Capacity	125 kg
Foldable	Yes
Rear Wheel Size	24 inches
Footrests	Swing-away
Front Wheel Size	8 inches
Total Weight	14.5 kg
Armrests	removable
Seat Width	380 - 530 mm
Seat Height	38 - 51 cm
Overall Length	1060 mm (with legrests)
