- Rear wheels :
The 20" (500 mm) rear wheels are spoked with anodised
aluminium handrim.
They can be delivered with pneumatic or solid tyre.
Note : remember that in order to maintain the
interchangeability of the chair wheels equipped with quick-
release axles, the pressure in the two tyres should be the
same.
The 20" rear wheels are specic to Action
3
Compact
version and cannot be tted on Action
3
“standard”.
- Seat heights :
Due to the choice of front and rear wheels, Action
3
Compact can be delivered in 3 seat heights only : 46 cm; 43,5
cm; 41 cm.
The fork adjustment and seat height changes of posi-
tion must be performed by a professional technician upon
agreement by your prescribing physician. Please consult with
your dealer.
2.2. Frame
2.2.1 Folding system
It consists of two cross-bars which integrates seat rails.
To fold and unfold your wheelchair, see chapter A “ General
” paragraph 2.1.
2.2.2 Side frame
The sides or side frames are designed to accommodate the
steering tubes for the castors and multiple adjustment wheel
mounting for rear wheels.

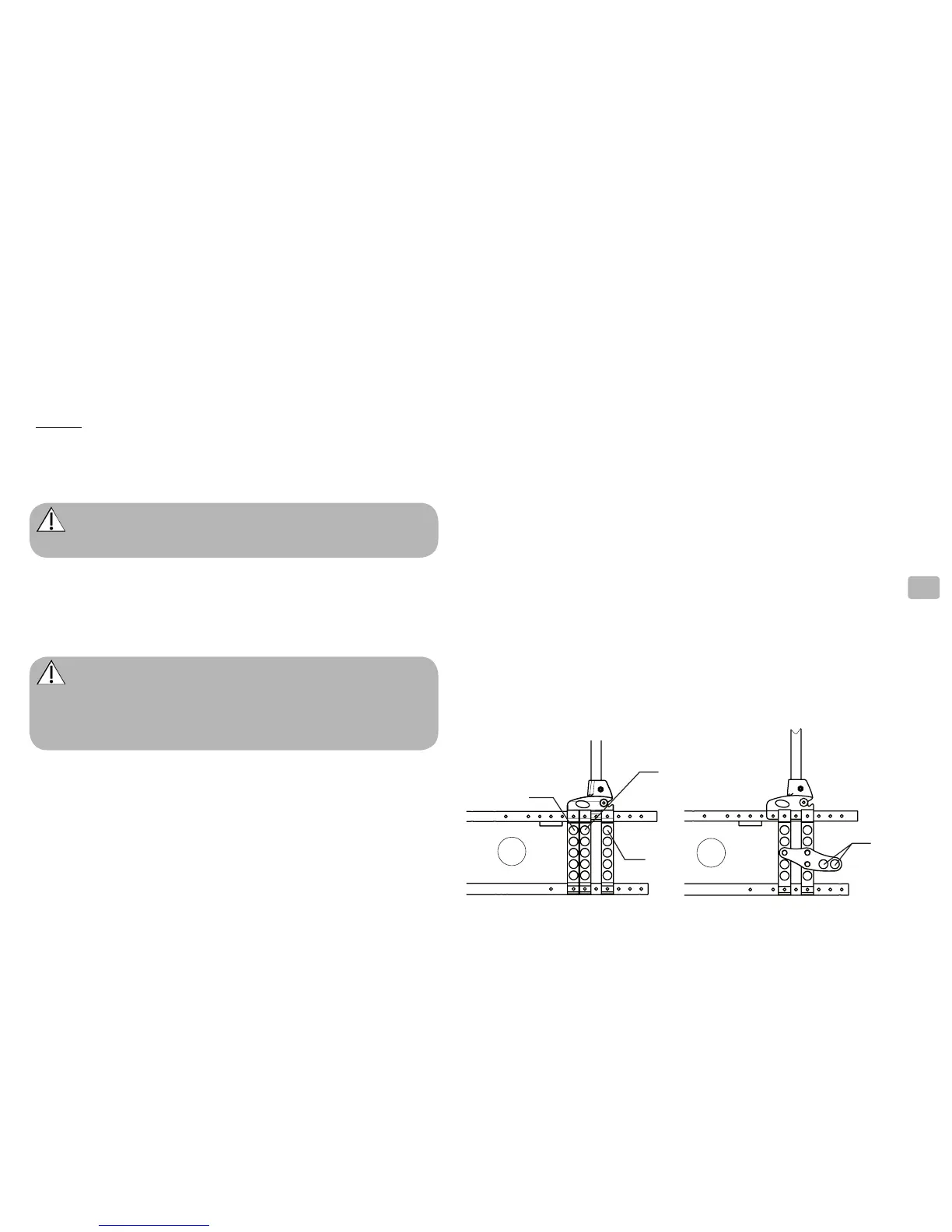

- These wheel mountings allow ve height positions and three
longitudinal positions Active (C) = advanced for better handling;
Standard (A) = serial delivery with xed or folding backrest;
Passive (B) = backward for better stability, serial with reclining
backrest and Transit (12”) version, see schema 1.
- Dual amputee position (D), option or accessory : to prevent
back tip with Amputee user’s, the rear wheel axles can be
positioned backwards from the backrest cane axle (specic
manual brakes are included in the kit) for a better stability, see
schema 2.
1
A
B
C
D
2
