- Comfort armrests (photo 19)
They are removable, simply pull them up; reverse the
operation to reinstall them.
Make sure that the slot is well positioned into the screw (A).
To adjust armrest height, slightly loosen the ball screw (B),
adjust to the desired height and tighten without forcing (B).
Armrest pads are depth adjustable : slightly loosen the ball
screw (C) and slide the pad to the desired depth, tighten
rmly (C).
Note : the adjustment of the side protection is required
based upon the desired height; slightly loosen the screws (D)
and slide the unit to the new position, tighten rmly (D).
It is possible to choose 5 extra positions with screw (A);
loosen the nut and position the screw in the new hole.
Tighten rmly (A).

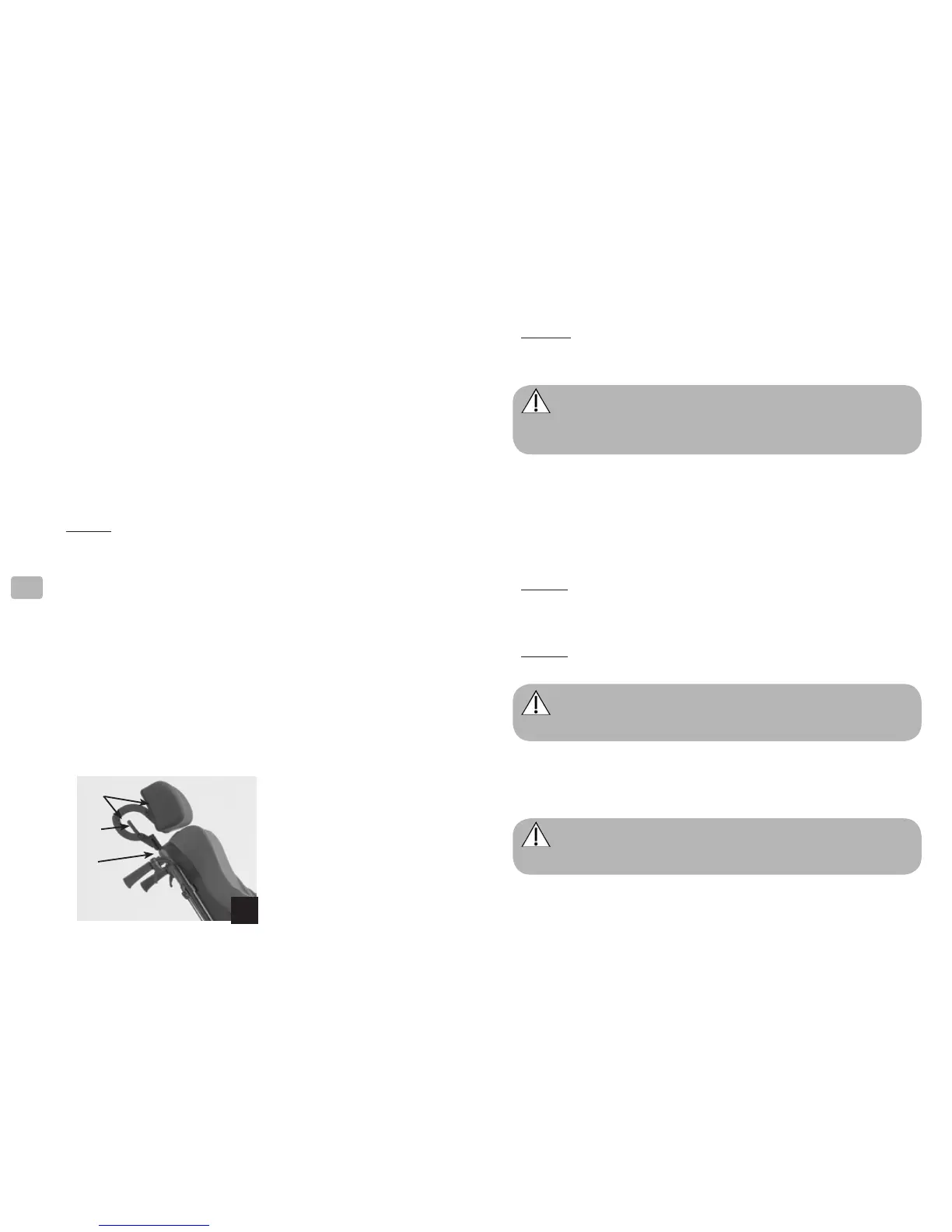

- Comfort neckrest (photo 20)
It is removable, completely loosen the ball screw (A). It is
height adjustable, slightly loosen the ball screw (A), adjust to
the desired height, tighten without forcing.
The cushion also is angle, depth and height adjustable by
operating simultaneously the lever (B) and screws (C).
A
C
B
20
Note :
make sure that the indexable lever is properly
oriented to prevent any bother or injury to the user or
attendant.
Do not adjust the head rest when the user leans on it
and check the mounting to the backrest in order to prevent
injuries.
2.1.7. Compact version
- 90° removable and swing away hanger :
Action
3
Compact is delivered with 90° hanger combined to
angle adjustable footplate or one piece footplate only.
Note :
for further information about usage or adjustment,
please refer to paragraph 2.1.4 of the Action
3
main user’s
guide.
Note :
One piece footplate have a limited range of depth
adjustment with 90° hanger.
The 90° hanger is specic to Action
3
Compact version
and cannot be tted on Action
3
“standard”.
- Front castors :
Action
3
Compact is equipped with 5" (127 mm) solid tyre
wheel and combined to a specic narrow fork.
The front castors are specic to Action
3
Compact
version and cannot be tted on Action
3
“standard”.
