23
Do not place anything heavy, or let children sit on the legrest.
It may cause damage to the mechanism.
The distance between the lowest part of the footrest and the
ground must be at least 40 mm.

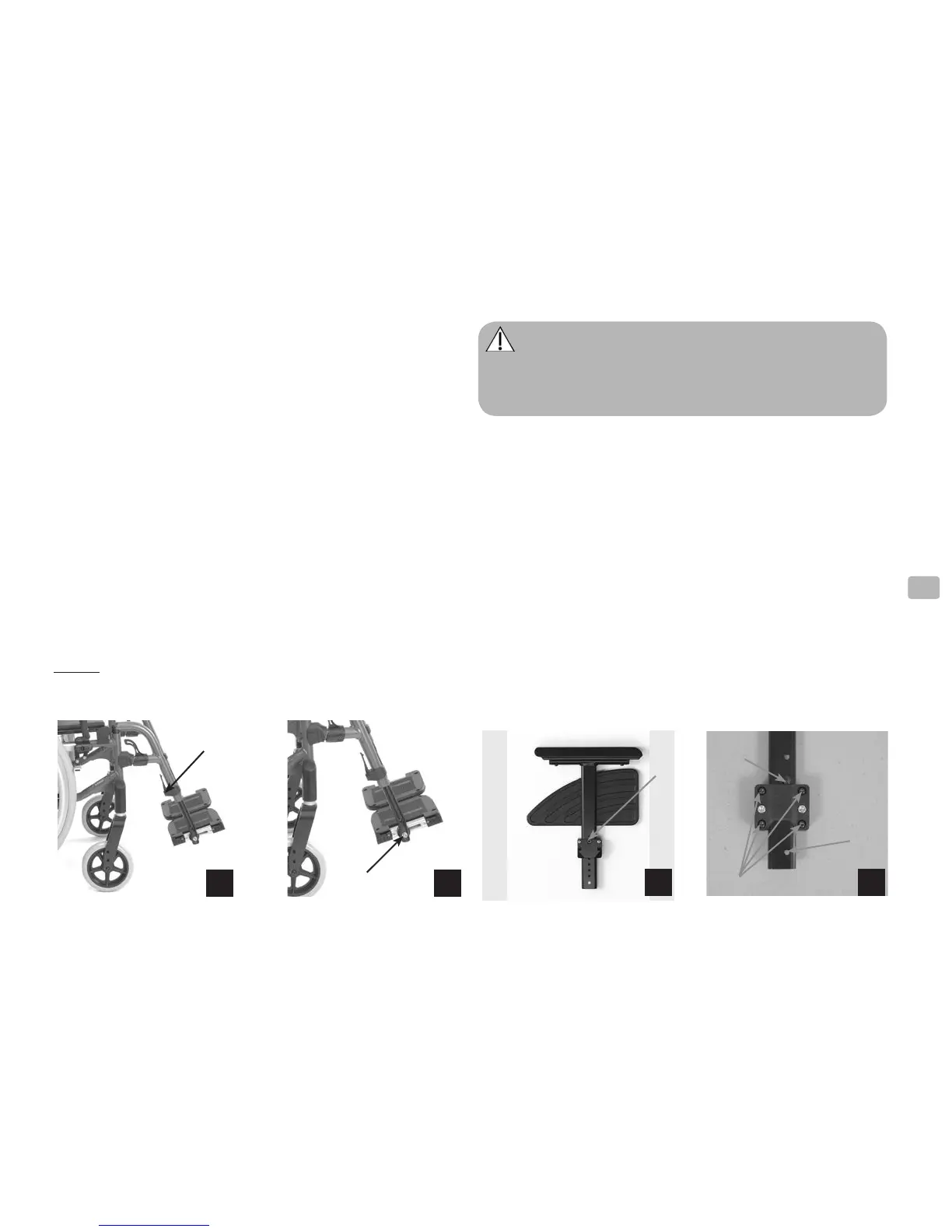

- Footrests (photos 10 & 11) : the footplate can be lifted
during transfers footrests are height adjustable and can be
equipped with a xed or articulated footplate (optional).
Loosen the screw (A) to adjust to the desired height, rmly
tighten the screw after adjustment.
The footplate can be articulated by indexed plate (optional)
loosen the screw (B), adjust to the desired angle and tighten
securely.
- Straps : to ensure a good position of the feet, two types of
straps can be provided; the heelrest strap (plain or adjustable
by Velcro fasteners) and the calfpad strap attached to the
footrest support are both adjustable by Velcro fasteners.
Note : the standard footrest supports and legrests are
mounted in pairs on the wheelchair; whenever you remove
them, remember that you have a right side and a left side !
Never lift the wheelchair by the footrest supports or
legrests !
Keep your ngers away from movable parts during folding,
disassembling or adjustment to prevent injuries !
2.1.5 Armrests
- Removable :
• Simple n°1 (photos 12 & 13) : to remove armrests, simply
pull them up. Previously, press on the push pin (C) located
at the bottom of the armrest vertical upright. Reverse
the procedure to reinstall them. To adjust their height (4
positions), remove the screw (A), adjust to the desired height
and reposition the screw (A), tighten without forcing.
The armrests with central xation (n°1 & n°4) from now on
are equipped with a support adjustable (in 2 parts) which
enables you to reduce the plays and to facilitate the vertical
tube extraction, it is necessary to tighten or loosen the 4
screws (B) according to the anticipated result (photo 13).
10 11
B
A
12
A
B
13
A
C
