4.3. Specic attachment for Comfort version only
(available as a kit).
1- Install the lateral belts on top, see detail A:
- wrap the lateral belt around the backrest tube (small buckle
for 40 cm seat depth and large buckle for 45 cm) and cover
the shell attachment.
- the lateral belt must be placed on the shell xation, see
detail A.
- rmly tighten the lateral belt.
2- Lock the lateral belt, see detail B:
- pass the small nylon loop on through the side support, pull
until the hook is in locked position.
Note: to release the lateral belt hook, pull on the small nylon
loop until you unlock it.
3- Fit the back brace on the backrest push handle (see
paragraph 2.6.1), remove the trunk support if equipped.
4- Install the snap hooks on the rear tie down bracket, see
detail C
Your Comfort version is now ready to be transported in a
vehicle, see photo 25.
Please strictly follow the rules detailed in the paragraphs 4.1
Observations before transport of wheelchairs in vehicles and
4.2.Restraint systems in the previous pages.
Warning :
This attachment is mandatory to be used
for car transportation, no other attachment is permitted !
See additional information (ref.1537507) joined with the
Comfort attachment kit.

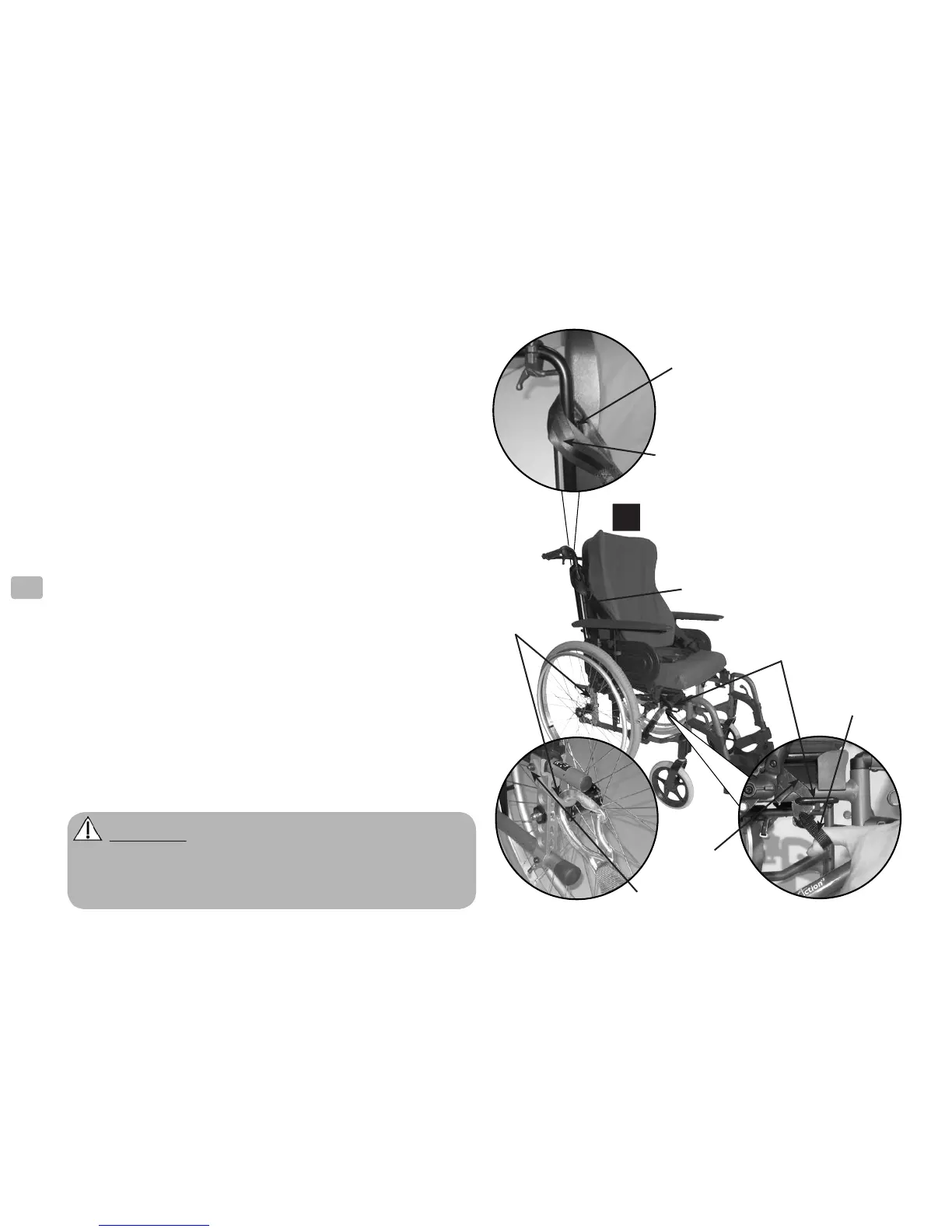

25
Clamp
A
B
Shell
xation
Lateral belt
Side support
Rear tie
down
bracket
Hook
C
M6x60
Small nylon
loop
