Always make sure that the backrest is properly locked
in place before the user settles down in the wheelchair to
prevent any injuries !
- Reclining backrest 0° - 30° - 43 cm (short cane tube) or 51
cm (long cane tube) backrest height.
The intended use of reclining backrest is to get a relaxing,
comfort position for the user. It is not indented to be used
in a dynamic situation and it should be used on horizontal
surface when the backrest is reclined (especially when
the backrest angle is more than 10°). Anti-tippers are
recommended for those who need to feel safer or have a
specic usage.

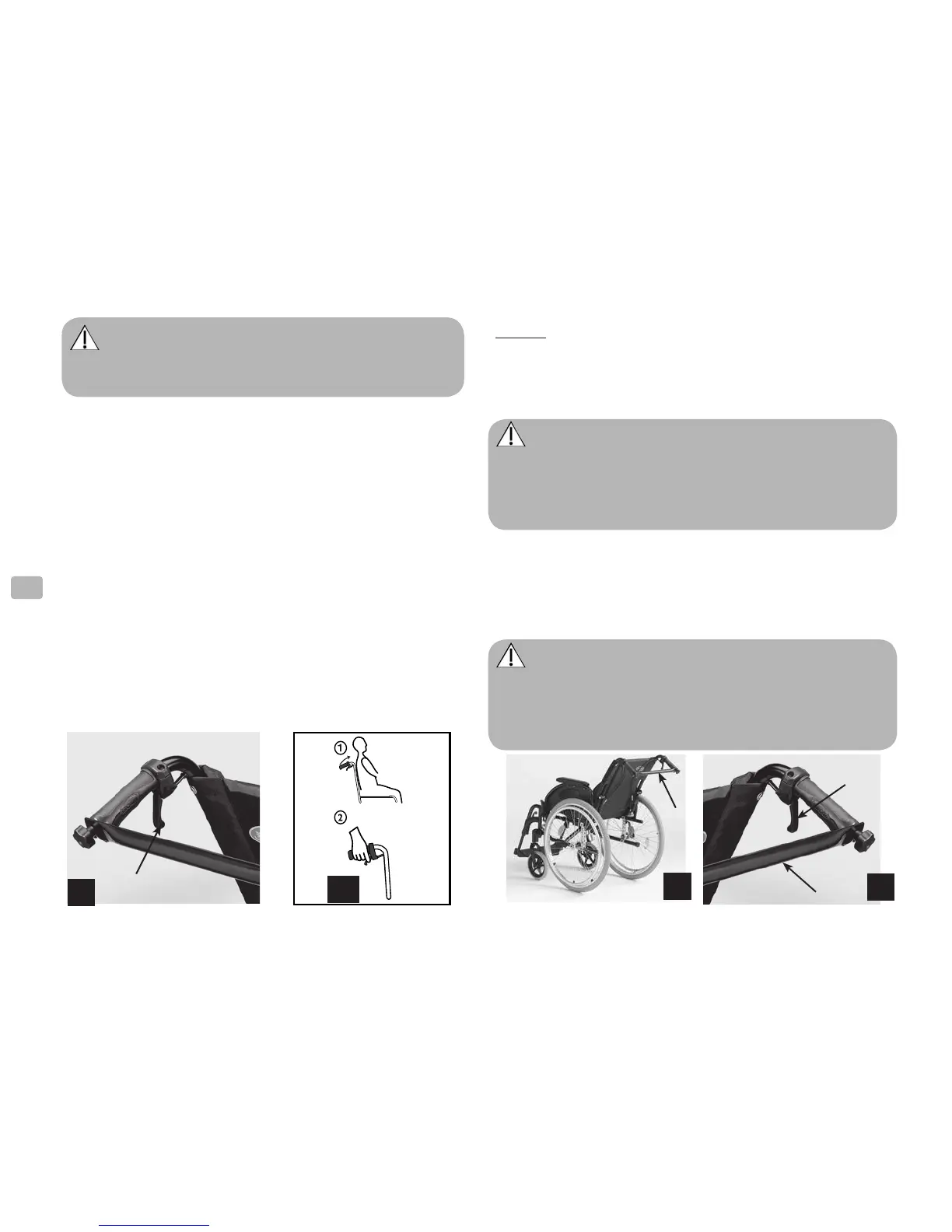

Simultaneously pull the levers (A) to provides the same angle
on both sides, release the levers when you reach the desired
angle.(Photo 5)
Mechanical version
There are 4 angles position by step of 10°.
Note :
Push on the backrest canes before operating the levers,
this is to release the auto-locked security system. (Photo 5A).
Gas strut version 0° to 30° continuously (photo 6).
The gas struts provide a help to the attendant to raise the
user, always operated with the user seated in the wheelchair.
It is recommended that this operation be performed
only by the attendant. Always make sure that the backrest is
locked in place to ensure perfect safety for the user.
Keep away ngers from moving parts (levers, cylinders,
mechanisms, etc.) to prevent injuries !
The backbrace (B) (photos 6 & 6A) links the two push
handles and must always be in position on recliner versions
(see paragraph 2.6.1). Avoid operating levers (A) (photo 6)
during a sideways transfer, for example, in order to prevent
destabilising the user’s position !
If you consider there is an excessive free play in the
recliner mechanism after a simple visual examination of the
ratchet, please contact your Dealer.
To ensure safety for the user, when backrest is reclined, we
recommend to use anti-tippers (available as an option).
