Installing Wheel Locks for Motor/Gearbox Assemblies
1. Determine the appropriate wheel lock mounting position on the wheel lock mounting bracket located on the side frame (FIGURE11).
2. Using the wheel lock mounting holes shown in FIGURE11, Position the wheel lock on the outside of the wheel lock mounting bracket of the
side frame.
3. Using the two hex screws, washers and locknuts, loosely secure the wheel lock to the wheel lock mounting bracket.
4. Repeat STEPS 1-2 for the opposite wheel lock.
5. Adjust the wheel locks. Refer to Adjusting Wheel Locks
on page 115.

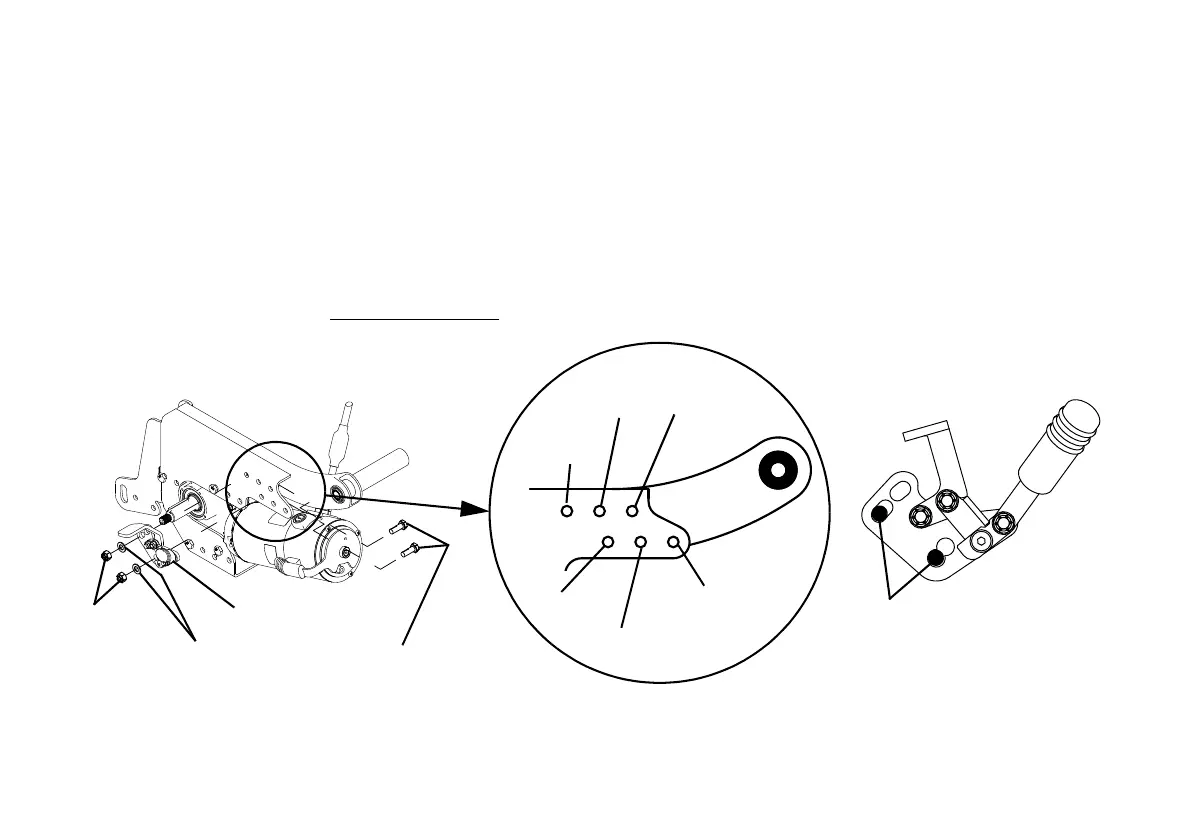

FIGURE11 Installing Wheel Locks for Motor/Gearbox Assemblies

Refer to FIGURE11 for proper positioning of wheel locks.
Wheel Lock
Mounting Bracket
Wheel Lock
Hex Screws
Washers
Locknuts
Standard
Side Frame
1 in Forward
2 in Forward
Standard
1 in Forward
2 in Forward
Wheel Lock
Mounting Holes

Use this side of
mounting hole only.
