11 SETUP/MAINTENANCE
Part No 1143151
91 Invacare 3G Storm Series®

WARNING: FOR WHEELCHAIRS USING 22NF BATTERIES
Batteries with terminal configuration (POSITIVE on the left and NEGATIVE on the right) as shown below MUST be used.
Batteries that have the reverse terminal configuration MUST not be used - otherwise injury and damage may occur.
Terminals MUST have a cross hole in them as shown below.

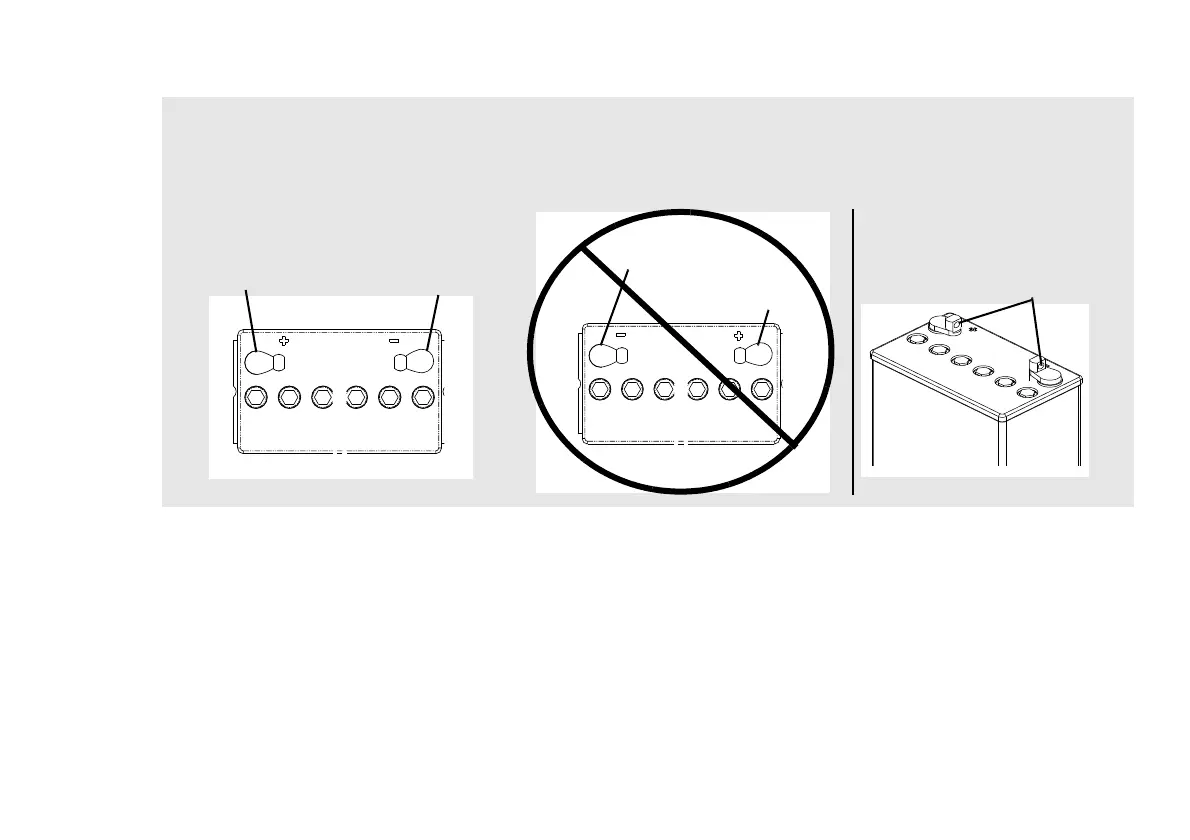

Proper Battery to be Used
POSITIVE (+) Battery
Terminal/Post
NEGATIVE (-) Battery
Terminal/Post
22NF
POSITIVE (+) Battery
Terminal/Post
NEGATIVE (-)
Battery Terminal/Post
DETAIL “A” - TERMINAL
CROSS HOLES
Terminal Cross Holes
22NF
DO NOT Use
