Service Manual Invacare
®
Meteor
21
Reassembly
1. Reassembly takes place in reverse order to disassembly.

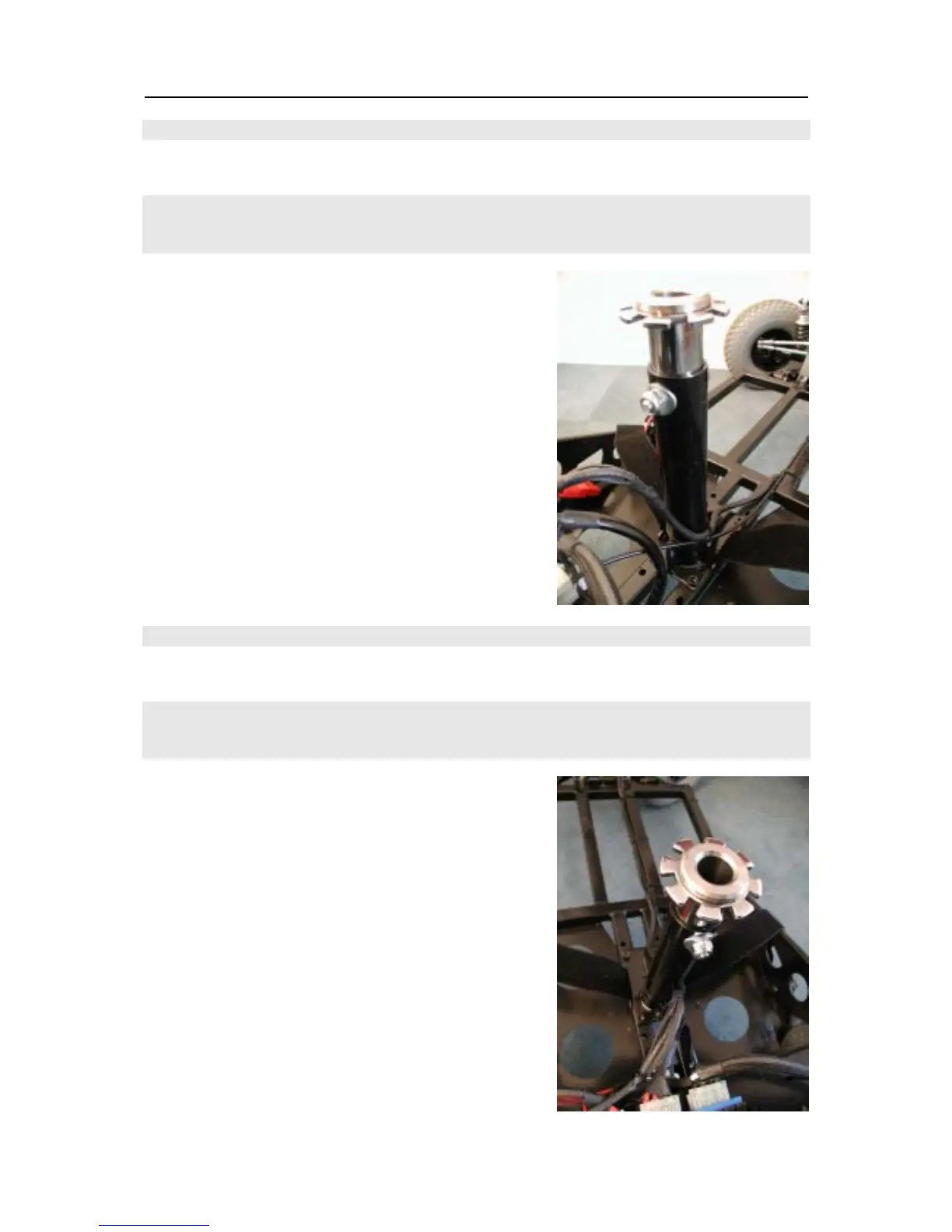

7.1.9 Top seat tube
Disassembly
1. Dismantle seat (see
section 7.1.2).
2. Unscrew the hex bolts and nuts from the seat at-
tachment and remove together with washers.
3. Pull the seat tube out and replace.
Reassembly
1. Reassembly takes place in reverse order to disassembly.
7.1.10 Seat plate
Disassembly
1. Dismantle seat (see section 7.1.2).
2. Dismantle the top seat tube (see section 7.1.9).
3. Remove the Allen screw with together washers and
nuts.
4. Remove the seat plate.
