9.2.4 Adjusting the calf support depth
The calf support has four depth settings.
Pre-requisites:
• 1x 4 mm Allen key
• Swivel the calf support to the front.

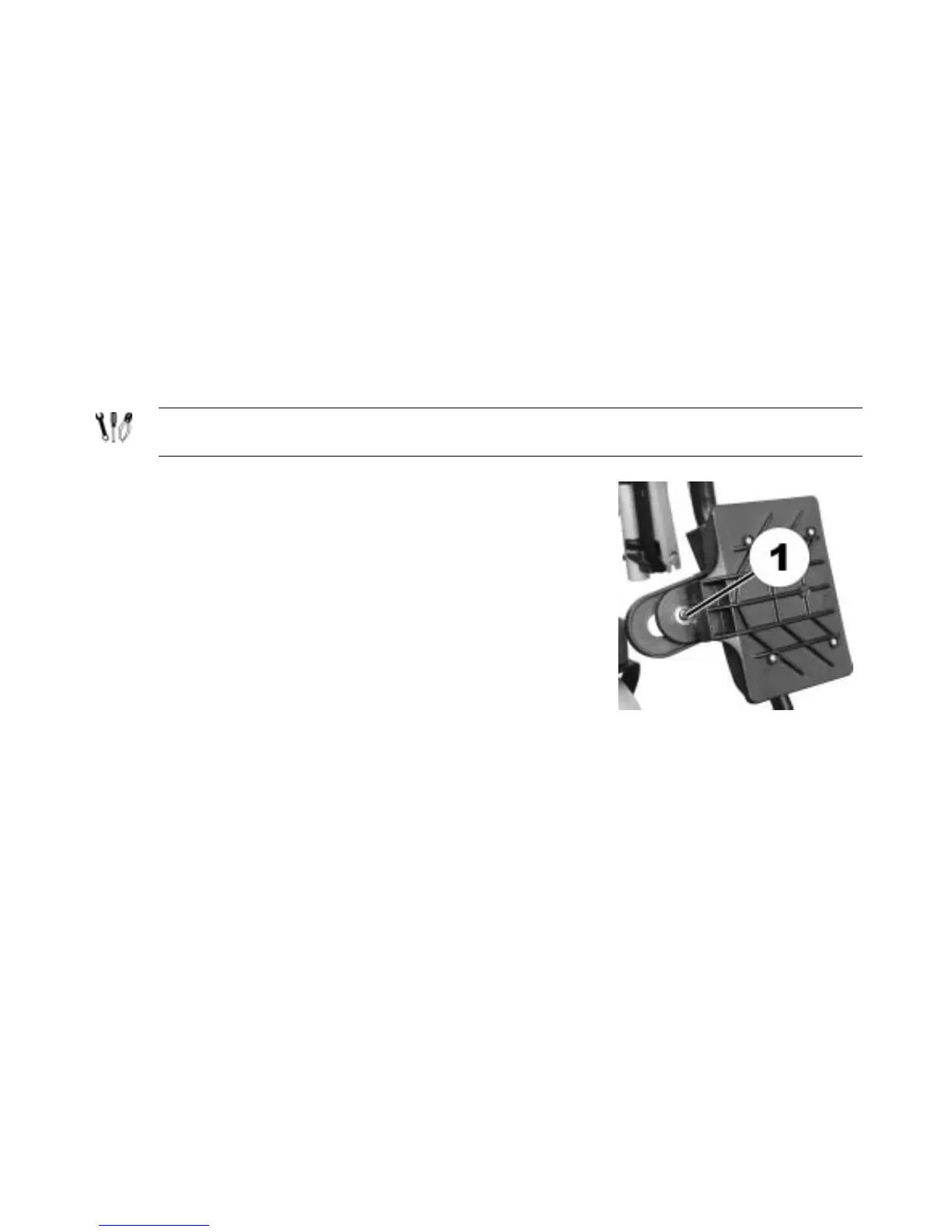

• Release bolt (1) with the Allen key and remove.
• Set the nut on the other side to the required depth.
• Adjust the calf support to match the depth of the nut, put the
screw back in and tighten.
