SECTION 4—JOYSTICK DESCRIPTIONS
MK
5
™NX™Electronics 20 Part No 1110532
INFORMATION
GAUGE
DISPLAY

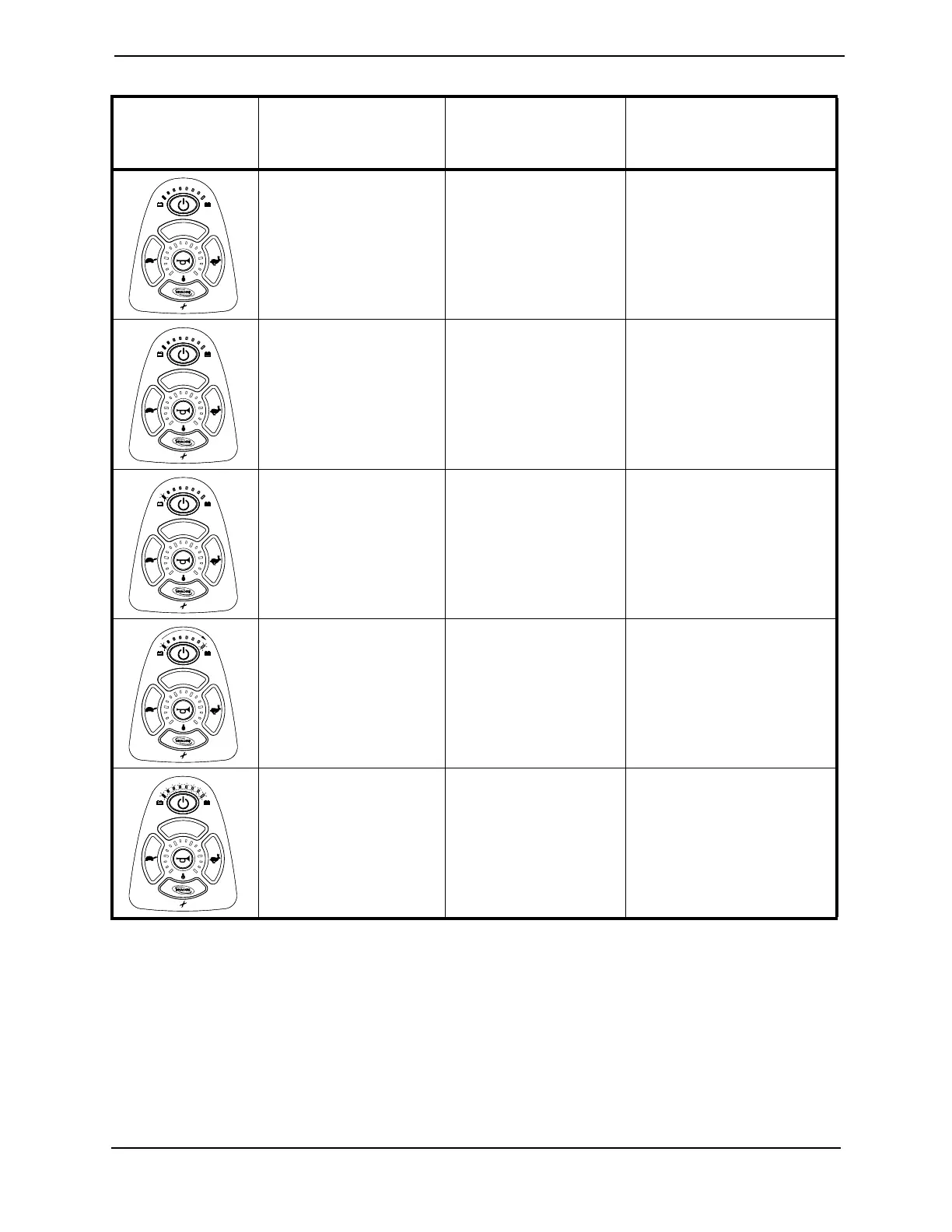

DESCRIPTION DEFINITION COMMENTS
All LEDs are off. Power is off.
All LEDs are on. Power is on. Fewer than three LEDs on
implies reduced battery charge.
Left RED LED is flashing. Battery charge is low. The batteries should be
charged as soon as possible.
Left to Right “chase”
alternating with steady
display.
Joystick is in
programming, inhibit and/
or charging mode.
The steady LEDs indicate the
current state of the battery
charge.
All LEDs are flashing slowly. Joystick has detected Out-
of-Neutral-at-Power-Up
mode.
Release the joystick back to
Neutral.
