4.9 Replacing the Power Switch
R
efers to spare parts kit SP1633123
Risk of damaging the PCB by electro-
static discharge
Handle PCB's only in Electrostatic Protected
Areas
PH1 Phillips key
1. Switch o the control unit and disconnect from
mains supply.
2. Remove the bottom housing (see 4.1).
3. Unplug the red A, green B and two black C wires
from the defective power switch. Discard it.
Risk of malfunction or damage to the
Control Unit
Ensure the red A, green B and two black C
wires are plugged back into their original
positions.
4. Plug the red A, green B and two black C wires
back to their original positions on the new power
switch.
5. Slide the switch into the slit.
6. Reinstall the bottom housing.
A
B
C

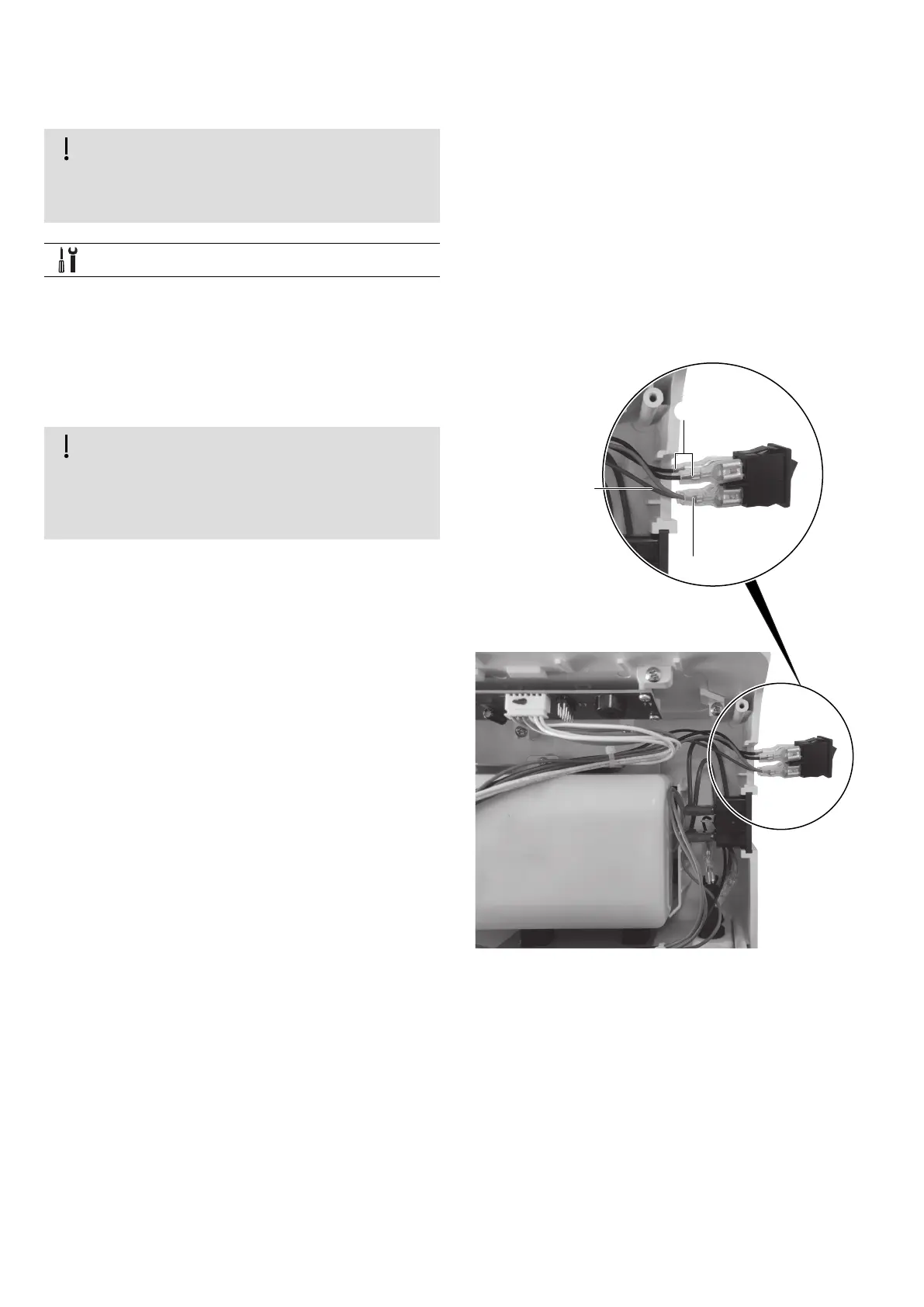

Fig. 4-29
