Invacare Softform Active 2 RX Service Manual

60129676-A 9
Invacare
®
Softform Active
®
2 Rx

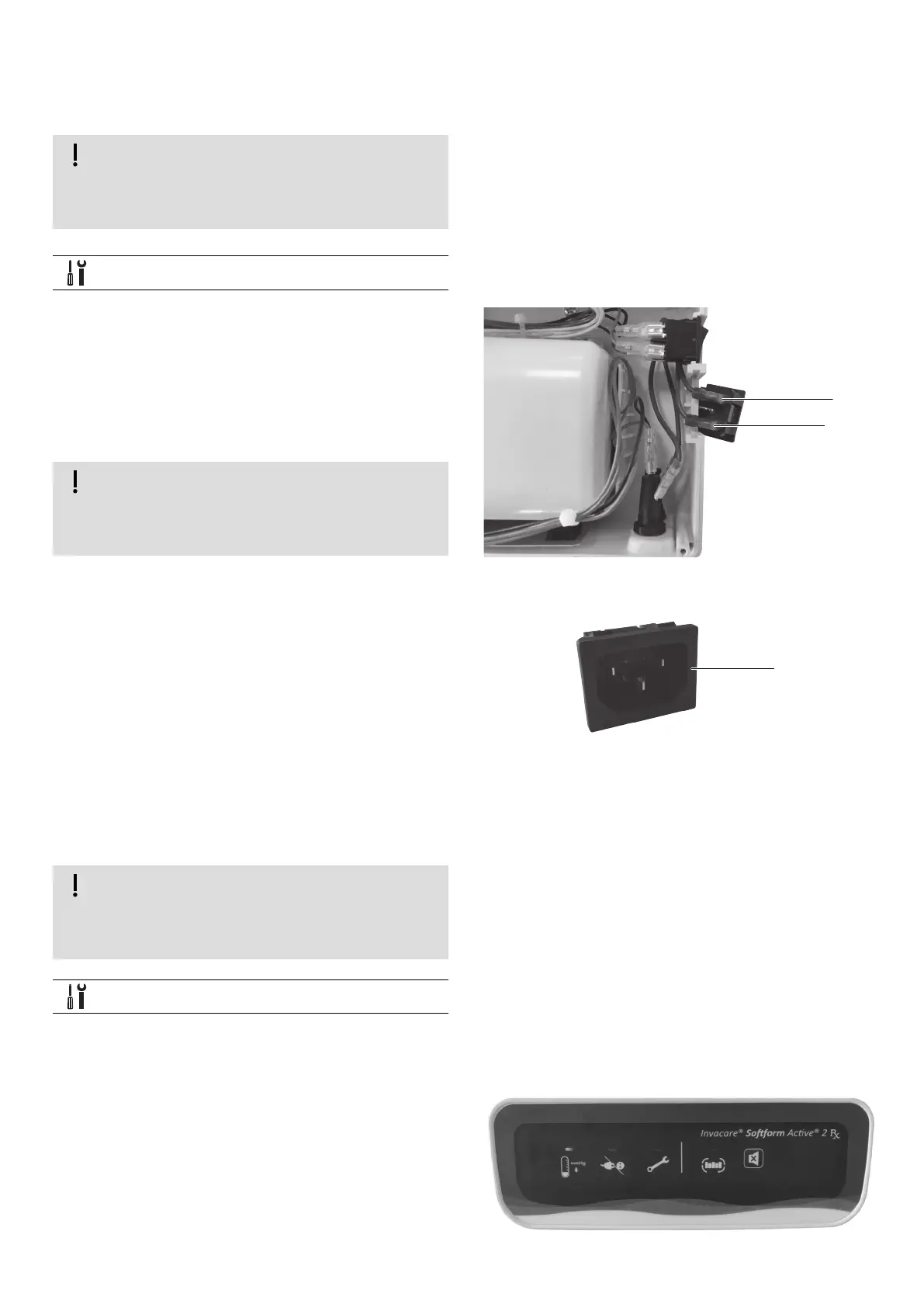

4.2 Replacing the Mains Cable Socket
R
efers to spare parts kit SP1633111
Risk of damaging the PCB by electro-
static discharge
Handle PCB's only in Electrostatic Protected
Areas
PH1 Phillips key
1. Switch o the control unit and disconnect from
mains supply.
2. Remove the bottom housing (see 4.1).
3. Unplug the brown A and blue B wires from the
defective mains socket.
Risk of malfunction or damage to the
Control Unit
Ensure the brown A and blue B wires are
plugged back into their original positions.
4. Plug the brown A and blue B wires to the new
mains socket C, ensuring they are installed in
the original position. Slide the socket into its slit.
5. Reinstall the bottom housing.
4.3 Replacing the User Interface
R
efers to spare parts kit SP1633233
Risk of damaging the PCB by electro-
static discharge
Handle PCB's only in Electrostatic Protected
Areas
PH1 Phillips key
1. Switch o the control unit and disconnect from
mains supply.
2. Remove the bottom housing (see 4.1).
3. Remove the user's interface label from the front
housing.
A
B
Fig. 4-8
C
Fig. 4-9
Fig. 4-10
