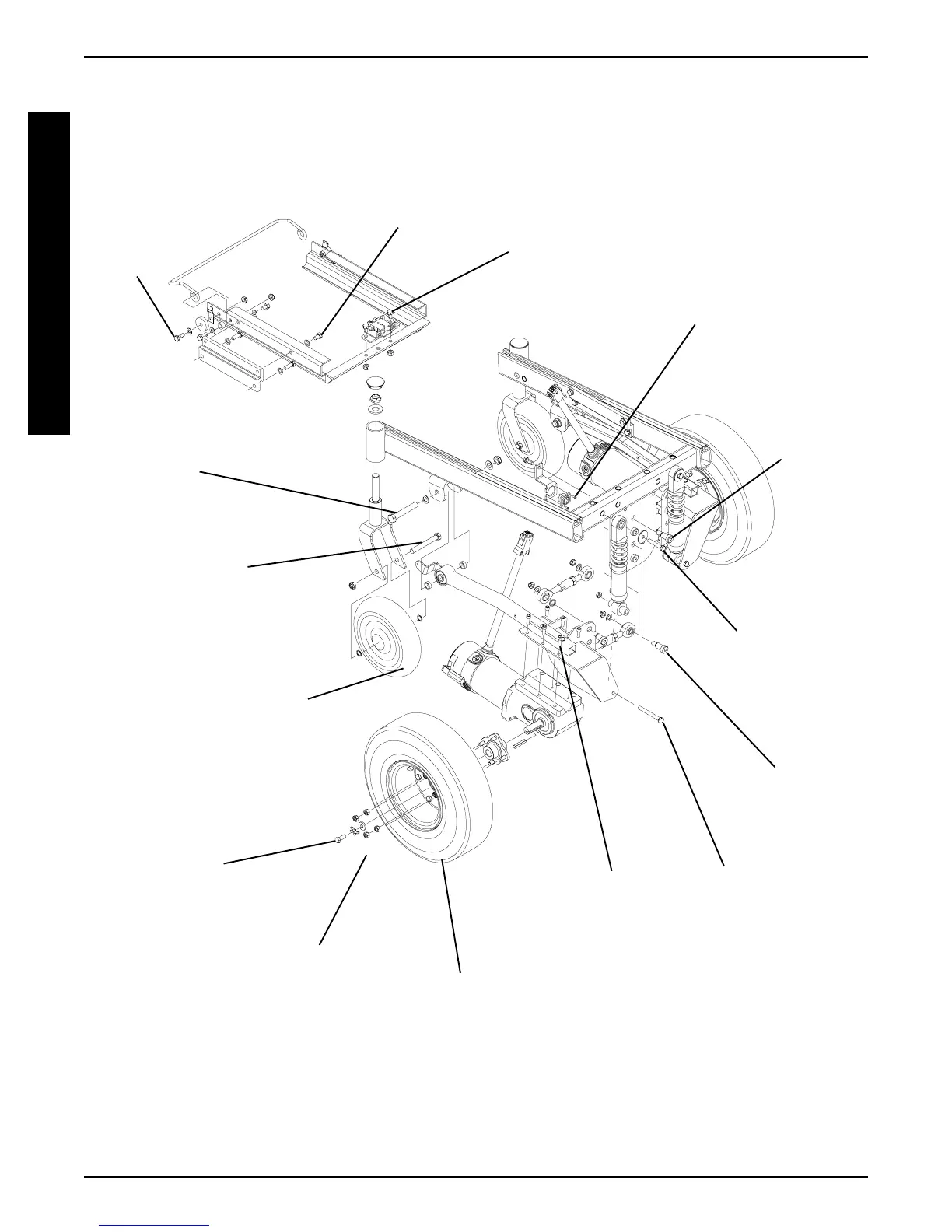

FRONT-WHEEL DRIVE BASE FRAME HARDWARE
TORQUE SPECIFICATIONS
T
O
R
Q
U
E
S
P
E
C
I
F
I
C
A
T
I
O
N
S
Torque to
1020 in/lbs
Torque to
156 in/lbs
Torque to
156 in/lbs
Torque to
156 in/lbs
Torque to
15 in/lbs
Torque to
360 in/lbs
Torque to
156 in/lbs
Torque to
360 in/lbs
Torque to
156 in/lbs
Loctite and
Torque to
75 in/lbs
FRONT OF
WHEELCHAIR
REAR OF
WHEELCHAIR
Torque to
160 in/lbs
8 - inch Wheels -
Torque to 120 in/lbs
9 - inch Wheels -
Torque to 160 in/lbs
Pneumatic with Flat-Free
Wheel Halves - Torque to 160
in/lbs
Pneumatic Wheel Halves -
8 - inch - Torque to 18 in/lbs
9 - inch - Torque to 160 in/lbs
Wheel Halves -
Torque to 75 in/lbs
PROCEDURE 3 HARDWARE TORQUE SPECIFICATIONS
Torque to
160 in/lbs
