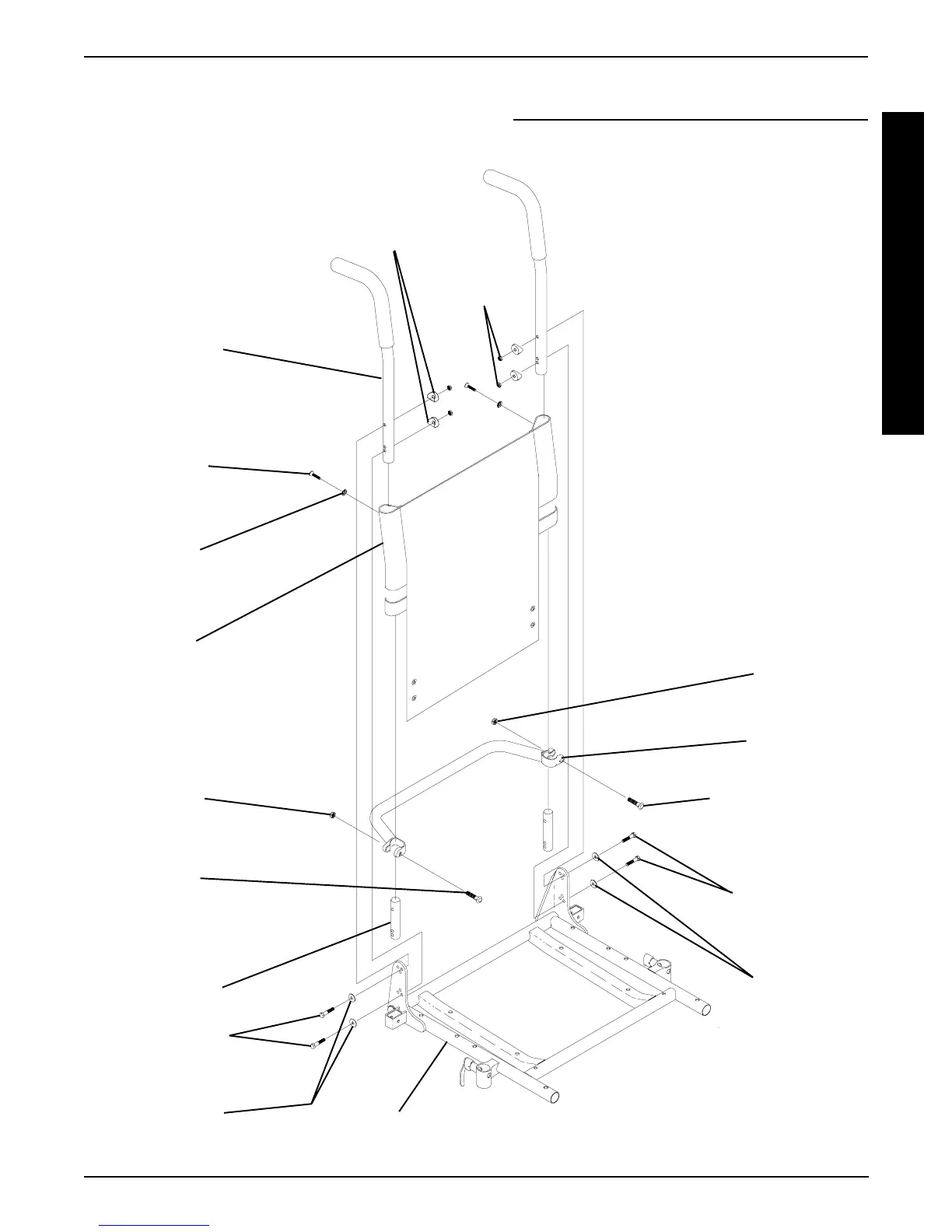

FIGURE 2 - CHANGING BACK HEIGHT
Locknut
(STEPS 6,11)
Mounting Screw
Torque to 60 in/lbs
(STEPS 6,11)
Spreader Bar
(STEPS 6,17)
Mounting
Screw
(STEPS 2, 14)
Washer
(STEPS 2, 14)
Back
Upholstery
Back Cane
(STEPS 3, 10)
Insert
(STEPS 4,8)
Seat Frame
Mounting Screws
Torque to 75 in/lbs
(STEPS 3, 13)
Washers
(STEPS 3, 13)
Mounting Screws
(STEPS 3, 13)
Washers
(STEPS 3, 13)
Spacers
(STEPS 3, 13)
Locknuts
(STEPS 3, 13)
Locknut
(STEPS 6,11)
Mounting
Screw
(STEPS 6,11)
17. If necessary, reposition the spreader bar at the cor-
rect height for the corresponding back height and
torque the mounting hardware to 60-inch pounds.
18. Reinstall the armrest onto the wheelchair. Refer to
INSTALLING/REMOVING FLIP BACK ARMRESTS
in PROCEDURE 4 of the owners manual, 1081227.
BACK FRAME PROCEDURE 8
