10.2 Convenient program upgrade for unit

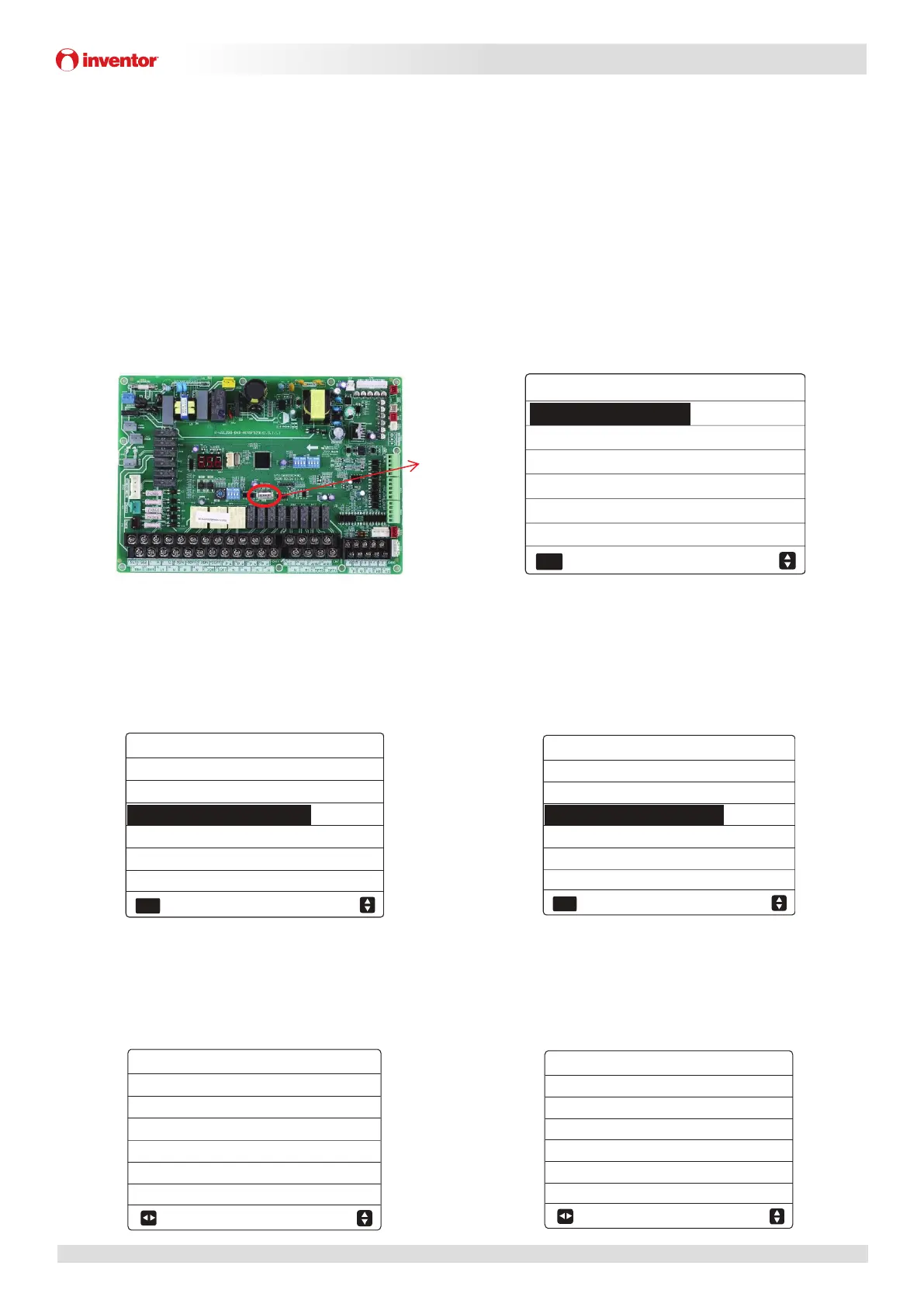

There is no need to carry any heavy equipment but only USB disk can realize program upgrade. Steps are as follows:
Step 1:
Copy new program in U disk root directory where other files in bin format are not allowed in
Step 2:
Power on and make sure communication is normal.
Step 3:
Plug U disk into the port of hydronic PCB.
“USb” appears on digital display Wired controller interface automatically changes
Step 4:
Please distinguish between programs for main control PCB and hydronic PCB. Select one of them and press “OK” button
then rate of progress appears. When the process is finished, “SUCCESS” appears below. For upgrading outdoor unit, the
process normally lasts for several minutes while only few seconds is needed for indoor unit.
Select program Finished
Step 5:
Pull out U disk and power on again to finish upgrading program. Check the program version to make sure upgrade is
successful.
Check IDU software version Check ODU software version
OK
WRITE SET PARAMETER
PD25319B84M200415V24.bin
PD25319B86M200421V35.bin
READ SET PARAMETER
USB FUNCTION
OK
READ SET PARAMETER
PD25319B86M200421V35.bin
PD25319B84M200415V24.bin
USB FUNCTION
51%
WRITE SET PARAMETER
OK
READ SET PARAMETER
PD25319B86M200421V35.bin
PD25319B84M200415V24.bin
USB FUNCTION
SUCCESS
WRITE SET PARAMETER
OK
Tbt2 BUFFERTANK_LOW TEMP. XX ℃
OPERATION PARAMETER #00
Tbt1 BUFFERTANK_UP TEMP. XX ℃
Tsolar XX ℃
IDU SOFTWARE XX-XX-XXXXXXX
5/9
ADDRESS
OK
T4 OUTDOOR AIR TEMP XX ℃
OPERATION PARAMETER #00
T3 OUTDOOR EXCHANGE TEMP. XX ℃
TF MODULE TEMP. XX ℃
P1 COMP PRESSURE XX Kpa
9/9
ADDRESS
ODU SOFTWARE XX-XX-XXXXXXX
HMI SOFTWARE XX-XX-XXXXXXX
USB port
