Inventor Matrix Mono Engineering Data Book
Matrix Mono
105
Part 3 - Installation and Field Settings

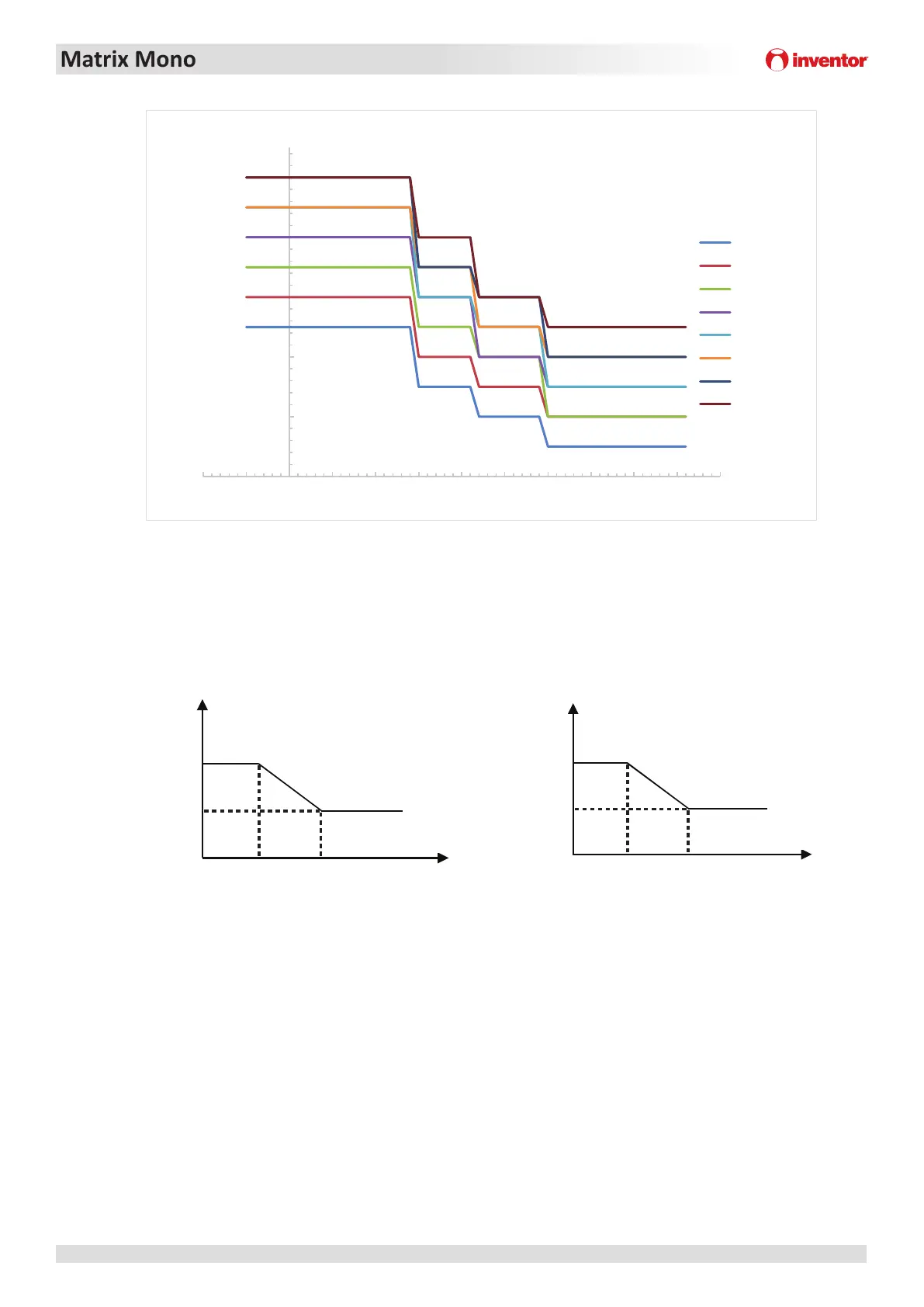

Figure 3-9.5: High temperature curves for cooling mode
1
Leaving water set temperature (⁰C )
Outdoor ambient temperature (⁰C )
Notes:
1. It only has the curves of the high temperature setting for cooling, if the high temperature is set for cooling.
2. Curve 4 is default in high temperature cooling mode and curve 6 is default in ECO mode.
Figure 3-9.6: Automatic setting curve for heating mode Figure 3-9.7: Automatic setting curve for cooling mode
The setting of T1SETH1, T1SETH2, T4H1, T4H2 refer to Part 3, 7.6” HEATING MODE SETTING Menu” and T1SETC1, T1SETC2,
T4C1, T4C2 refer to Part 3, 7.5” COOLING MODE SETTING Menu”.
15
17
19
21
23
25
-10 -5 0510 15 20 25 30 35 40 45 50
T1S(℃)
T4(℃)
Curve 1
Curve 2
Curve 3
Curve 4
Curve 5
Curve 6
Curve 7
Curve 8
