Matrix Mono
Part 2 - Engineering Data
Matrix Mono
27
Part 2 - Engineering Data

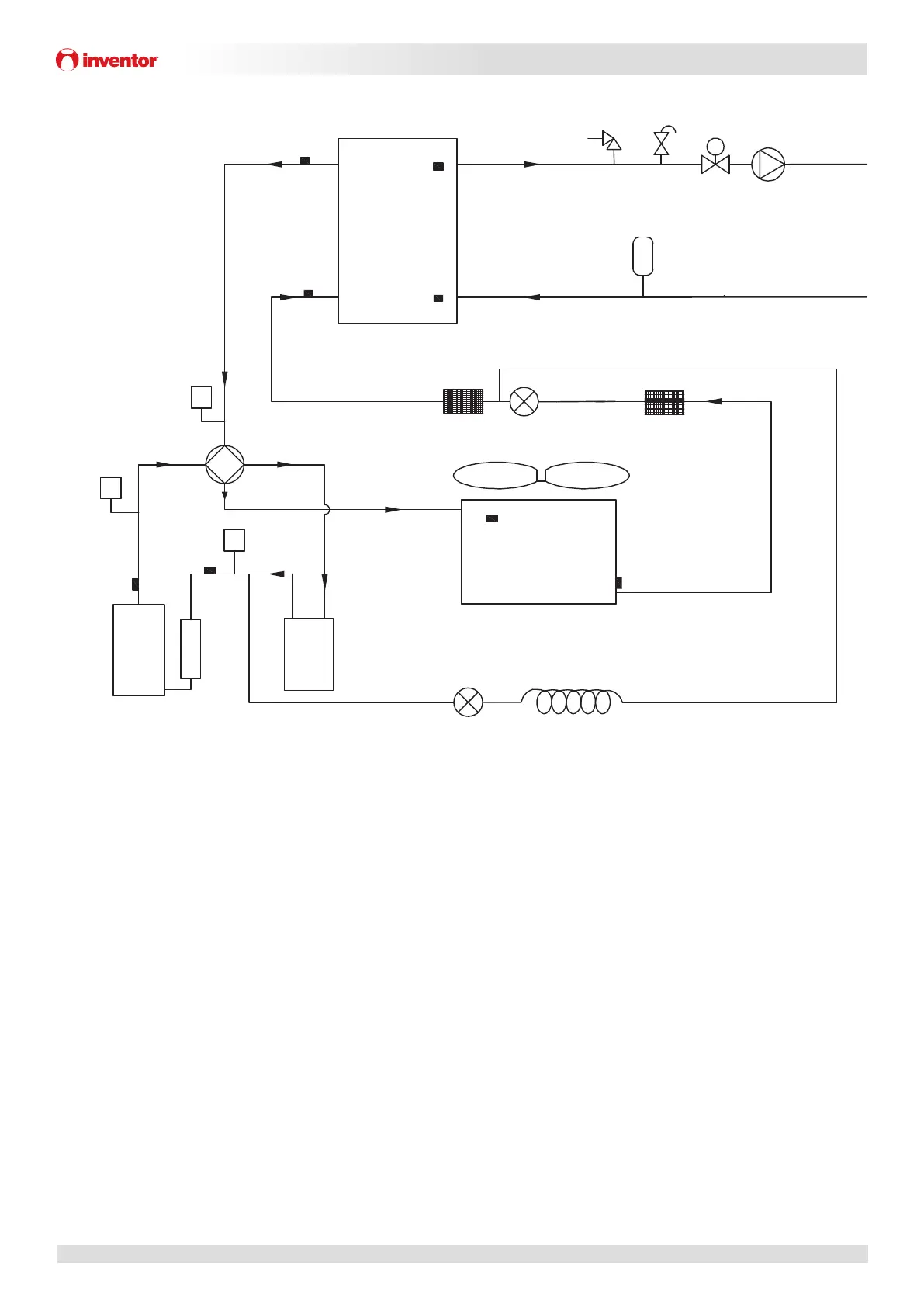

Figure 2-3.1: ATM(H)08(10)S piping diagram
F
d
e
s
c
Compressor
Accumulator
Condenser
EXV
Evaporator
Twin
Twout
T2
T2b
Pressure sensor
Safety valve Air purge valve Pump
Flow switch
H
igh-pressure switch
Expansion vessel
Manometer
Single way solenoid valve Capillary
Discharge temp. sensor
DC motor
T4
T3
Filter
Suction temp. sensor
Filter
Low-pressure switch
