INVENTOR EVI-12 Service Manual

70

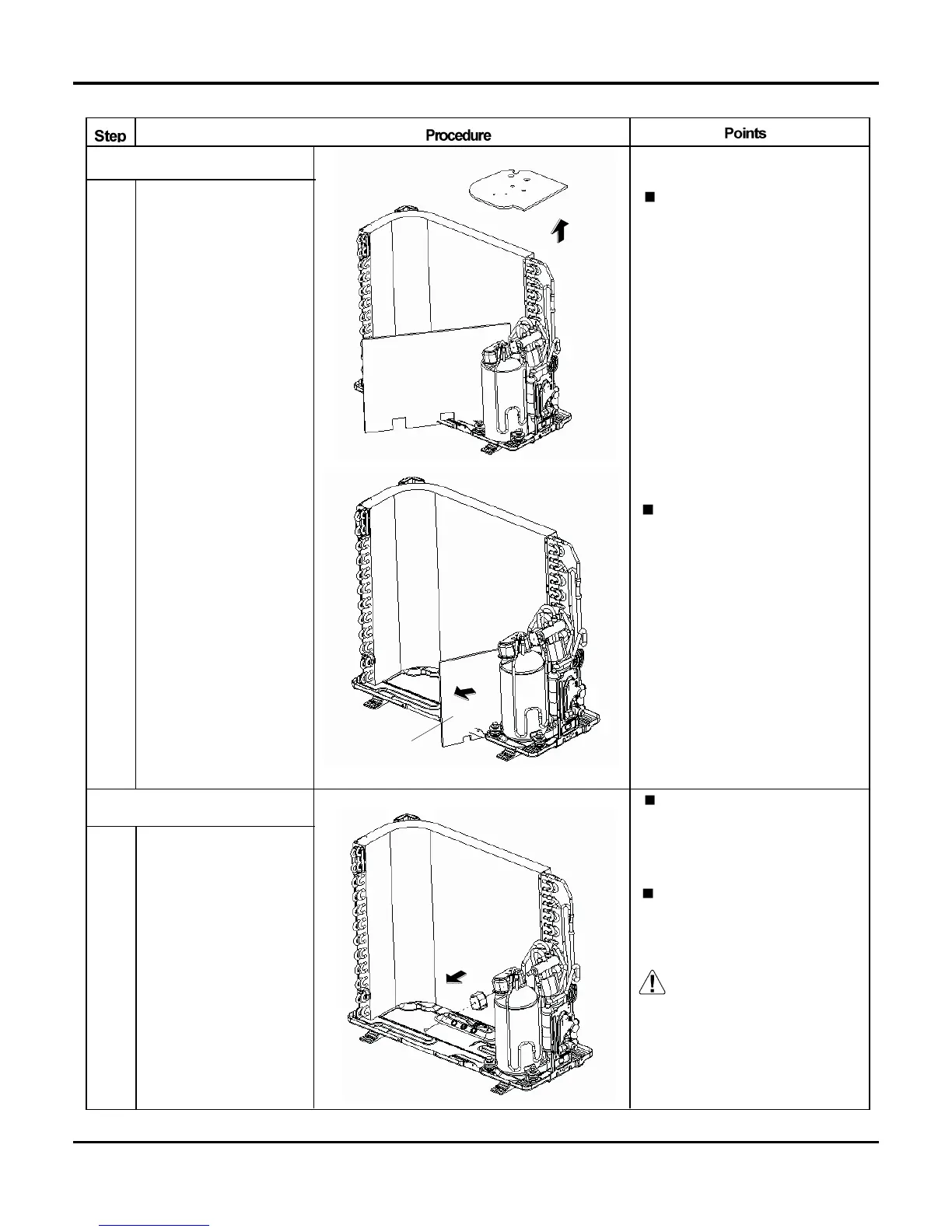

7.Remove the sound blanket.
Lift and remove the
sound blanket (top).
1
Untie the strings and
open the sound blanket.
2
3
1
8.Remove the partition plate.
Since the piping ports on
the sound blanket are
torn easily, remove the
blanket carefully.
Sound blanket.
Lift and remove the
sound blanket (body) as
it is opened.
4 Pull the sound blanket
(inner) out.
Since the piping ports on
the sound blanket are
torn easily, remove the
blanket carefully.
Loosen the screw of the
four way valve coil.
Provide a protective sheet or
a steel plate so that the
brazing flame cannot
influence peripheries.
Be careful so as not to break
the pipes by pressing it
excessively by pliers when
withdrawing it.
CautionCaution
CautionCaution
Caution
Be careful about the four way
valve, pipes and so on, which
were heated up by a gas
brazing machine, so as not
to get burnt your hands.
