Invertek Optidrive E3 - Mechanical Dimensions - IP66 (Nema 4 X) Enclosed Units

Version 2.00 | Optidrive ODE-3 User Guide | 11www.invertekdrives.com
3
Mechanical Installation

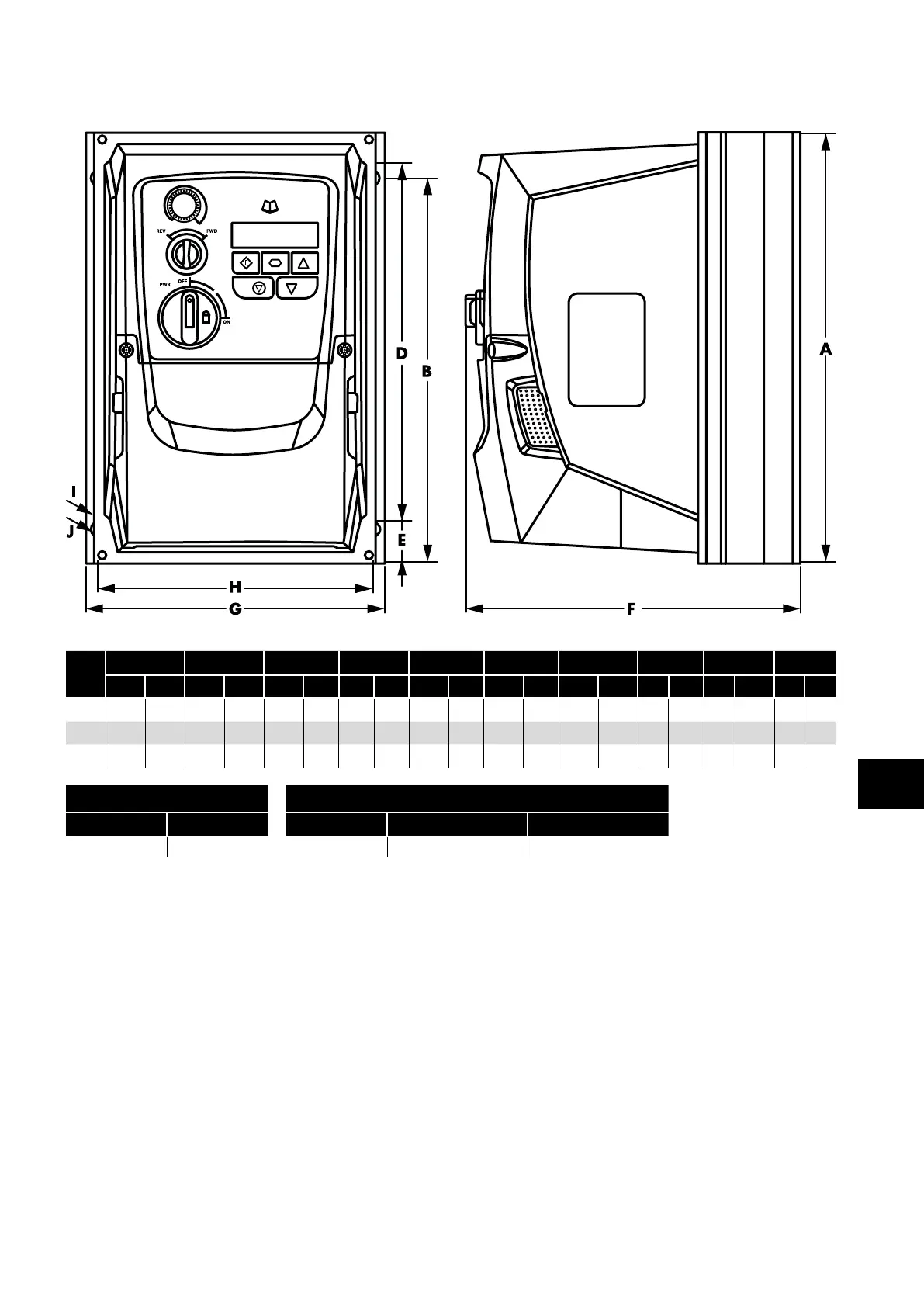

3.5. Mechanical Dimensions – IP66 (Nema 4X) Enclosed Units
0
Drive
Size
A B D E F G H I J
Weight
mm in mm in mm in mm in mm in mm in mm in mm in mm in kg Ib
1 232.0 9.13 207.0 8 .15 189.0 7.44 25.0 0.98 179. 0 7.05 161. 0 6.34 148.5 5.85 4.0 0 .16 8.0 0.31 3.1 6.8
2 257.0 10 .12 220.0 8.67 200.0 7. 87 28.5 1.12 187. 0 7.36 188.0 7.40 176.0 6.93 4.2 0 .17 8.5 0.33 4.1 9.0
3 310.0 12.20 276.5 10.89 251. 5 9.90 33.4 1. 31 252 9.92 211 . 0 8.30 19 7. 5 7. 78 4.2 0 .17 8.5 0.33 7. 6 16. 7
Mounting Bolts Tightening Torques
Frame Size Frame Size Control Terminals Power Terminals
All Frame Sizes 4 x M4 (#8) All Frame Sizes 0.5 Nm (4.5 lb-in) 1 Nm (9 lb-in)
