14 | Optidrive ODE-3 User Guide | Version 2.00 www.invertekdrives.com
Power & Control Wiring
4
4. Power & Control Wiring

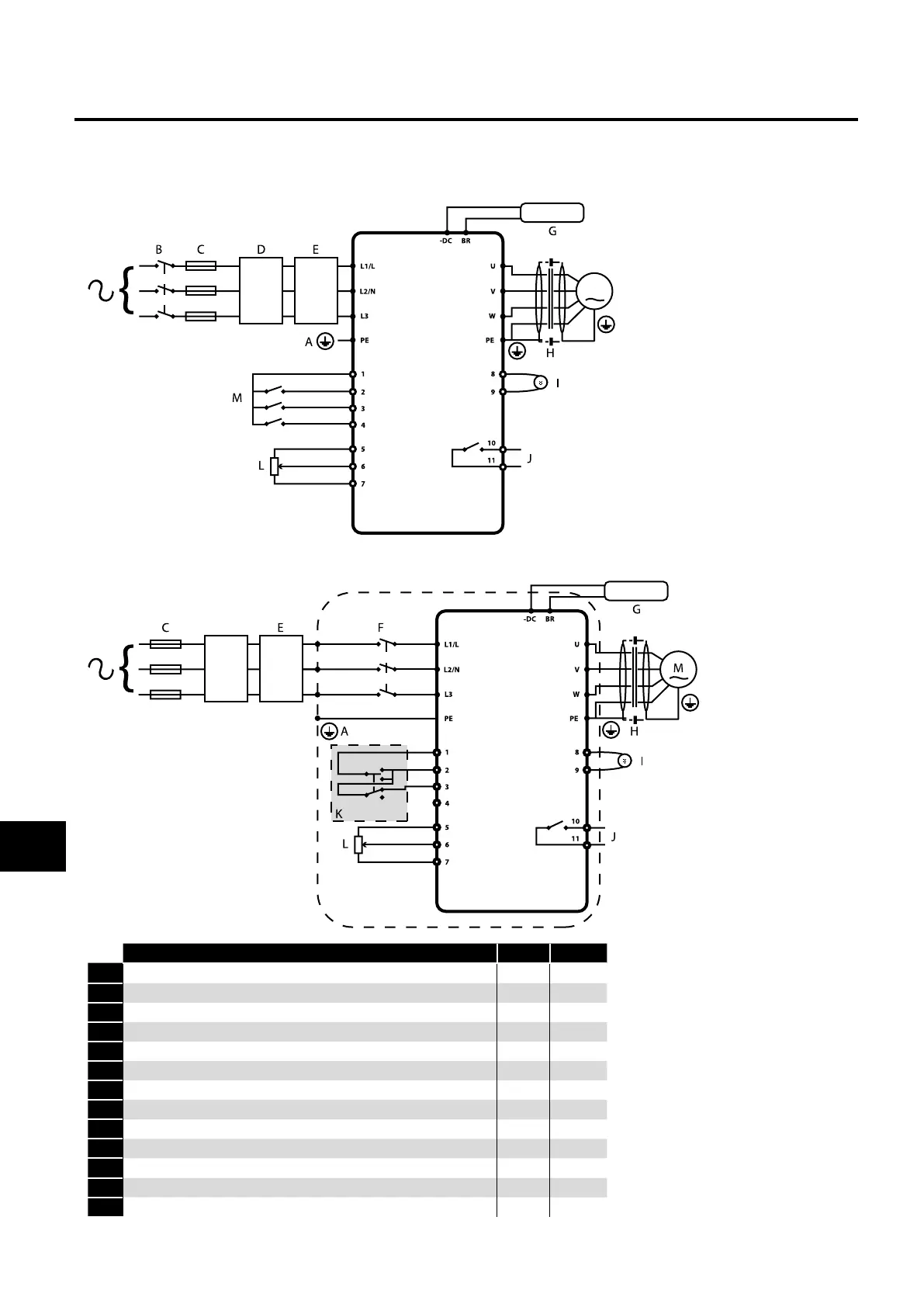

4.1. Connection Diagram
4.1.1. IP20 & IP66 (Nema 4X) Non-Switched Units
4.1.2. IP66 (Nema 4X) Switched Units
Key Sec. Page
A Protective Earth (PE) Connection 4.2 11
B Incoming Power Connection 4.3 12
C Fuse / Circuit Breaker Selection 4.3.2 12
D Optional Input Choke 4.3.3 12
E Optional External EMC Filter 4 .10 14
F Internal Disconnect / Isolator 4.3 12
G Optional Brake Resistor 4 .11 14
H Motor Connection
I Analog Output 4.8.1 14
J Relay Output 4.8.2 14
K Using the REV/0/FWD Selector Switch (Switched Version Only) 4.7 13
L Analog Inputs 4.8.3 14
M Digital Inputs 4.8.4 14
M
D
