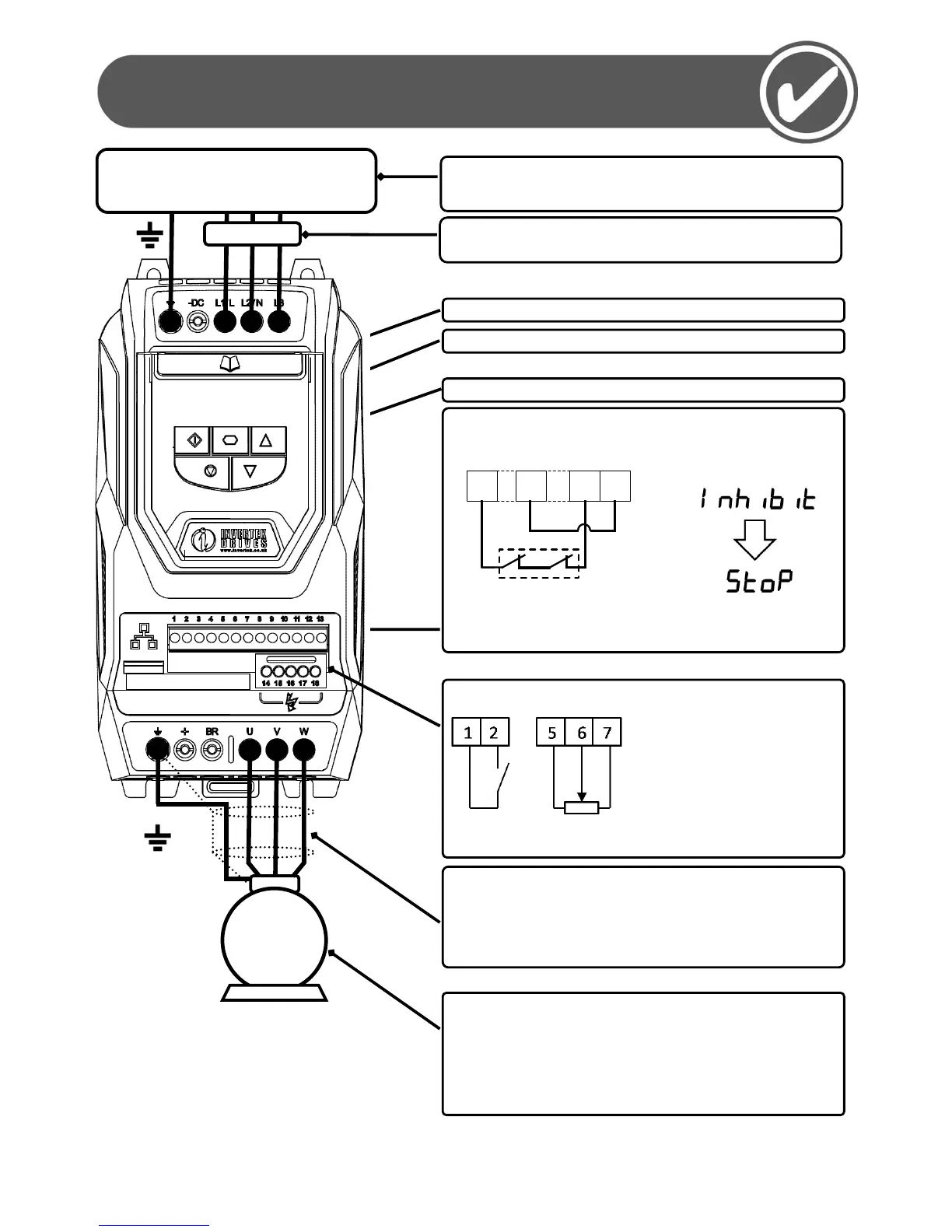

Optidrive P2 IP20 Easy Start Up Guide
AC Supply Connection Supply Voltage
3 Phase Units : Connect L1 L2 L3, PE 200 – 240 Volts + / - 10%
1 Phase Units : Connect L1, L2, PE 380 – 480 Volts + / - 10%
Fuses or MCB
o Check the Drive Rating Information on page 48
Help Card
Display
Keypad Operation can be found on page27
IMPORTANT!
HARDWARE ENABLE FUNCTION
Link the terminals as shown, optionally through switch contacts, to
enable the drive.
Control Terminals
Based on the factory default parameter settings
Run – Stop 10K Speed Pot
Close the switch to run (enable), open to stop
Motor Cable
o For correct cable size, see Technical Data on page 48
o Observe the maximum permissible motor cable length
o For Motor cable lengths > 50 metres, an output filter is
recommended
o Use a screened (shielded cable)
Motor Connection
Check for Star or Delta Connection
Enter the Motor Nameplate Data into the drive Parameters as follows
o Motor Rated Voltage : P1-07
o Motor Rated Current : P1-08
o Motor Rated Frequency : P1-09
o Motor Rated Speed (Optional) : P1-10
To Next Page
