Link the terminals as shown
above, optionally through switch
contacts to enable the drive

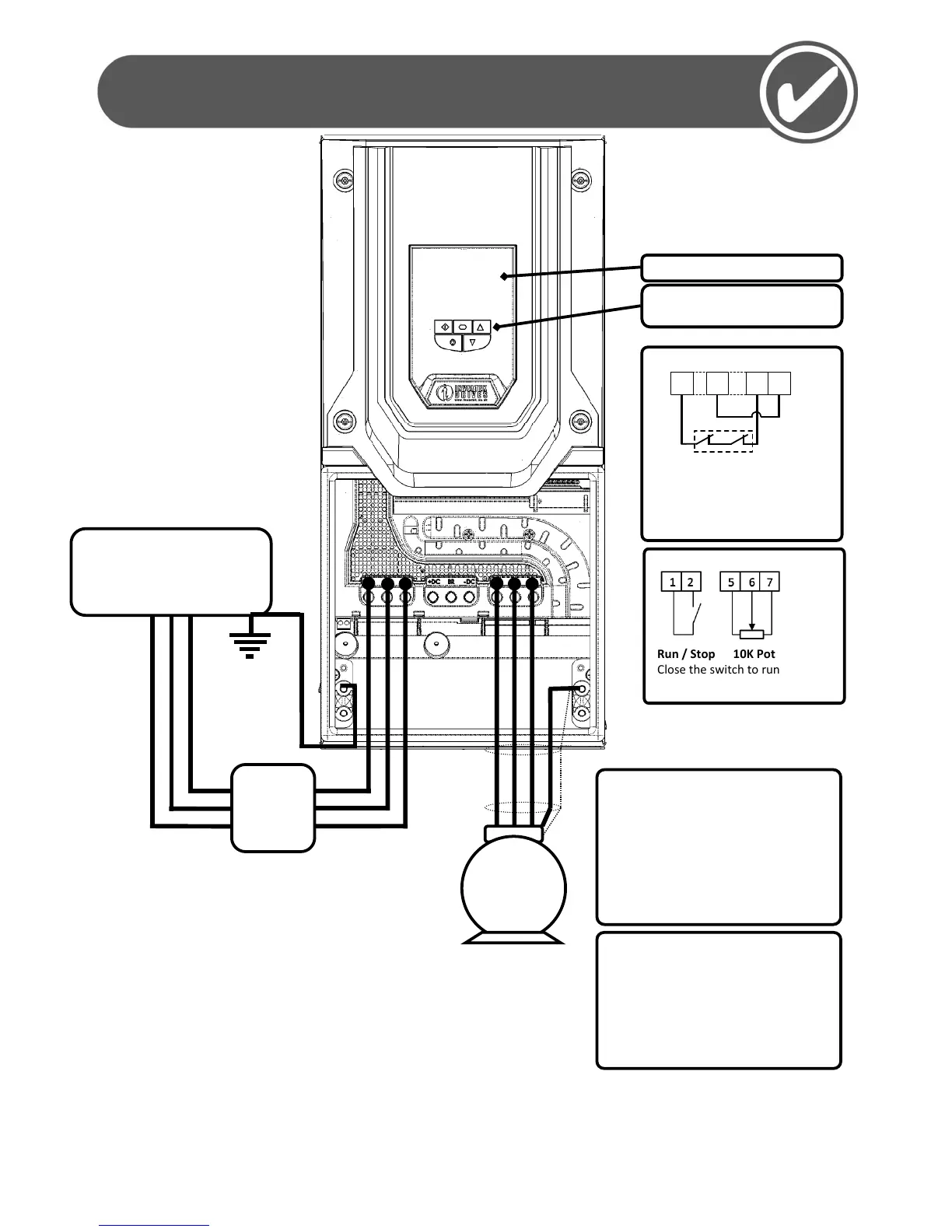

AC Supply Connection Control Terminals
200 – 240 Volts + / - 10%
380 – 480 Volts + / - 10%
L3 L2 L1 PE
Run / Stop 10K Pot
Close the switch to run (enable)
Open the switch to stop
Fuses or MCB Motor Cable
Check drive For correct cable size, see
Rating info on Technical Data on page 48
Page 48 Observe the maximum permissible motor
cable length
For Motor cable lengths > 50 metres, an
output filter is recommended
Use a screened (shielded) cable. The shield
should be bonded to earth at both ends
Motor Connection
Check for Star or Delta Connection
Enter the Motor Nameplate Data into the
drive Parameters as follows
Motor Rated Voltage : P1-07
Motor Rated Current : P1-08
Motor Rated Frequency : P1-09
Motor Rated Speed (Optional) : P1-10
To Next Page
