CHV180 series frequency inverter special for elevator Appendix B
.123.

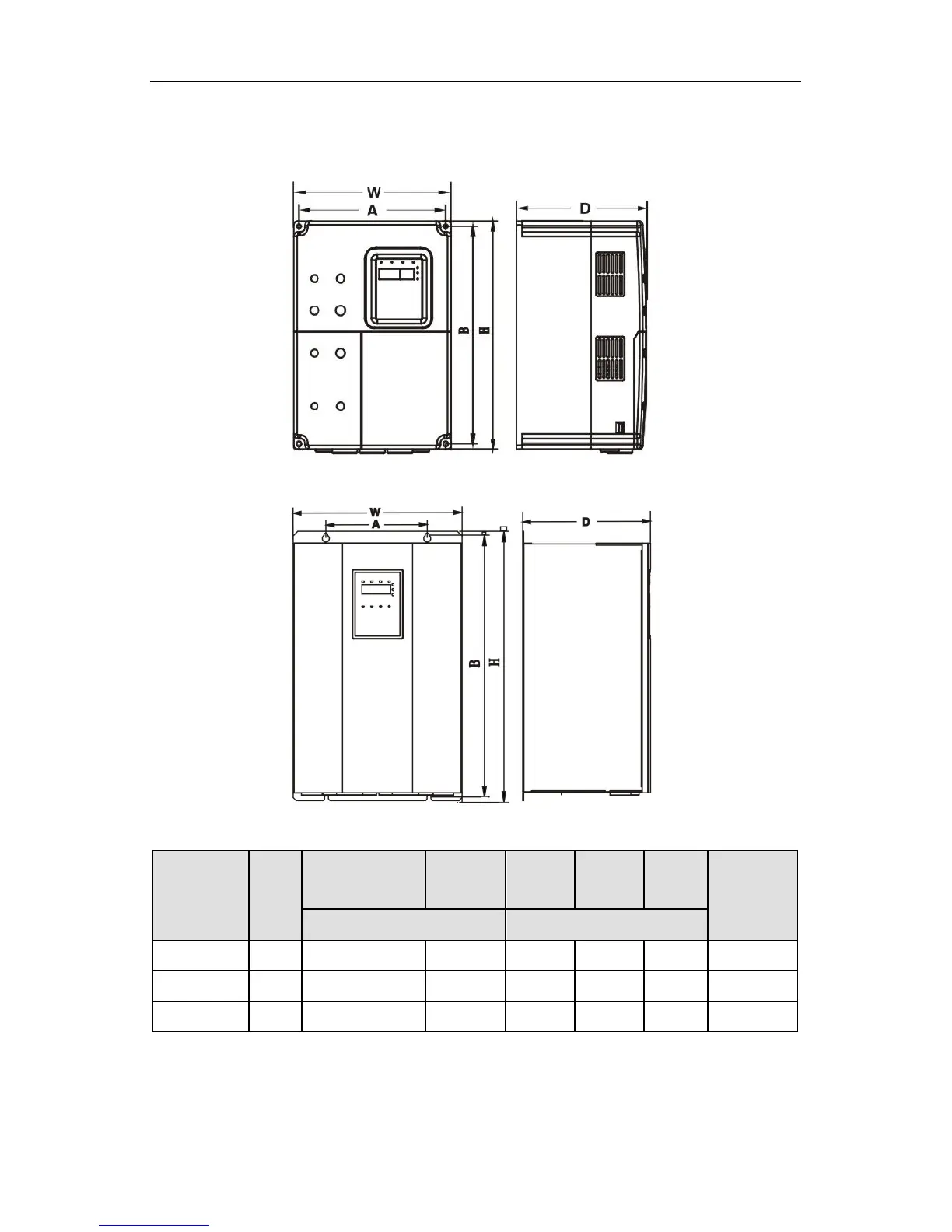

Appendix B: Dimension of the inverter
B.1 External dimension
Figure B.1Dimensions (15kW and below).
Figure B.2 Dimensions (18.5~30kW).
Power
(kW)
Size
A
(mm)
B
(mm)
H
(mm)
W
(mm)
D
(mm)
Installation
Hole
(mm)
Installation Dimension
External Dimension
4.0~5.5 C 147.5 237.5 250 160 175 5
7.5~15 D 206 305.5 320 220 180 6
18.5~30 E 176 454.5 467 290 215 6.5
