CHV180 series frequency inverter special for elevator Wiring
.15.

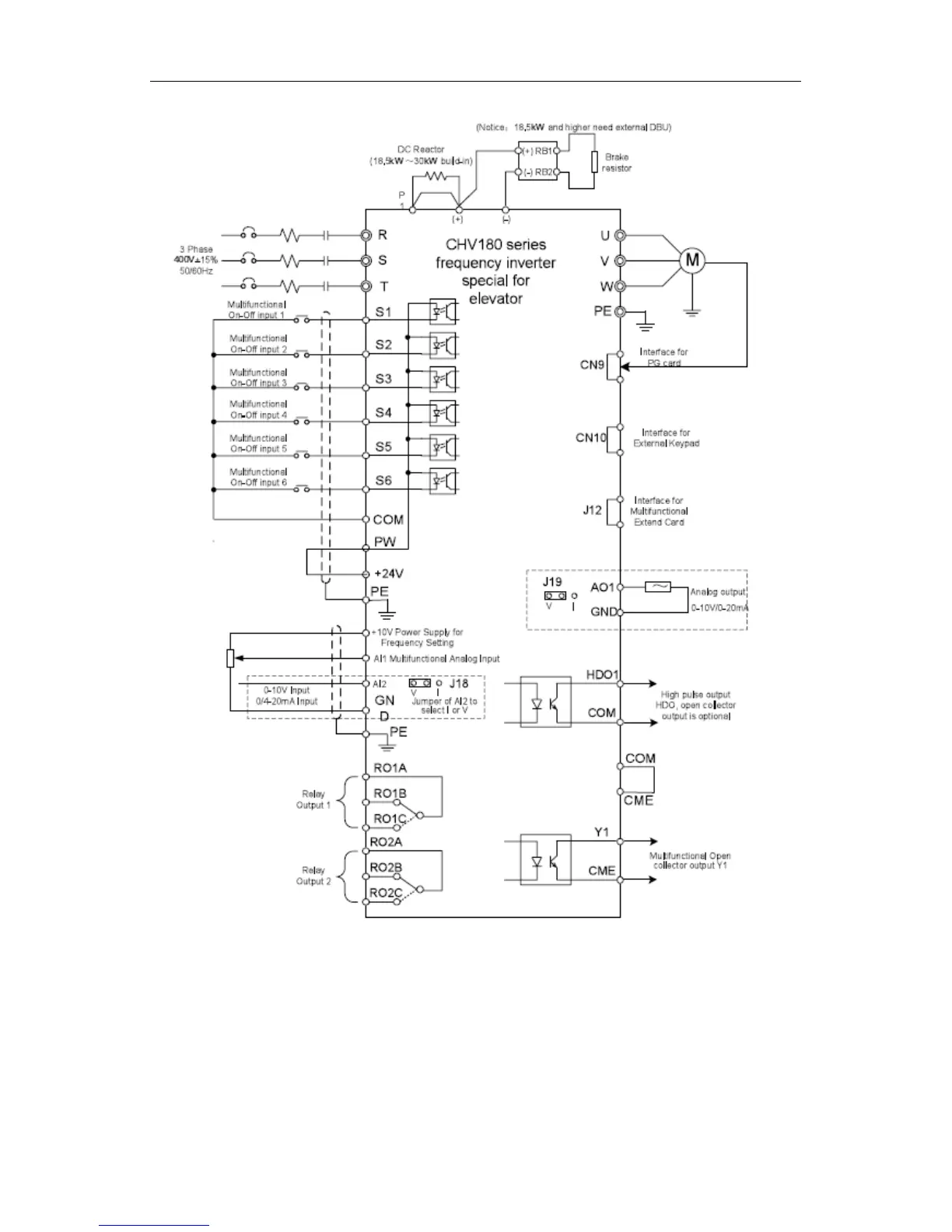

4.3 Typical wiring diagram
Figure4. 6 Wiring diagram.
4.4 Wiring the main circuits
4.4.1 Wiring at the side of power supply
●4.4.1.1 Circuit breaker
It is necessary to connect a circuit breaker which is compatible with the capacity of
inverter between 3ph AC power supply and power input terminals (R, S and T). The
