INVT GD100-2R2G-2-PV User Manual

Goodrive100-PV Series Solar Pumping VFD Options and use
70
VFD power
Output reactor
GD100-090G-4-PV
OCL2-110-4
GD100-110G-4-PV
OCL2-110-4
GD100-132G-4-PV
OCL2-160-4
GD100-160G-4-PV
OCL2-200-4
GD100-185G-4-PV
OCL2-200-4
GD100-200G-4-PV
OCL2-200-4
Note:
 The rated derate voltage of the output reactor is 1%±15%.
 Above options are external, and the customer should specify the model when purchasing.
A.5 Filters
C3 filters are built in GD100-PV series VFDs with rated power of equal to or greater than 4kW.

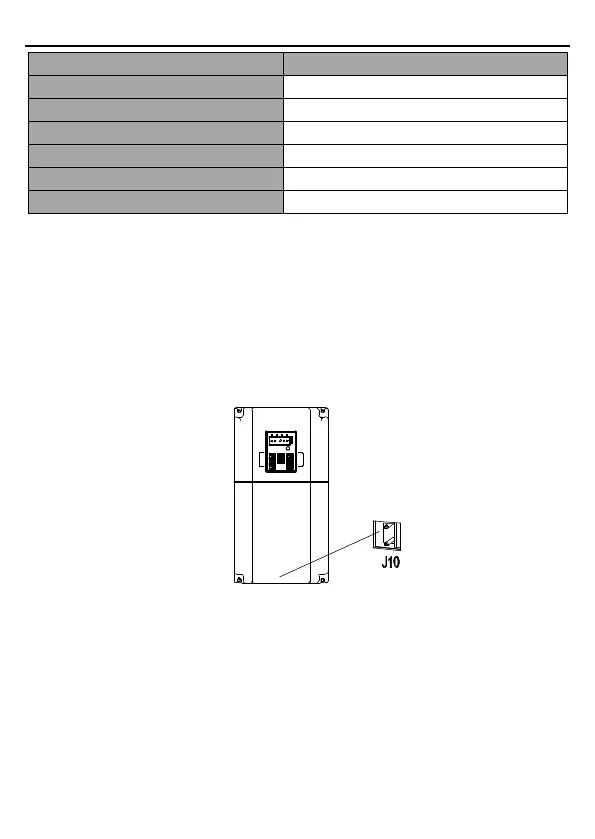

Jumper J10 determines the connection.
Connection method: Open the lower cover, find the location of J10, and insert the jumper
terminals equipped with the VFD.
Note: After the filter is added, EMI input meets requirements for level C3.

INVT GD100-2R2G-2-PV Specifications

General

Rated Power	2.2 kW
Phase	Single-phase
Output Power	2.2 kW
Frequency Range	0-400Hz
Communication Interface	RS485
Storage Temperature	-20°C to +60°C
Control Mode	V/F control
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overheat, Short circuit
Cooling Method	Air cooling
Humidity	5% to 95% (non-condensing)
Altitude	Below 1000 m
Operating Temperature	-10°C to +50°C
