INVT GD20-0R4G-S2 User Manual

Goodrive20 inverters Function Parameters
50
Function
code
Name Detailed instruction of parameters
Default
value
Modify
FWD
REV
COM
K1
K2
Running
command
FWD REV
OFF OFF
OFF
OFF
ON
ON
ON ON
Stopping
Hold on
Forward
running
Reverse
running

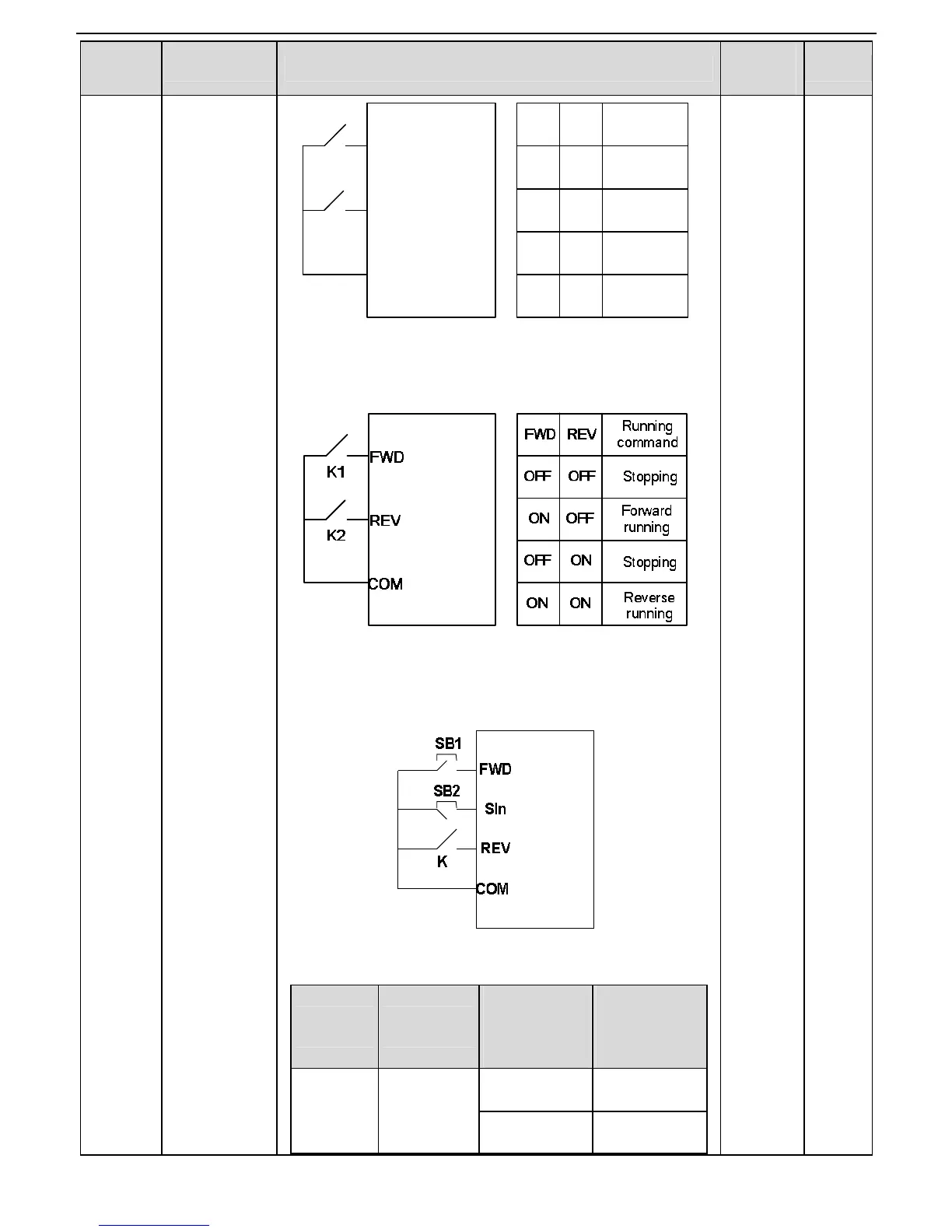

1:2-wire control 2; Separate the enable from the direction.
FWD defined by this mode is the enabling ones. The
direction depends on the state of the defined REV.
2:3-wire control 1; Sin is the enabling terminal on this mode,
and the running command is caused by FWD and the
direction is controlled by REV. Sin is natural closed.
The direction control is as below during operation:
Sln REV
Previous
direction
Current
direction
ON OFF→ON
Forward Reverse
Reverse Forward
