INVT GD20-0R7G-4-EU User Manual

Goodrive20-EU series VFD Function parameters
56
Function
code
Name
Detailed instruction of parameters
Default
value
Modify
VFD decelerates from the output maximum
voltage to the output minimum voltage.
Setting range: 0.0 – 3600.0s

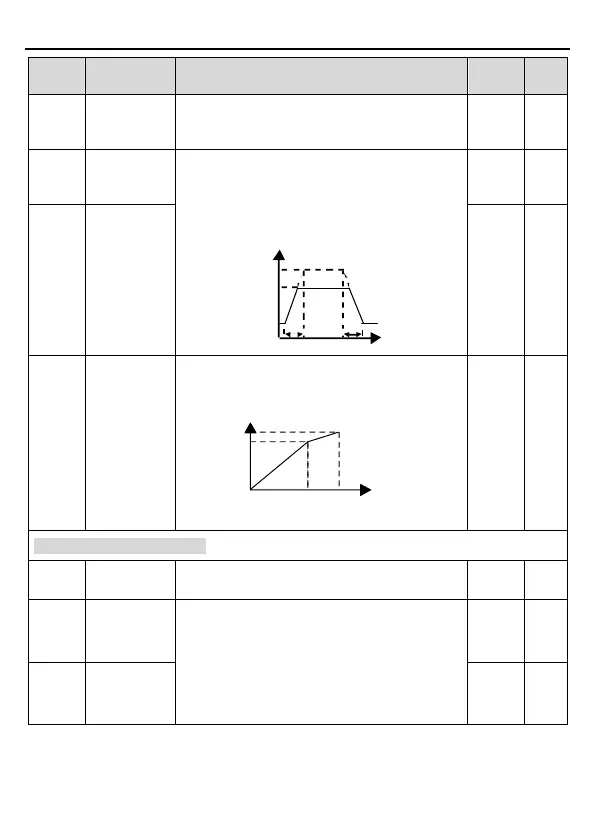

P04.31
Output
maximum
voltage
Set the upper and low limit of the output voltage.
Setting range of P04.31: P04.32 – 100.0%
(the rated voltage of the motor)
Setting range of P04.32: 0.0% – P04.31
(the rated voltage of the motor)
Vmax
Vmin
Vset
t1
t2
T
t1=P04.29
t2=P04.30
100.0%
◎
P04.32
Output
minimum
voltage
0.0%
◎
P04.33
Flux
weakening
coefficient in
constant
power zone
Adjust the output voltage of the VFD in SVPWM
mode during flux weakening.
Note: Invalid in the constant torque mode.
Output Voltage
Output frequency
(P04.33-1.00)*Vb
out
b
V
V
f 2f
b
b
Setting range of P04.33: 1.00 – 1.30
1.00
○
P05 Group Input terminals
P05.00
HDI input
selection
0: HDI is high pulse input. See P05.50 – P05.54
1: HDI is switch input
0
◎
P05.01
S1 terminal
function
selection
Note: S1 – S4, HDI are the upper terminals on
the control board and P05.12 can be used to set
the function of S5 – S8
0: No function
1: Forward rotation operation
2: Reverse rotation operation
1
◎
P05.02
S2 terminal
function
selection
4
◎
