Goodrive200 inverters Installation guidelines
30
2. Strip the motor cable and connect the shield to the grounding terminal of the inverter by
360 degree grounding technique. Connect the phase conductors to U, V and W terminals
and fasten.
3. Connect the optional brake resistor with a shielded cable to the designated position by the
same procedures in the previous step.
4. Secure the cables outside the inverter mechanically.

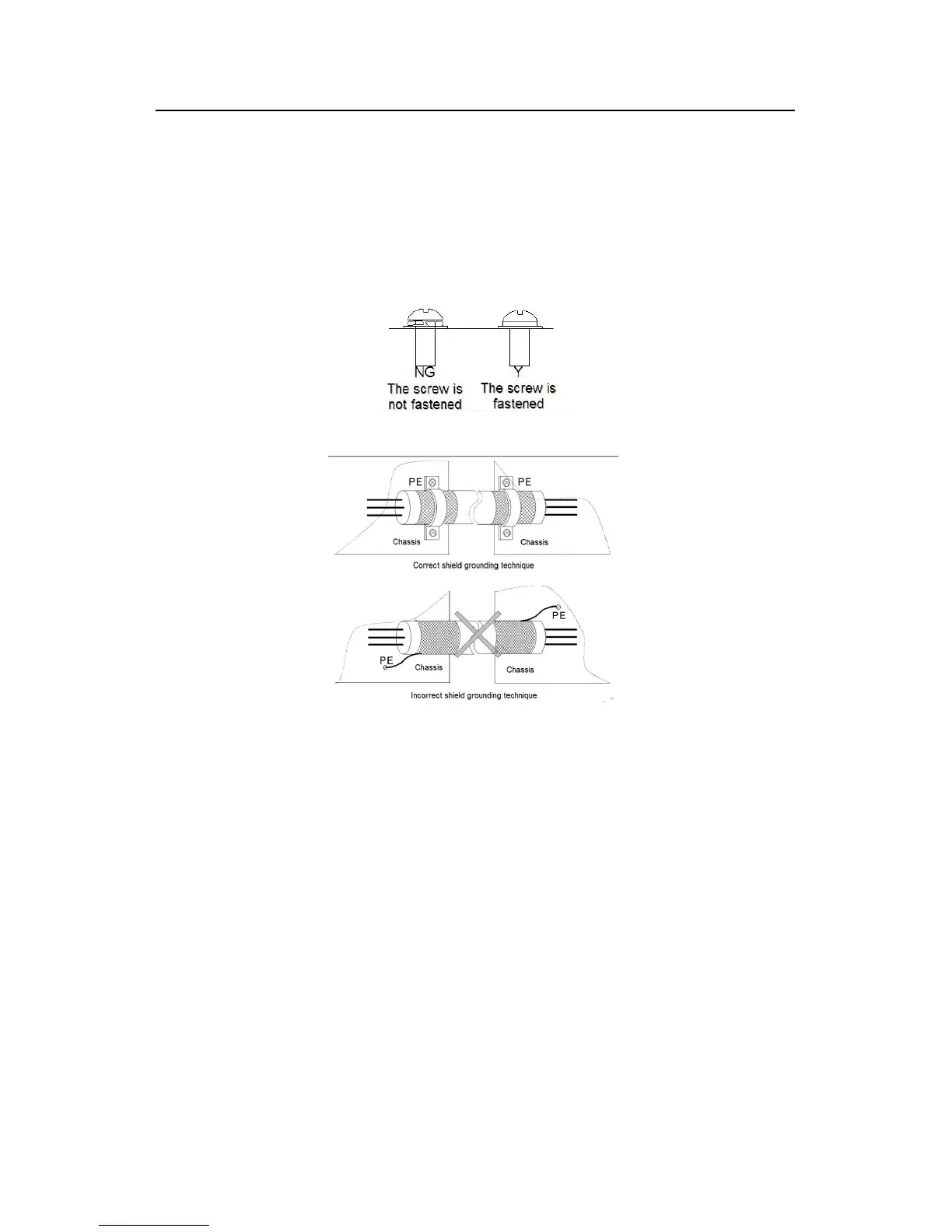

Fig 4-18 Correct installation of the screw
Fig 4-19 360 degree grounding technique
