INVT GD200A-0R7G-4 User Manual

GD200A series VFD Function parameters
-65-

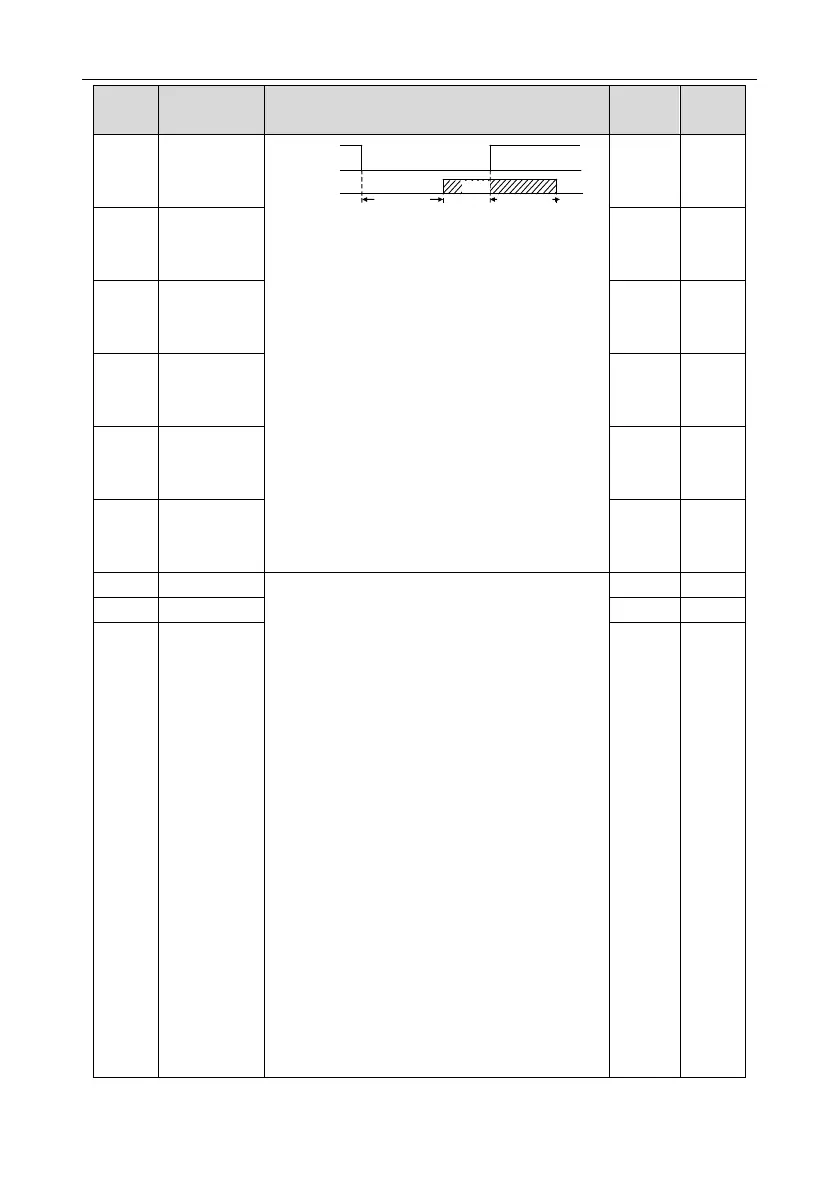

Function
code
Name
Description
Default
value
Modify
P06.08
HDO
switching-on
delay time
Y electric level
Y valid
Invalid
Switch on
delay
invalid
Valid
Switch off
delay
The setting range: 0.000–50.000s
Note: P06.08 and P06.09 are valid only when
P06.00=1.
0.000s
○
P06.09
HDO
switching-off
delay time
0.000s
○
P06.10
RO1
switching-on
delay time
0.000s
○
P06.11
RO1
switching-off
delay time
0.000s
○
P06.12
RO2
switching-on
delay time
0.000s
○
P06.13
RO2
switching-off
delay time
0.000s
○
P06.14
AO1 output
0: Running frequency
1: Setting frequency
2: Ramp reference frequency
3: Running rotation speed (relative to twice the
motor synchronization rotation speed)
4: Output current
(relative to twice the VFD rated current)
5: Output current
(relative to twice the motor rated current)
6: Output voltage (relative to 1.5 times the rated
voltage of the VFD)
7: Output power (relative to twice the rated power
of the motor)
9: Output torque (relative to twice the rated torque
of the motor)
10: Analog AI1 input value (implemented through
the analog potentiometer on the keypad for the
0150G/018P and lower models; not available for
the 018G/022P and higher models.)
11: Analog AI2 input value
12: Analog AI3 input value
0
○
P06.15
AO2 output
0
○
P06.16
HDO
high-speed
pulse output
selection
0
○
