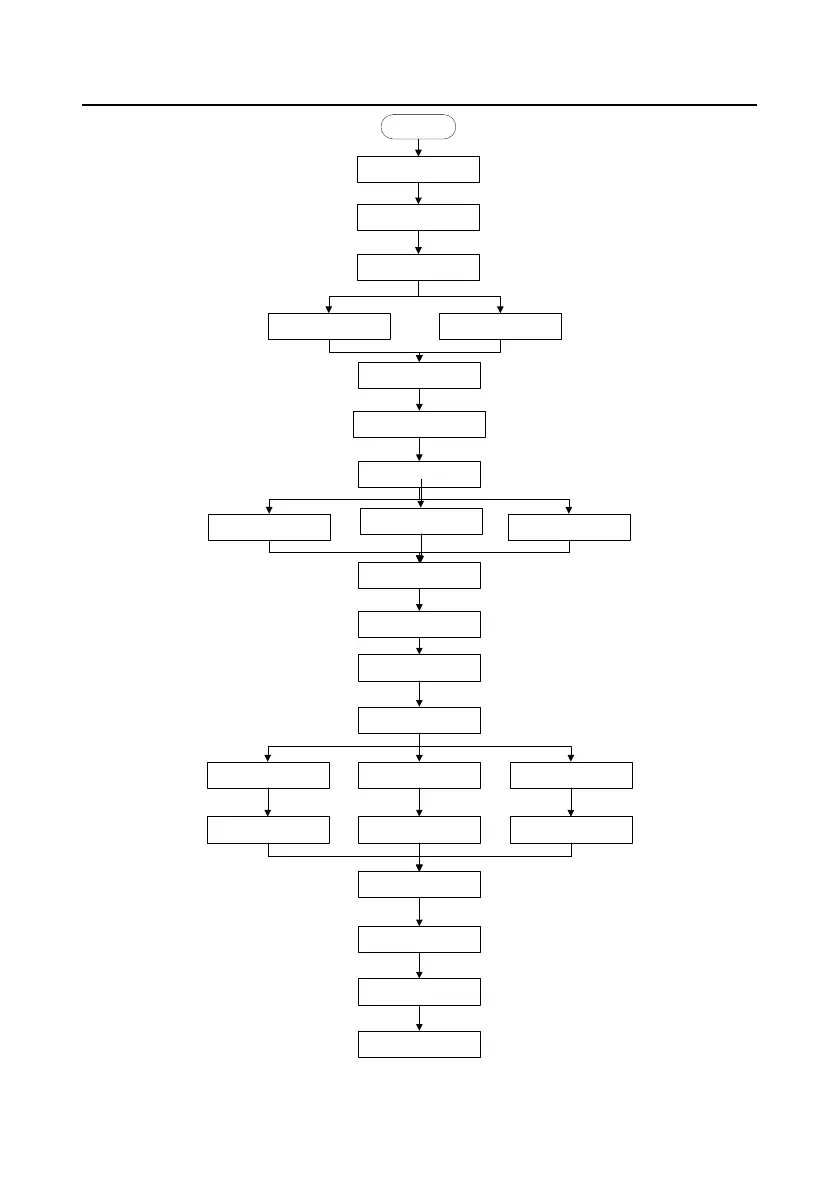

Start
Power on after right wiring
Restore to the factory
parameters（P00.18=1）
Motor type selection
（P02.00）
Set P02.01~P02.05 Set P02.15~P02.19
Press QUICK/JOG to jog
If the rotation direction is wrong, power
off to change the wires and repower on
Set autotuning
Set P00.15=1 to achieve
rotation autotuning
Set P00.15=3 to achieve
static autotuning 2
Press RUN to autotune
and then stop
Set running frequency
Set speed control mode
(P00.00)
P00.00=0 P00.00=1 P00.00=2
Set P03 group parameters Set P03 group parameters Set P04 group parameters
Set P01 group parameters
Run after a run command
is received
Stop after a stop
command is received
End
Set running command
channel (P00.01,P00.02)
Set P00.15=2 to achieve
static autotuning 1
To Next Page
