INVT Goodrive20-EU VFD Series - C.6 Filters: C2 Type and Installation

Goodrive20-EU series VFD Peripheral options and parts
157

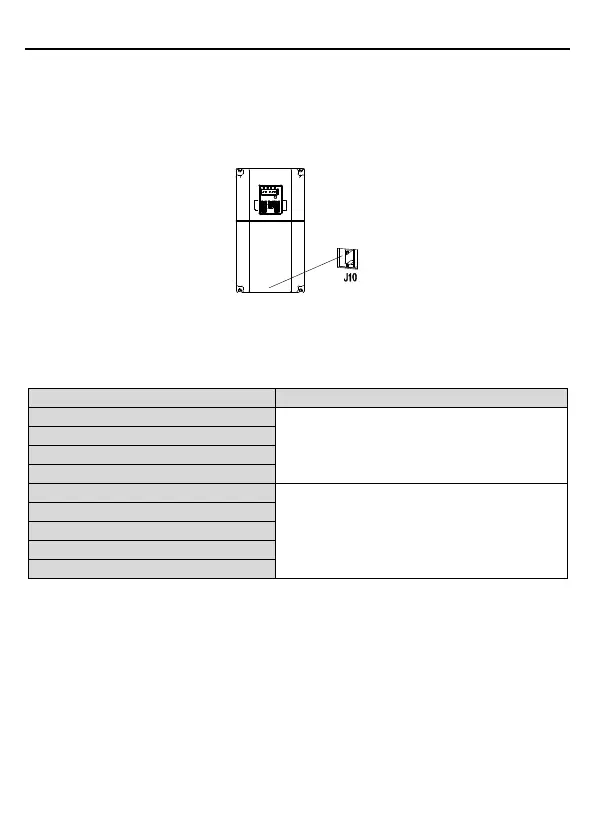

Note: Disconnect J10 when either of below situations occurs:
1. EMC filter is suitable for the neutral-grounding grid system. If it is used in IT grid system
(neutral point is not grounded), disconnect J10;
2. During configuring residual current circuit-breaker, if tripping occurred during startup,
disconnect J10.
Interference filter on input side: As the VFD may interfere with peripheral devices during
working, this filter can be used to reduce the interference.
Noise filter on output side: This filter can be used to reduce the radio noise caused between
the VFD and motor as well as the leakage current of the lead wires.
Model
Input filter
GD20-0R4G-S2-EU
FLT-PS2004L-C-G
GD20-0R7G-S2-EU
GD20-1R5G-S2-EU
GD20-2R2G-S2-EU
GD20-0R4G-2-EU
FLT-P04007L-C-G
GD20-0R7G-2-EU
GD20-0R7G-4-EU
GD20-1R5G-4-EU
GD20-2R2G-4-EU
Note:
1. The input EMI meet the requirement of C3 after adding input filters.
2. Above options are external, the customer should indicate when purchasing.
