Goodrive20-EU series VFD Installation guide
16
Note: the minimum space of A and B is 100mm if H is 36.6mm and W is 35.0mm.
(2) Wall and flange mounting for the VFDs (three phase 400V, ≥4KW and three phase 230V,
≥1.5KW)

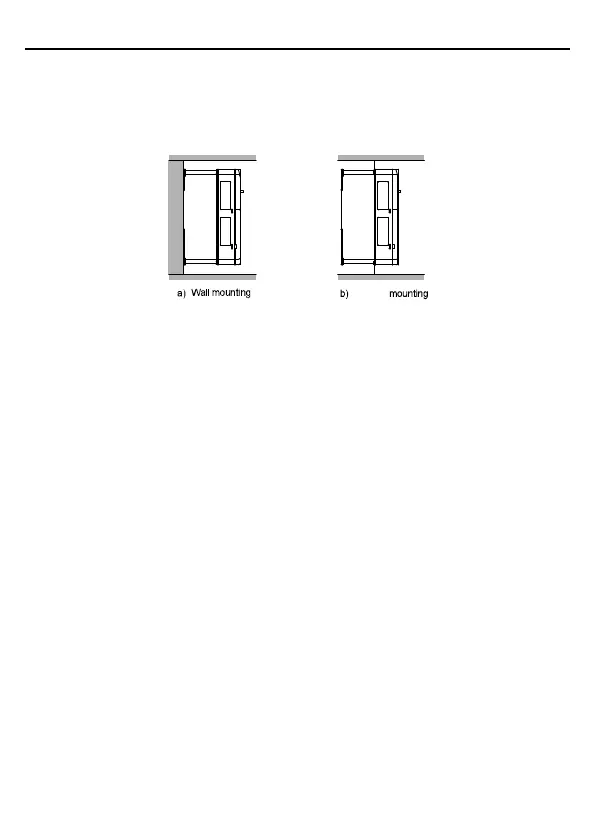

Figure 3-2 Installation
(1) Locate the position of the installation hole.
(2) Fix the screw or nut on the located position.
(3) Put the VFD against the wall.
(4) Tighten up the screws.
